Dell U2417H - Statement of Volatility
Summary
The Dell U2417H is an UltraSharp monitor with both volatile and non-volatile memory components. This statement of volatility documents non-volatile components including EEPROM for DP EDID and HDCP data, EEPROM for HDMI EDID, serial flash ROM for firmware, and DDR2 SDRAM for video data stream. It details data retention characteristics and remedial actions required to prevent data loss. Target users include security professionals, government agencies, and organizations requiring volatility assessment for data security compliance.

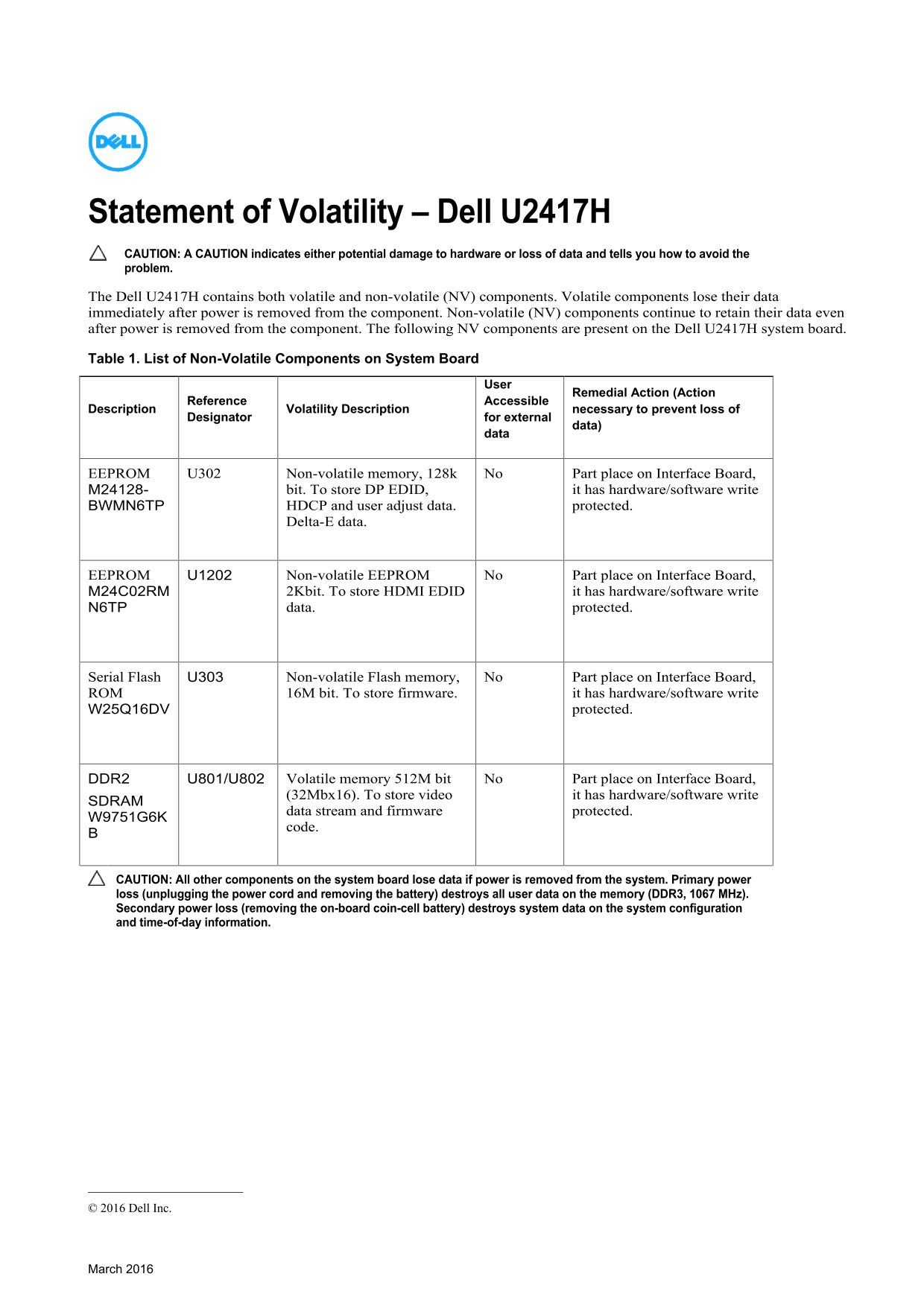

Page 1 Text Content
Statement of Volatility – Dell U2417H CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell U2417H contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell U2417H system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
EEPROM U302 Non-volatile memory, 128k No Part place on Interface Board,
M24128- bit. To store DP EDID, it has hardware/software write BWMN6TP HDCP and user adjust data. protected. Delta-E data.
EEPROM U1202 Non-volatile EEPROM No Part place on Interface Board,
M24C02RM 2Kbit. To store HDMI EDID it has hardware/software write N6TP data. protected.
Serial Flash U303 Non-volatile Flash memory, No Part place on Interface Board, ROM 16M bit. To store firmware. it has hardware/software write
W25Q16DV protected.
DDR2 U801/U802 Volatile memory 512M bit No Part place on Interface Board,
(32Mbx16). To store video it has hardware/software write
SDRAM
data stream and firmware protected.
code.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
© 2016 Dell Inc.
March 2016
