The Statement of Volatility for Dell Latitude E7240/E7440 documents the volatile and non-volatile components present on the system board. It details non-volatile components including embedded flash memory for BIOS code, panel EDID EEPROM, system BIOS flash, memory SPD EEPROM, RTC CMOS, and various other memory types. The document describes user accessibility for remedial actions and power state requirements for data retention. Target users are security professionals, auditors, and IT administrators responsible for data sanitization and hardware security compliance.
Page 1 Text Content

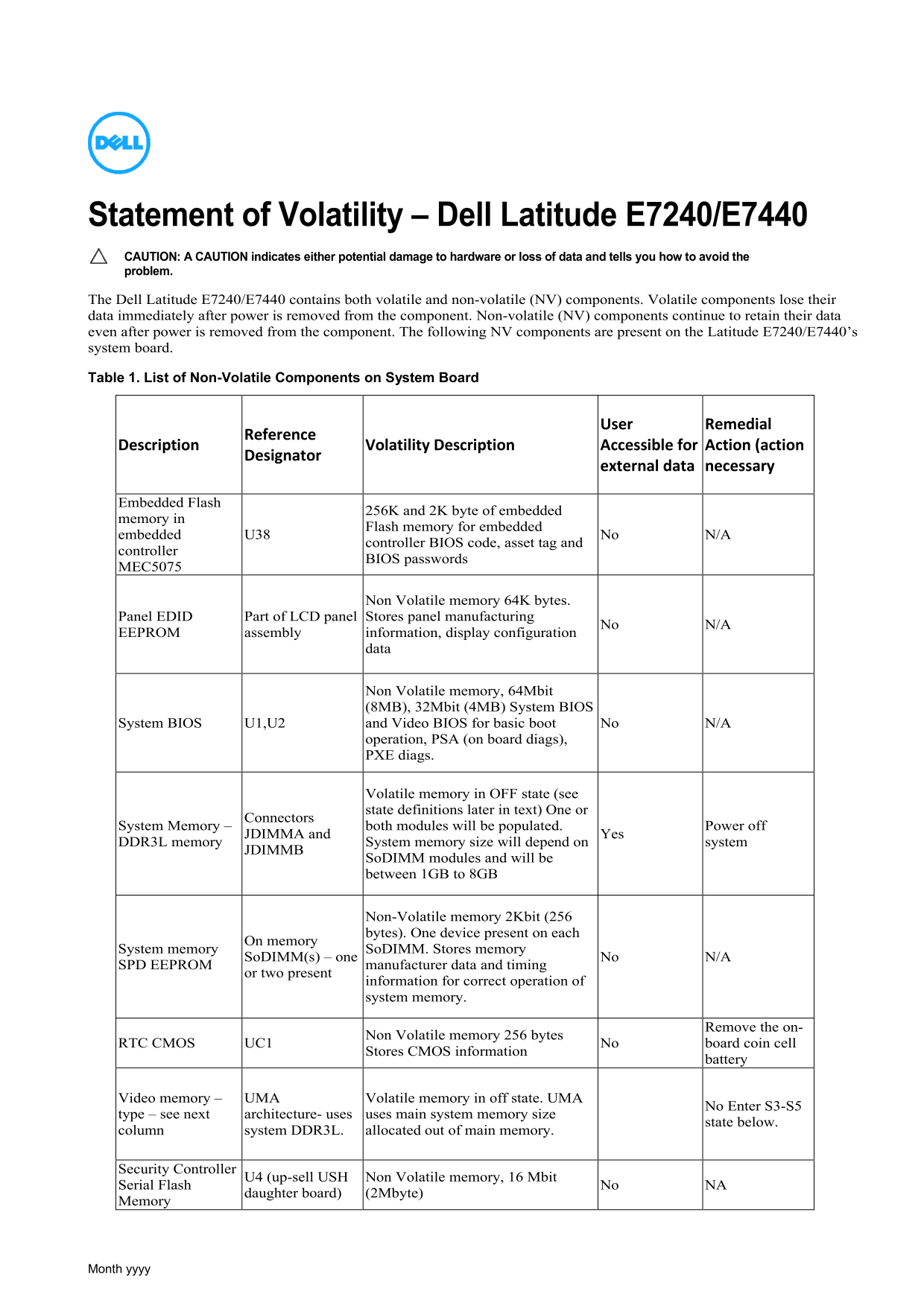

Statement of Volatility – Dell Latitude E7240/E7440 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Latitude E7240/E7440 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Latitude E7240/E7440’s system board. Table 1. List of Non-Volatile Components on System Board
User Remedial Description Reference Accessible for Action (action
Designator Volatility Description
external data necessary
Embedded Flash
256K and 2K byte of embedded
memory in
Flash memory for embedded
embedded U38 No N/A
controller BIOS code, asset tag and
controller
BIOS passwords
MEC5075
Non Volatile memory 64K bytes.
Panel EDID Part of LCD panel Stores panel manufacturing
No N/A
EEPROM assembly information, display configuration
Non Volatile memory, 64Mbit (8MB), 32Mbit (4MB) System BIOS
System BIOS U1,U2 and Video BIOS for basic boot No N/A
operation, PSA (on board diags), PXE diags.
Volatile memory in OFF state (see state definitions later in text) One or
Connectors
System Memory – both modules will be populated.
JDIMMA and Yes Power off
DDR3L memory System memory size will depend on system
JDIMMB
So DIMM modules and will be between 1GB to 8GB
Non-Volatile memory 2Kbit (256 bytes). One device present on each
On memory
System memory So DIMM. Stores memory
So DIMM(s) – one No N/A
SPD EEPROM manufacturer data and timing
or two present
information for correct operation of system memory.
Remove the on-
RTC CMOS UC1 Non Volatile memory 256 bytes board coin cell
Stores CMOS information No
battery
Video memory – UMA Volatile memory in off state. UMA
type – see next architecture- uses uses main system memory size No Enter S3-S5
state below.
column system DDR3L. allocated out of main memory.
Security Controller
U4 (up-sell USH Non Volatile memory, 16 Mbit
Serial Flash
daughter board) (2Mbyte) No NA
Memory
Month yyyy
Page Summary Contents For Dell Statement Of Volatility User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 111.54 KB |
| Published | June 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What state should I use if I want my system settings retained without losing all data?
Use the S4 'suspend to disk' (hibernate) mode, as the Operating System writes the context to non-volatile storage.
Which components on the board retain their data when primary power is lost?
Non-volatile (NV) components such as embedded flash and the RTC CMOS battery continue to retain user data even after power removal.
What is the difference between S3 and S4 sleep states?
S3 ('suspend to RAM') maintains dynamic RAM. S4 ('suspend to disk' or hibernate) saves context to non-volatile storage with no power.
If I remove the on-board coin cell battery, what data is lost?
Removing the secondary power source (coin-cell battery) destroys system data regarding the system configuration and time-of-day information.
