Page 1

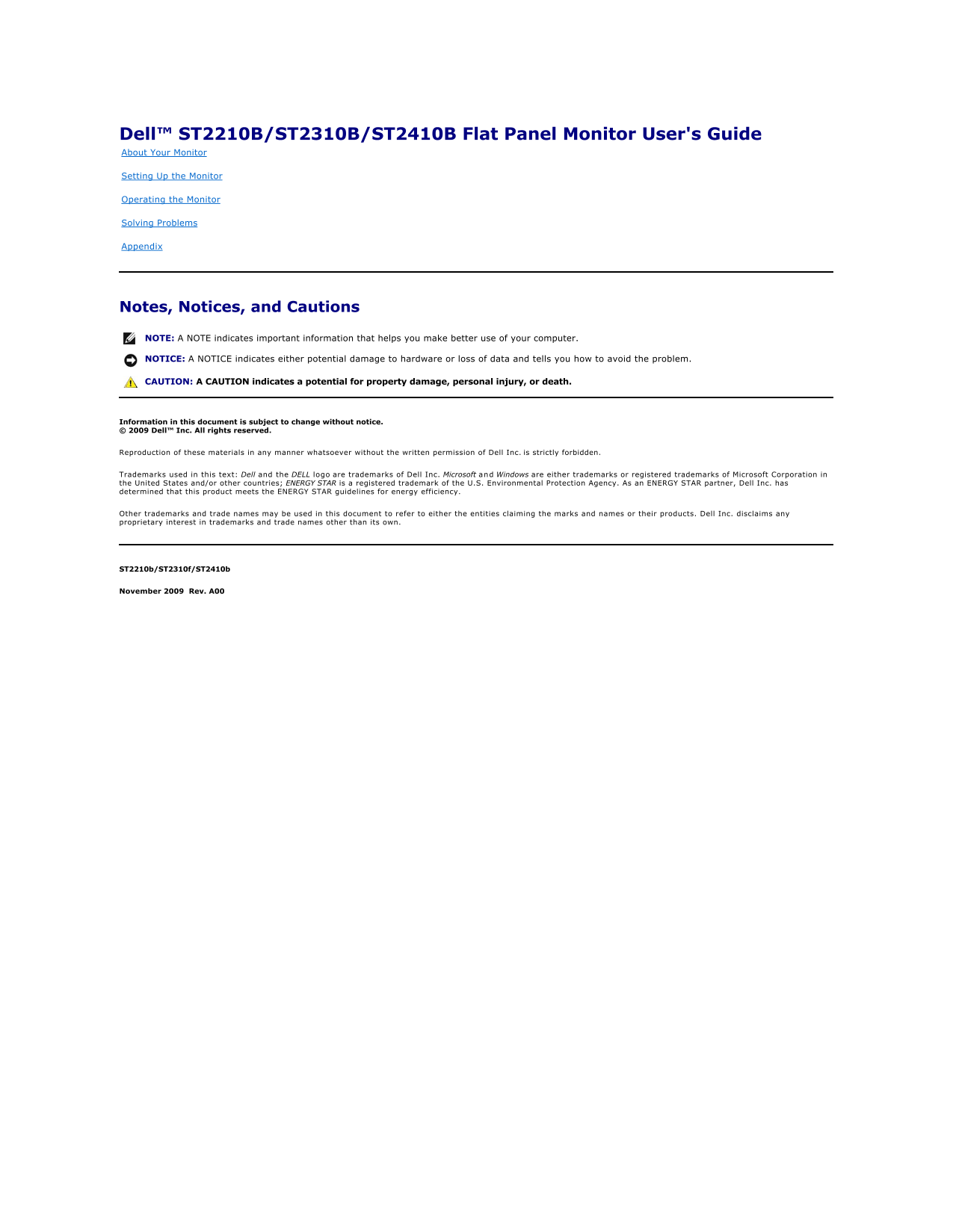

Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide About Your Monitor Setting Up the Monitor Operating the Monitor Solving Problems Appendix Notes, Notices, and Cautions NOTE: A NOTE indica...
Page 2
Back to Contents Page About Your Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide Package Contents Product Features Identifying Parts and Controls Monitor Specificati...
Page 3
include: ■ ST2210B: 21.5-inch (546.8 mm) viewable area display. ■ ST2310B: 23-inch (584.2 mm) viewable area display. ■ ST2410B: 24-inch (609.6 mm) viewable area display. ■ 1920 x 1080 resolution, plus...
Page 4
Back View Label Description/Use Barcode serial number label To contact Dell for technical support. Security lock slot To help sec...
Page 5
Bottom view Label Description 1 AC power cord connector DVI connector HDMI connector VGA connector Audio Line-in 6 Audio Line out Monitor Specifications Power Management Modes If you have VESA's DPMS™...
Page 6
Pin Assignments VGA Connector Pin 15-pin Side of the Number Connected Signal Cable 1 Video-Red 2 Video-Green 3 Video-Blue 4 GND 5 Self-test 6 GND-R 7 GND-G 8 GND-B 9 Computer 5V/3.3V 10 GND-sync 11 ...
Page 7
Floating +5V power Self test Hot Plug Detect TMDS RX0- TMDS RX0+ TMDS Ground Floating Floating TMDS Ground TMDS Clock+ TMDS Clock- HDMI Connector Pin Number 19-pin Side of the Connected Signal Cable ...
Page 8
Dymanic contrast ratio 50,000 to 1 (typical) 50,000 to 1 (typical) Faceplate coating Antiglare with hard-coating 3H Antiglare with hard-coating 3H Backlight 2 CCFLs edgelight system 2 CCFLs edgelight ...
Page 9
120 V: 30 A (Max.) Inrush iso surge current 240 V: 60 A (Max.) Physical Characteristics Model ST2210B ST2310B ST2410B D-sub: Blue connector D-sub: Blue connector D-sub: Blue connector DVI-D: White con...
Page 10
LCD Monitor Quality & Pixel Policy During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pix...
Page 11
Back to Contents Page Appendix Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide Safety Instructions FCC Notice (U.S. Only) and Other Regulatory Information Contacting Dell CAUTION:...
Page 12
Back to Contents Page Setting Up Your Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to http://support.de...
Page 13
Back to Contents Page Setting Up Your Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor If you have a non Dell™ desktop, portable computer, or graphics card 1. Right-click on the desktop and c...
Page 14
Back to Contents Page Operating the Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide Using the Front Panel Controls Using the On-Screen Display (OSD) Menu Setting the Maximu...
Page 15
Or Main Menu for non Analog (non VGA) Input NOTE: Auto Adjust is only available when you are using the analog (VGA) connector. 2. Press the and buttons to move between the setting options. As you mov...
Page 16
Brightness Brightness adjusts the luminance of the backlight. Press the button to increase the brightness and Press the button to decrease the brightness (min 0 ~ max 100). Contrast Adjust the Brigh...
Page 17
VGA Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source. DVI-D Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI...
Page 18
Movie Mode suitable for movie playback. Game Mode suitable for game applications. Sports Mode suitable for sports scenes. Nature Mode suitable for nature scenes. Hue This feature can make the video im...
Page 19
Wide Mode Adjusts the image ratio as 4:3 or full screen. NOTE: Wide Mode adjustment is not required at maximum preset resolution 1920 x 1080. Horizontal Position Use the and buttons to adjust image le...
Page 20
Line Out Source Select the source of the audio Power Save Audio Turns the Audio Power on or off during power save mode. Reset Audio Settings Resets the audio settings to the original factory setting...
Page 21
LCD Conditioning If an image appears to be retained on the monitor, select LCD Conditioning to help eliminate any image retention. Using the LCD Conditioning feature may take several hours. Severe cas...
Page 22
OSD Warning Messages When the monitor does not support a particular resolution mode you will see the following message : This means that the monitor cannot synchronize with the signal that it is recei...
Page 23
If VGA/DVI/HDMI input is selected and both VGA, DVI and HDMI cable are not connected, a floating dialog box as shown below appears. See Solving Problems for more information. Setting the Maximum Resol...
Page 24
1. Attach mechanism 2. Headphone connectors 3. Power indicator 4. Power/Volume control Using the Tilt Tilt With the built-in pedestal, you can tilt the monitor for the most comfortable viewing angle....
Page 25
Back to Contents Page Setting Up Your Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor Important instructions to set the display resolution to 1920x1080 (Maximum) For optimal display performa...
Page 26
Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User Guide Important instructions to set the display resolution to 1920x1080 (Maximum) Information in this document is subject to change without notic...
Page 27
Back to Contents Page Setting Up the Monitor Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide Attaching the Base Connecting the Monitor Attaching the Soundbar (Optional) Removing ...
Page 28
Connecting the HDMI Cable* NOTE: *Optional purchase item. To purchase DVI or HDMI cable, please visit Dell.com NOTE: The Graphics are used for the purpose of illustration only. Appearance of the the c...
Page 29
After placing the monitor panel on a soft cloth or cushion, complete the following steps to remove the base. 1. Loosen the screw on the bottom of the base. 2. Detach the base away from the monitor. Ba...
Page 30
Back to Contents Page Solving Problems Dell™ ST2210B/ST2310B/ST2410B Flat Panel Monitor User's Guide Self-Test Built-in Diagnostics Common Problems Product-Specific Problems Troubleshooting...
Page 31
4. Carefully inspect the screen for abnormalities. 5. Press the shortcut button 4 key on the front panel again. The color of the screen changes to red. 6. Inspect the display for any abnormalities. 7....
Page 32
Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feature check and determine if these lines are also in self-test mode. Check for bent or broken pins in the video cable connect...
Page 33
Decrease the volume of the audio application. Turn the volume down. Clean and reseat the audio line-in plug. Troubleshoot the computer's sound card. Test the Soundbar using another audio source (i.e.,...
