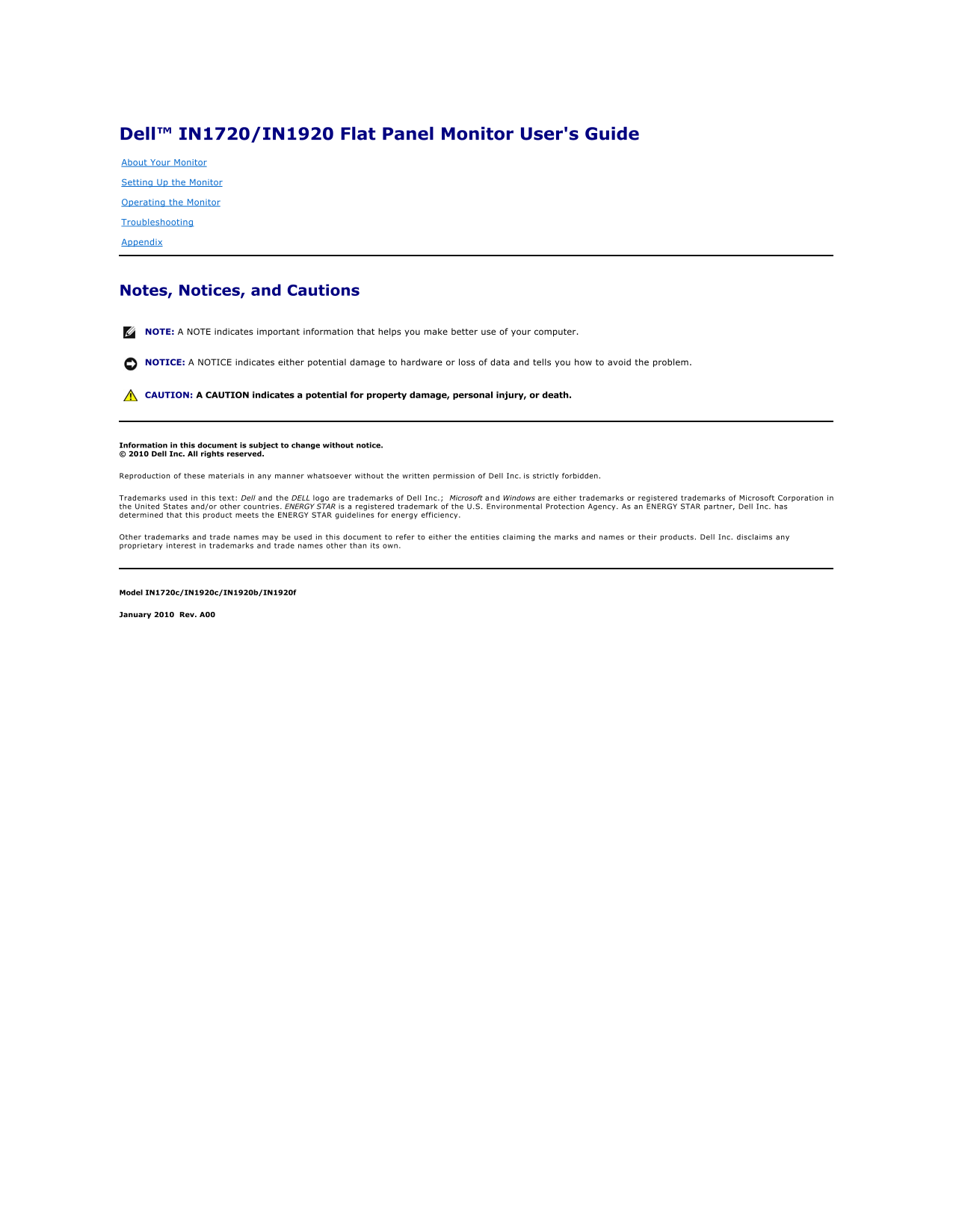

Page 1
Dell™ IN1720/IN1920 Flat Panel Monitor User's Guide About Your Monitor Setting Up the Monitor Operating the Monitor Troubleshooting Appendix Notes, Notices, and Cautions NOTE: A NOTE indicates importa...
Page 2
Back to Contents Page About Your Monitor Dell™ IN1720/IN1920 Flat Panel Monitor User's Guide Package Contents Product Features Identifying Parts and Controls Monitor Specifications Plug a...
Page 3
Product Features The Dell™ IN1720/IN1920 flat panel display has an active matrix, Thin-film Transistor, Liquid Crystal Display. The monitors features include: ■ IN1720: 17-inch (433.0 mm) viewable are...
Page 4
Label Description Use 1 Barcode serial number label Refer to this label if you need to contact Dell for technical support. 2 Regulatory rating label List the regulatory approvals. VESA mounting holes ...
Page 5
Monitor Specifications The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor. Power Management Modes If yo...
Page 6
10 GND-sync 11 GND 12 DDC data 13 H-sync 14 V-sync 15 DDC clock Plug and Play Capability You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the comp...
Page 7
Analog RGB: 0.7 Volts +/-5%, 75 ohm input Video input signals impedance Separate horizontal and vertical Synchronization input signals synchronizations, polarity-free TTL level, SOG (Composite SYNC o...
Page 8
Height 4.72 inches (119.96 mm) 4.91 inches (124.71 mm) Width 8.66 inches (219.92 mm) 9.84 inches (249.94 mm) Depth 6.17 inches (156.67 mm) 6.13 inches (155.70 mm) Weight with packaging 8.75 lbs (3.97 ...
Page 9
Back to Contents Page
Page 10
Back to Contents Page Appendix Dell™ IN1720/IN1920 Flat Panel Monitor User's Guide Safety Instructions FCC Notice (U.S. Only) and Other Regulatory Information Contacting Dell CAUTION: Safety Ins...
Page 11
Back to Contents Page Setting Up Your Monitor Dell™ IN1720/IN1920 Flat Panel Monitor If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to http://support.dell.com, en...
Page 12
Back to Contents Page Setting Up Your Monitor Dell™ IN1720/IN1920 Flat Panel Monitor If you have a non Dell™ desktop, portable computer, or graphics card 1. Right-click on the desktop and click Proper...
Page 13
Back to Contents Page Operating the Monitor Dell™ IN1720/IN1920 Flat Panel Monitor User's Guide Using the Front Panel Controls Using the On-Screen Display (OSD) Menu Setting the Maximum Resoluti...
Page 14
Use the Exit key to exit on-screen display (OSD) from menu and sub-menus. Front panel Key Use the keys on the front of the monitor to adjust the image settings. Front panel Key Description ...
Page 15
2. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted. 3. To select the highlighted item on the menu press the button aga...
Page 16
Auto Adjustment allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) cont...
Page 17
Standard: Loads the monitor's default color settings. This is the default preset mode. Multimedia: Loads color settings ideal for multimedia applications. Game: Loads color settings ideal for most gam...
Page 18
DISPLAY SETTINGS Use the Displays Settings menu to adjust the monitor's display settings. Press to go back to the main menu. Horizontal Position Press to go back to the main menu. Horizontal Position...
Page 19
Press to go back to the main menu. Language Allows you to set the OSD display to one of eight languages: English, Spanish, French, German, Japanese, Brazilian Portuguese, Simplified Chinese or Russian...
Page 20
Factory Reset Resets all OSD settings to the factory preset values. Personalize Allows you to adjust shortcut key for: 1. Preset modes, 2. Brightness / Contrast, 3. Auto Adjust. Press to go back to th...
Page 21
This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the horizontal and vertical frequency ranges addressable by this m...
Page 22
The Dell Soundbar is a stereo two channel system, mountable on Dell Flat Panel Displays. The Soundbar has a rotary volume and on/off control to adjust the overall system level, a LED for power indicat...
Page 23
Back to Contents Page Setting Up Your Monitor Dell™ IN1720/IN1920 Flat Panel Monitor Setting the display resolution to 1440 x 900 (for IN1720) or 1366 x 768 (for IN1920) (Maximum) For optimal display ...
Page 24
Dell™ IN1720/IN1920 Flat Panel Monitor User Guide Setting the display resolution to 1440 x 900 (for IN1720) or 1366 x 768 (for IN1920)(Maximum) Information in this document is subject to change witho...
Page 25
Back to Contents Page Setting Up the Monitor Dell™ IN1720/IN1920 Flat Panel Monitor User's Guide Attaching the Stand Connecting Your Monitor Removing the Stand Base Attaching the Dell Soundb...
Page 26
CAUTION: The graphics are used for the purpose of illustration only. Appearance on the computer may vary. Removing the Stand Base IN1720: IN1920:
Page 27
To remove stand base from the monitor: 1. Place the monitor panel on soft cloth or cushion on a stable flat table. 2. Press and hold the release latch, while pulling the stand base away from the monit...
Page 28
To remove the stand assembly from the monitor: 1. Place the monitor panel on soft cloth or cushion on a stable flat table. 2. Remove the three screws on the stand of the monitor as shown above. 3. Rem...
Page 29
Back to Contents Page Troubleshooting Dell™ IN1720/IN1920 Flat Panel Monitor Self-Test Common Problems Product Specific Problems CAUTION: Before you begin any of the procedures in this section, ...
Page 30
To run the built-in diagnostics: 1. Ensure that the screen is clean (no dust particles on the surface of the screen). 2. Unplug the video cable from the back of the computer or monitor. The monitor th...
Page 31
Wrong Color Picture color not good Change the Color Setting Mode in the Color Settings OSD to Graphics or Video depending on the application. Try different Color Preset Settings in Color Settings OSD....
