Page 1

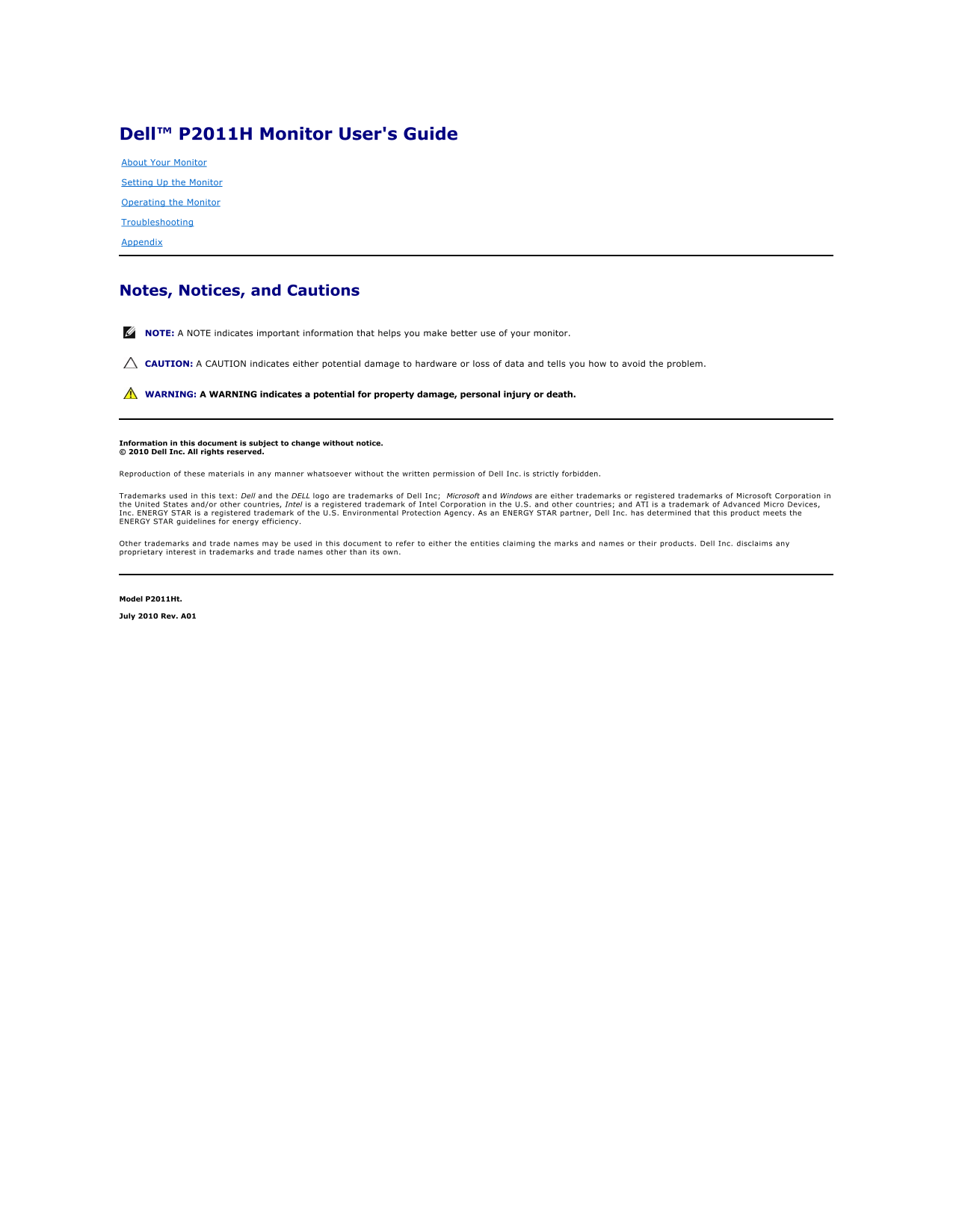

Dell™ P2011H Monitor User's Guide About Your Monitor Setting Up the Monitor Operating the Monitor Troubleshooting Appendix Notes, Notices, and Cautions NOTE: A NOTE indicates important information tha...
Page 2
Back to Contents Page About Your Monitor Dell™ P2011H Monitor User's Guide Package Contents Product Features Identifying Parts and Controls Monitor Specifications Plug and Play Capability Universal Se...
Page 3
DVI Cable USB up stream cable (enables the USB ports on the monitor) Drivers and Documentation media Quick Setup Guide Product and Safety Information Guide Product Features The Dell™ Professional P201...
Page 4
Front View Front panel controls Label Description Preset Modes (default, but configurable) Brightness & Contrast (default, but configurable) Menu Exit Power button (with power light indicator) Bac...
Page 5
Cable management slot Use to organize cables by placing them through the slot. Side View Left view Right view Bottom View Bottom view Bottom view with monitor stand Label Description Use AC power ...
Page 6
Screen dimensions 50.8 cm (20-inch viewable image size) Preset display area: 462.8 (H) x 272.0(V) mm Horizontal 462.8 mm (18.22 inches) Vertical 272.0 mm (10.71 inches) Pixel pitch 0.277 mm Viewing an...
Page 7
Horizontal scan range 30 k Hz to 83 k Hz (automatic) Vertical scan range 56 Hz to 75 Hz (automatic) Maximum resolution 1600 X 900 at 60 Hz Video Supported Modes Model P2011H Video display capabilities...
Page 8
Electrical Specifications Model P2011H Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance Video input signals Digital DVI-D TMDS, 600m V for each differential line, positive pola...
Page 9
(For wall mount or VESA mount 2.70 kg (5.94 lb) considerations - no cables) Weight of stand assembly 1.70 kg (3.74 lb) Environmental Characteristics Model P2011H Temperature Operating 0° to 40 ° C St...
Page 10
Storage: 5% to 90% (non-condensing) Non-operating Shipping: 5% to 90% (non-condensing) Altitude Operating 4,850 m (15,902 ft) max Non-operating 12,192 m (40,000 ft) max 153.65 BTU/hour (maximum) Therm...
Page 11
Back to Contents Page Appendix Dell™ P2011H Monitor User's Guide Safety Instructions FCC Notice (U.S. Only) and Other Regulatory Information Contacting Dell WARNING: Safety Instructions WARNING: Us...
Page 12
Back to Contents Page Help on Power Nap Installation To install Power Nap succesfully, follow these steps:- 1. Check Operating System Requirements Windows XP, Windows Vista®, Windows® 7 2. Install E...
Page 13
Back to Contents Page Setting Up Your Monitor Dell™ P2011H Monitor If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to http://support.dell.com, enter your service t...
Page 14
Back to Contents Page Setting Up Your Monitor Dell™ P2011H Monitor If you have non Dell™ desktop, portable computer, or graphic card In Windows XP: 1. Right-click on the desktop and click Properties....
Page 15
Back to Contents Page Operating the Monitor Dell™ P2011H Monitor User's Guide Using the Front Panel Controls Using the On-Screen Display (OSD) Menu Power Nap Software Setting the Maximum Resol...
Page 16
Use the Power button to turn the monitor on and off. The Blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode. Power (with power light indicator) Us...
Page 17
Brightness/Contrast Use this menu to activate Brightness/Contrast adjustment. Brightness Brightness adjusts the luminance of the backlight. Press the button to increase brightness and Press the button...
Page 23
AUTO ADJUST Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for use with your particular setup. Auto Adjustment allows the mon...
Page 24
INPUT SOURCE Use the INPUT SOURCE menu to select between different video signals that may be connected to your monitor. Auto Select Select Auto Select to scan for available input signals. VGA Selec...
Page 25
When you select Video, you can choose Movie, Game, Sports, or Nature: Movie: Loads color settings ideal for movies. This is the default preset mode. Game: Loads color settings ideal for games. Sports:...
Page 26
Display Setting submenu for DVI-D input Wide Mode Adjust the image ratio as 4:3 or full screen. Horizontal Position Use the and buttons to adjust image left and right. Minimum is '0' (-). Maximu...
Page 28
Back to Contents Page Setting Up Your Monitor Dell™ P2011H Monitor Setting the display resolution to 1600 X 900 (maximum) For maximum display performance while using the Microsoft Windows operating s...
Page 29
Dell™ P2011H Monitor User Guide Setting the display resolution to 1600 X 900 (maximum) Information in this document is subject to change without notice. © 2010 Dell Inc. All rights reserved Reproduct...
Page 30
Back to Contents Page Setting Up the Monitor Dell™ P2011H Monitor User's Guide Attaching the Stand Connecting the Monitor Organizing the Cables Attaching the Soundbar (Optional) Removing the...
Page 31
Connecting the Blue VGA Cable CAUTION: The graphics are used for the purpose of illustration only. Appearance of the computer may vary. Connecting the USB cable After you have completed connecting the...
Page 32
After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the cable management slot to organize all cables as shown above. Attaching th...
Page 33
(Screw dimension: M4 x 10 mm). Refer to the instructions that come with the VESA-compatible base mounting kit. 1. Place the monitor panel on a soft cloth or cushion on stable flat table. 2. Remove the...
Page 34
Back to Contents Page Troubleshooting Dell™ P2011H Monitor User's Guide Troubleshooting Your Monitor Built-in Diagnostics Common Problems Product Specific Problems Universal Serial Bus Spec...
Page 35
To run the built-in diagnostics: 1. Ensure that the screen is clean (no dust particles on the surface of the screen). 2. Unplug the video cable(s) from the back of the computer or monitor. The monitor...
Page 36
Horizontal/Vertical Lines Screen has one or more lines Reset the monitor to Factory Settings. Perform Auto Adjust via OSD. Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feat...
Page 37
Dell™ Soundbar Problems Common Symptoms What You Experience Possible Solutions No Sound No power to Soundbar - the Turn the Power/Volume knob on the Soundbar clockwise to the middle position; check if...
