Dell S2719HS Monitor Teardown Instructions
Summary
This service manual provides detailed disassembly procedures for the Dell S2719HS monitor, intended for authorized service technicians. It covers step-by-step teardown starting with carton unboxing and accessory removal, rear cover release using finger wedging at corners, USB FFC cable disconnection, and progressive screw removal (M4x10, M3x6 with specified torque values) for the USB board unit and middle bezel. The guide includes labeled screw references (S1-S11) and arrow-preferral unlocking s
Page 1 Text Content
DELL S2719HS
Go to contents page

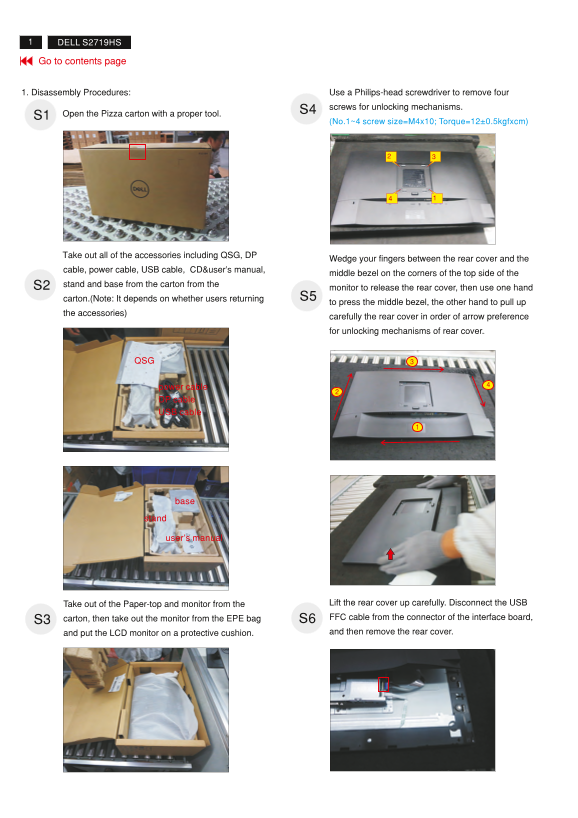

1. Disassembly Procedures: Use a Philips-head screwdriver to remove four screws for unlocking mechanisms. S4S1
Open the Pizza carton with a proper tool.
(No.1~4 screw size=M4x10; Torque=12±0.5kgfxcm)
Take out all of the QSG,accessories including DP
Wedge your fingers between the rear cover and the
cable, power cable, USB cable, CD&user’s manual,
middle bezel on the corners of the top side of the
S2 stand and base from the carton from the
monitor to release the rear cover, then use one hand carton.(Note: It depends on whether users returning S5 to press the middle bezel, the other hand to pull up
the accessories)
carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover..
power cable DP cable USB cable
stand
user’s manual
Take out of the Paper-top and monitor from the Lift the rear cover up carefully. Disconnect the USB carton, then take out the monitor from the EPE bag S6 FFC cable from the connector of the interface board,
and put the LCD monitor on a protective cushion. and then remove the rear cover.
