Dell S2719DC Monitor Teardown Instructions
Summary
This document provides disassembly procedures for the Dell S2719DC monitor for service technicians. It includes step-by-step instructions for removing the stand, base, rear cover, bezel, panel module, and internal components. The manual specifies screw sizes, torque values, and required tools. Target users are authorized Dell service technicians performing repairs.
Page 1 Text Content
DELL S2719DC

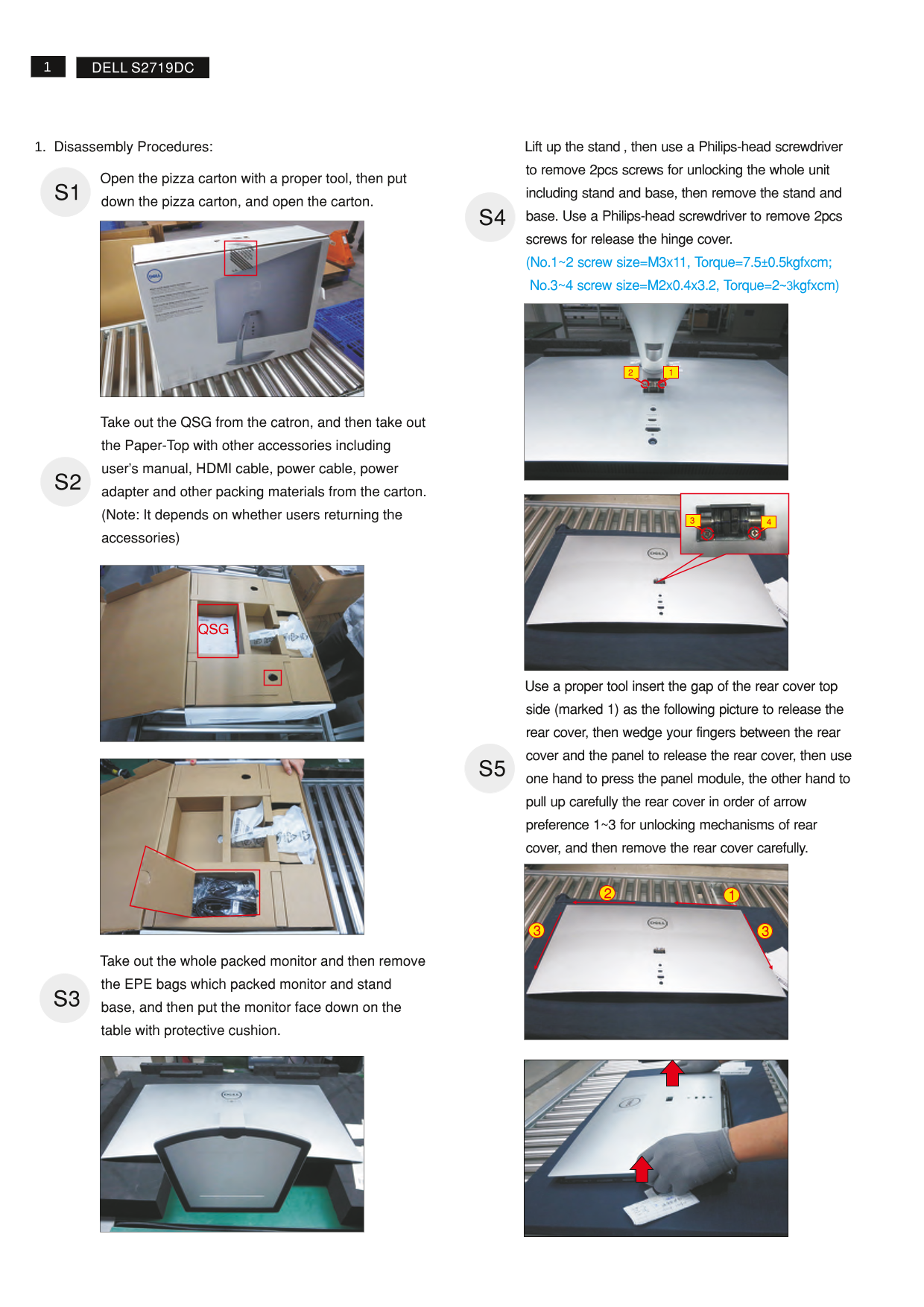

1. Disassembly Procedures: Lift up the stand , then use a Philips-head screwdriver
to remove 2pcs screws for unlocking the whole unit
Open the pizza carton with a proper tool, then put
S1 including stand and base, then remove the stand and
down the pizza carton, and open the carton.
S4 base. Use a Philips-head screwdriver to remove 2pcs screws for release the hinge cover. (No.1~2 screw size=M3x11, Torque=7.5±0.5kgfxcm; No.3~4 screw size=M2x0.4x3.2, Torque=2~3kgfxcm)
Take out the QSG from the catron, and then take out
the Paper-Top with other accessories including user’s manual, HDMI cable, power cable, power S2 adapter and other packing materials from the carton. (Note: It depends on whether users returning the accessories)
Use a proper tool insert the gap of the rear cover top
side (marked 1) as the following picture to release the rear cover, then wedge your fingers between the rear cover and the panel to release the rear cover, then use S5 one hand to press the panel module, the other hand to pull up carefully the rear cover in order of arrow preference 1~3 for unlocking mechanisms of rear cover, and then remove the rear cover carefully.
Take out the whole packed monitor and then remove
the EPE bags which packed monitor and stand S3 base, and then put the monitor face down on the table with protective cushion.
