Dell S2421NX Monitor Teardown Instructions

Summary

Disassembly procedure guide for the Dell S2421HN and S2421NX monitors, providing step-by-step teardown instructions with specified screw sizes and torque values (M4x11 at 7-8 kgfxcm, M3x4 at 3-4 kgfxcm, M2x3.3 at 1 kgfxcm). Covers rear cover removal via corner wedge technique, function key cable and panel lamp cable disconnection, middle bezel separation with 16 screws, and front bezel release from panel module. Intended for service technicians performing component-level repairs.

📄 Preview PAGE OF 5

Page 1 Text Content

S2421HN/NX

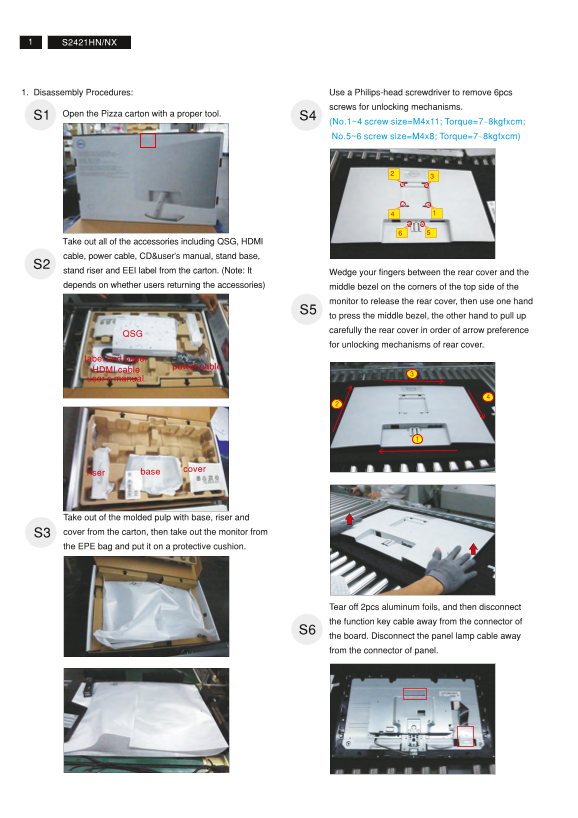

1. Disassembly Procedures: Use a Philips-head screwdriver to remove 6pcs screws for unlocking mechanisms.

Open the Pizza carton with a proper tool.

S4S1 (No.1~4 screw size=M4x11; Torque=7 8kgfxcm; No.5~6 screw size=M4x8; Torque=7 8kgfxcm)

Take out all of the QSG,accessories including HDMI

cable, power cable, CD&user’s manual, stand base, S2 stand riser and EEI label from the carton. (Note: It Wedge your fingers between the rear cover and the depends on whether users returning the accessories) middle bezel on the corners of the top side of the

monitor to release the rear cover, then use one hand S5 to press the middle bezel, the other hand to pull up carefully the rear cover in order of arrow preference

for unlocking mechanisms of rear cover..

label and paper

power cable

HDMI cable user’s manual

cover

riser

Take out of the molded pulp with base, riser and cover S3 from the carton, then take out the monitor from the EPE bag and put it on a protective cushion.

Tear off 2pcs aluminum foils, and then disconnect the function key cable away from the connector of S6 the board. Disconnect the panel lamp cable away from the connector of panel.

Page Summary Contents For Dell S2421NX Monitor Teardown Instructions

Page 1 S2421HN/NX 1. Disassembly Procedures: Use a Philips-head screwdriver to remove 6pcs screws for unlocking mechanisms. Open the Pizza carton with a proper tool. S4S1 (No.1~4 screw size=M4x11; Torque=7 8...
Page 2 2S2421HN/NX Use a Philips-head screwdriver to remove 16pcs screws for unlocking the middle bezel. S7 (No.1~11 screw size=M3x4, Torque=3~4kgfxcm; No.12~16 screw size=M2x3.3, Torque=1±0.2kgfxcm) ift up ...
Page 3 S2421HN/NX Take away the bracket chassis module and then put S12 the bracket chassis module on a protective cushion. Remove the interface board and power board from S15 the bracket chassis module care...
Page 4 4S2421HN/NX Remove electrolyte capacitors (red mark) from S16-4 Take out bulk cap. pin solder with soldering iron and printed circuit boards. absorber. S16-1 Cut the glue between bulk cap. and PCB wit...
Page 5 S2421HN/NX 2. Product material information The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Counci...
