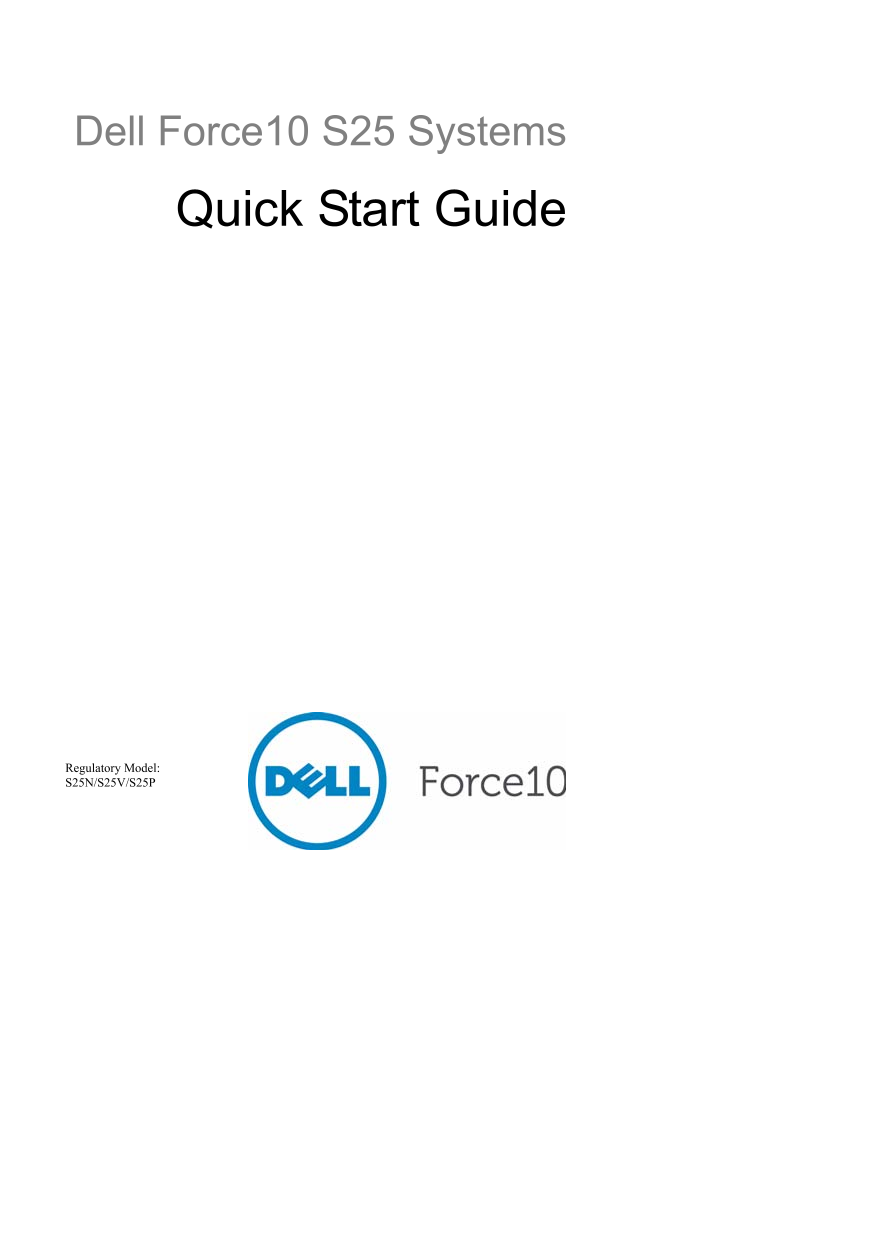

Dell Force10 S25 Systems
Quick Start Guide
Regulatory Model: S25N/S25V/S25P
Page Summary Contents For Dell Quick Start Guide for the S25 System
Page 1
Dell Force10 S25 Systems Quick Start Guide Regulatory Model: S25N/S25V/S25P
Page 3
Dell Force10 S25 Systems Quick Start Guide Regulatory Model: S25N/S25V/S25P
Page 4
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if...
Page 5
About this Guide This document is intended as a Quick Start Guide to get new systems up and running and ready for configuration. For complete installation and configuration information, refer to the f...
Page 6
About this Guide
Page 7
Installing the Hardware This guide assumes all site preparation has been performed before installing the chassis. Installing the Chassis in a Rack or Cabinet To install the S25N, S25V, or S25P system,...
Page 8
Step Task Dell Force10 recommends that one person hold the chassis in place while a second person attaches the brackets to the posts. Position the unit in the rack. Secure the unit with two of the sup...
Page 9
Attach a Ground Cable to the System CAUTION: To prevent electrical shock, make sure the switch is grounded properly. If you do not ground your equipment correctly, excessive emissions can result. Use ...
Page 10
CAUTION: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the chassis and its components. WARNING: Fo...
Page 11
Installing XFPs CAUTION: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the chassis and its compone...
Page 12
Power Up Sequence Supply Power and Power Up the System There is no power switch. Supply power to the unit only after it is mounted. CAUTION: To prevent electrical shock, make sure the switch is ground...
Page 13
Step Task Connect the -48 V and -48 V RTN (Return) cables to the switch terminals and then to the remote power sources. Replace the safety covers on the DC terminal block. S25P The S25P has two AC pow...
Page 14
CAUTION: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the system and its components. Power Suppli...
Page 15
Specifications Chassis Physical Design Parameter S25N/V Specifications S25P Specifications Height 1.73 inches (4.4 cm) 1.73 inches (4.4 cm) Width 17.32 inches (44.0 cm) (19" 17.32 inches (44.0 cm...
Page 16
Parameter S25N/V Specifications S25P Specifications ISO 7779 A-weighted S25N: 42.0 d BA at 73.4°F 45.1 d BA at 73.4°F (23°C) sound pressure level (23°C) S25V: 42.9 d BA at 73.4°F (23°C) Power Requirem...
Page 17
Installing the Software Navigating CLI Modes The FTOS prompt changes to indicate the CLI mode. You must move linearly through the command modes, with the exception of the end command which takes you d...
Page 18
Stack ID XFP25 Alarm XFP26 AC2 Step Task Install the RJ-45 copper cable that is shipped with the system into the console port. CAUTION: You must install a straight-through RJ-45 copper cable (a standa...
Page 19
Step Task Set your initial console terminal settings to match the default console settings on the switch. 9600 baud rate No parity 8 data bits 1 stop bit No flow control (console port only) After esta...
Page 20
Default Configuration A version of the Dell Force10 Operating System (FTOS) is pre-loaded onto the chassis, however the system is not configured when you power up for the first time (except for the de...
Page 21
The S25N, S25V, and S25P systems do not have a dedicated management port, nor a separate management routing able. Configure any port on one of the chassis to be the port through which you manage the s...
Page 22
Task Command Syntax Command Mode Configure a management route ip-address/mask CONFIGURATION management route to gateway the network from which you are accessing the system. Configure a Username and Pa...
Page 23
Create a VLAN The Default VLAN is part of the system startup configuration, and is by default, VLAN 1. You may make another VLAN the Default VLAN. The Default VLAN cannot be deleted, disabled, or conf...
Page 24
Step Task Command Syntax Command Mode Assign a switchport to [tagged | untagged] interface INTERFACE VLAN a VLAN. Display all show vlan EXEC Privilege switchports and the VLANs of which they are membe...
Page 26
