Dell Precision M65 Mobile Workstation Service Manual
Summary
This is the service manual for the Dell Precision M65 Mobile Workstation (Model PP04X). The manual provides detailed technical instructions for servicing and repairing the mobile workstation, including procedures for removing and replacing components such as the processor, memory, hard drive, keyboard, display assembly, system board, and communications cards. It covers thermal-cooling assembly, palm rest, fan, coin-cell battery replacement, and BIOS flashing procedures. The document is intended for certified service technicians and IT professionals who perform hardware repairs and maintenance on Dell Precision M65 mobile workstations.

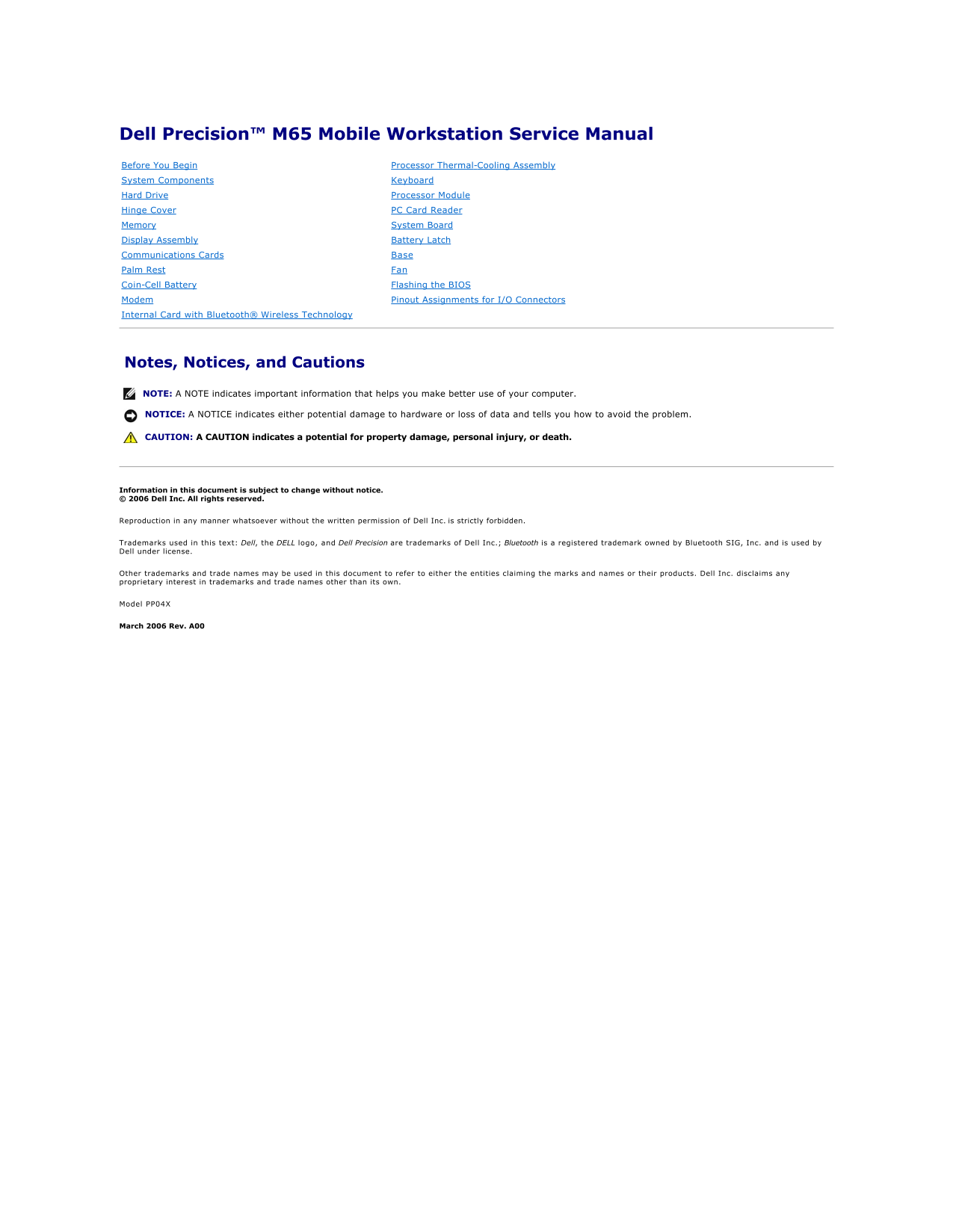

Page 1 Text Content
Dell Precision™ M65 Mobile Workstation Service Manual Before You Begin Processor Thermal-Cooling Assembly System Components Keyboard Hard Drive Processor Module Hinge Cover PC Card Reader Memory System Board Display Assembly Battery Latch Communications Cards Base Palm Rest Fan Coin-Cell Battery Flashing the BIOS Modem Pinout Assignments for I/O Connectors Internal Card with Bluetooth® Wireless Technology
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice. © 2006 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Dell Precision are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model PP04X March 2006 Rev. A00
Page Summary Contents For Dell Precision M65 Mobile Workstation Service Manual
Page 1
Dell Precision™ M65 Mobile Workstation Service Manual Before You Begin Processor Thermal-Cooling Assembly System Components Keyboard Hard Drive Processor Module Hinge Cover PC Card Reader Memory Syste...
Page 2
Back to Contents Page Base Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide....
Page 3
Back to Contents Page Battery Latch Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in the Product Informati...
Page 4
Back to Contents Page Before You Begin Dell Precision™ M65 Mobile Workstation Service Manual Recommended Tools Turning Off Your Computer Before Working Inside Your Computer Computer Orientat...
Page 5
3. Disconnect any telephone, network, and USB cables from the computer. 4. Disconnect your computer and all attached devices from their electrical outlets. 5. Turn over the computer. NOTICE: To avoid ...
Page 6
Optical Drive: Fan: Display Assembly: (1 each) (2 each) (4 each) Modem to Display Bezel: Display Panel to Top Cover: System Board: (8 each) (8 each) (1 each) Keyboard to Palm Rest: Display-Panel Side ...
Page 7
Back to Contents Page Internal Card with Bluetooth® Wireless Technology Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety i...
Page 8
Back to Contents Page Coin-Cell Battery Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in your Product Info...
Page 9
Back to Contents Page System Components Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to serv...
Page 10
Back to Contents Page Processor Module Dell Precision™ M65 Mobile Workstation Service Manual Removing the Processor Module Installing the Processor Module Removing the Processor Module CAUTION:...
Page 11
NOTICE: Ensure that the cam lock is in the fully open position before seating the processor module. Seating the processor module properly in the ZIF socket does not require force. NOTICE: A processor ...
Page 12
Back to Contents Page Processor Thermal-Cooling Assembly Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in ...
Page 13
Back to Contents Page Display Assembly Dell Precision™ M65 Mobile Workstation Service Manual Removing the Display Assembly Removing the Display Bezel Removing the Display Panel Installing th...
Page 14
10. From the back of the computer, remove the two screws. 11. Turn the computer top-side up and open the display. 12. Lift the display assembly out of the computer base. Removing the Display Bezel CA...
Page 15
1 screws (8) 2 display bezel 3 top cover NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel. 5. Starting from the sides of the display panel, use your fingers to sepa...
Page 16
3. Replace the display bezel. Removing the Display-Panel Side Brackets CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide. CAUTION: T...
Page 17
6. Slide the display latch toward the right side of the top cover and straight out. 1 display latch 2 latch spring 7. Unhook the latch spring from the display latch, and then lift away the latch. Back...
Page 18
Back to Contents Page Fan Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide. ...
Page 19
Back to Contents Page Flashing the BIOS Dell Precision™ M65 Mobile Workstation Service Manual Flashing the BIOS From a CD Flashing the BIOS From the Hard Drive If a BIOS-update program CD is pro...
Page 20
Back to Contents Page Hard Drive Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing o...
Page 21
6. Slide the new hard drive into the bay and into the connector until it is fully seated. 7. Replace the two hard drive screws. Back to Contents Page
Page 22
Back to Contents Page Hinge Cover Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product...
Page 23
Back to Contents Page Keyboard Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before working inside your Dell™ computer, follow the safety instructions in your Product Information Gu...
Page 24
Back to Contents Page Memory Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Info...
Page 25
7. Replace the keyboard (see Keyboard). 8. Replace the hinge cover (Hinge Cover). 9. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet. 10. T...
Page 26
a. Align the notch in the module edge connector with the tab in the connector slot. b. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into pla...
Page 27
Back to Contents Page Communications Cards Dell Precision™ M65 Mobile Workstation Service Manual Wireless Cards Subscriber Identity Module (SIM) Card Wireless Cards If you ordered a wireless LA...
Page 28
1 WLAN card 2 metal securing tabs (2) c. Lift the card out of its connector. NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the...
Page 29
1 antenna cables b. Release the card by spreading the metal securing tabs until the card pops up slightly. 1 Mobile Broadband card 2 metal securing tabs (2) c. Lift the card out of its connector. NO...
Page 30
1 SIM card Back to Contents Page
Page 31
Back to Contents Page Modem Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide. NOT...
Page 32
Back to Contents Page Palm Rest Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information G...
Page 33
12. Disconnect the touch pad connector and the speaker connector from the system board. Back to Contents Page
Page 34
Back to Contents Page PC Card Reader Dell Precision™ M65 Mobile Workstation Service Manual CAUTION: Before performing the following procedures, follow the safety instructions in the Product Informat...
Page 35
Back to Contents Page Pinout Assignments for I/O Connectors Dell Precision™ M65 Mobile Workstation Service Manual USB Connector Video Connector USB Connector Pin Signal 1 USB5V+ 2 USBP– 3 USBP+...
Page 36
Back to Contents Page System Board Dell Precision™ M65 Mobile Workstation Service Manual Removing the System Board Installing the System Board Removing the System Board CAUTION: Before performi...
Page 37
15. Lift the system board out and away from the base. Installing the System Board 1. Perform all the steps in Removing the System Board in reverse order. NOTE: When installing the system board, ensur...
Page 39
Back to Contents Page Dell Precision™ M65 Mobile Workstation Service Manual NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates eit...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 39 |
| File Size | 1.35 MB |
| Published | June 26, 2026 |
3 views
Enter the captcha to get the download link:
Frequently Asked Questions
What should I do before working on internal components?
To prevent static damage, discharge static electricity by touching an unpainted metal surface.
What tools are needed for procedures in this document?
Recommended tools include a small flat-blade screwdriver, Phillips screwdriver, small plastic scribe, hex nut driver, and a Flash BIOS-update program CD.
How do I remove the battery latch?
Use a plastic scribe or screwdriver to carefully dislodge the battery latch from the base, and then lift it away.
What steps must be followed after installing a new system board?
Align the wireless switch on the base with the switch on the system board. Then, ensure all screws are replaced before powering on.
