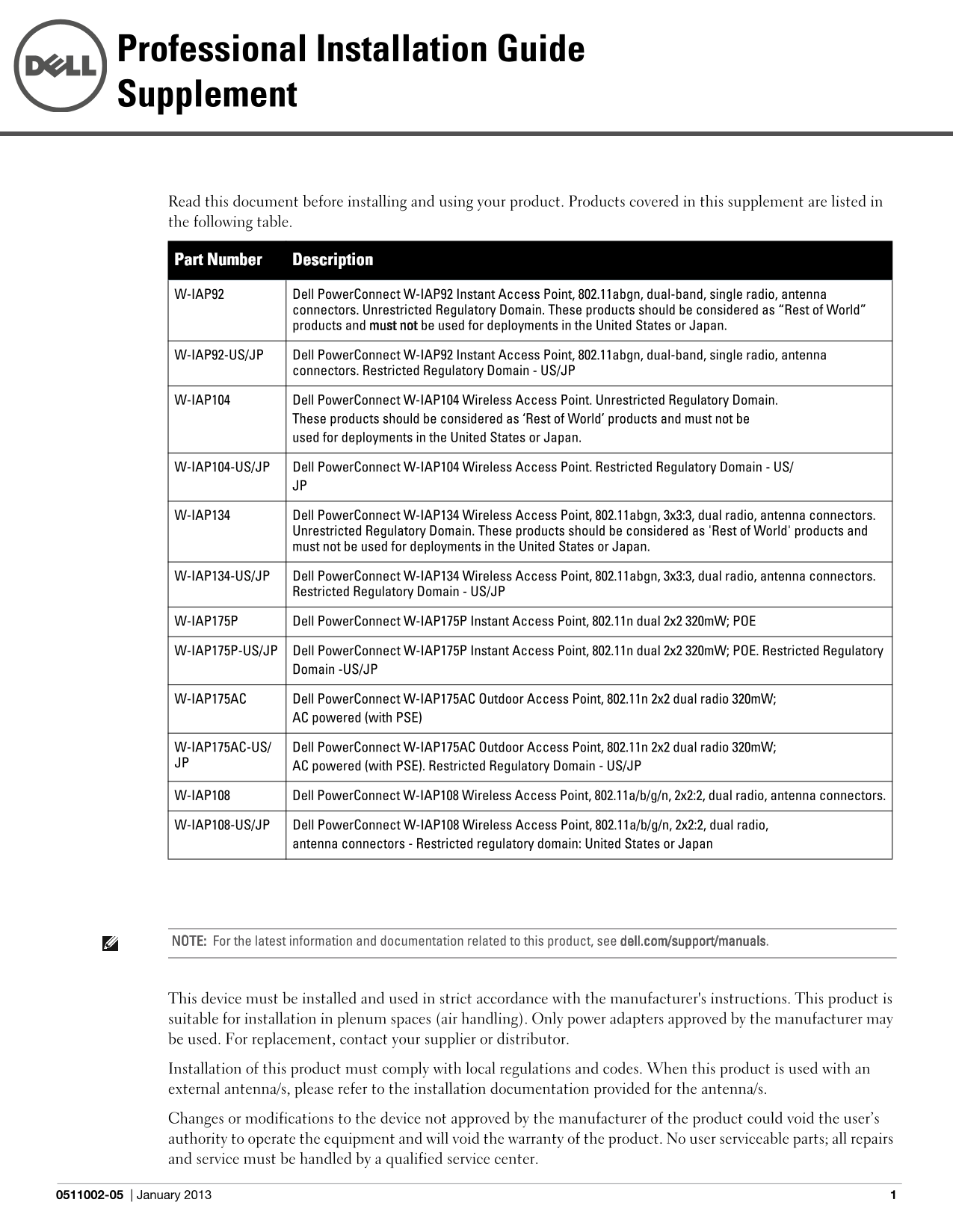

Page 1 Text Content
Professional Installation Guide Supplement
Read this document before installing and using your product. Products covered in this supplement are listed in the following table.
Part Number Description
W-IAP92 Dell Power Connect W-IAP92 Instant Access Point, 802.11abgn, dual-band, single radio, antenna
connectors. Unrestricted Regulatory Domain. These products should be considered as “Rest of World” products and must not be used for deployments in the United States or Japan.
W-IAP92-US/JP Dell Power Connect W-IAP92 Instant Access Point, 802.11abgn, dual-band, single radio, antenna
connectors. Restricted Regulatory Domain - US/JP
W-IAP104 Dell Power Connect W-IAP104 Wireless Access Point. Unrestricted Regulatory Domain.
These products should be considered as ‘Rest of World’ products and must not be used for deployments in the United States or Japan.
W-IAP104-US/JP Dell Power Connect W-IAP104 Wireless Access Point. Restricted Regulatory Domain - US/
W-IAP134 Dell Power Connect W-IAP134 Wireless Access Point, 802.11abgn, 3x3:3, dual radio, antenna connectors.
Unrestricted Regulatory Domain. These products should be considered as 'Rest of World' products and must not be used for deployments in the United States or Japan.
W-IAP134-US/JP Dell Power Connect W-IAP134 Wireless Access Point, 802.11abgn, 3x3:3, dual radio, antenna connectors.
Restricted Regulatory Domain - US/JP
W-IAP175P Dell Power Connect W-IAP175P Instant Access Point, 802.11n dual 2x2 320m W; POE
W-IAP175P-US/JP Dell Power Connect W-IAP175P Instant Access Point, 802.11n dual 2x2 320m W; POE. Restricted Regulatory
Domain -US/JP
W-IAP175AC Dell Power Connect W-IAP175AC Outdoor Access Point, 802.11n 2x2 dual radio 320m W;
AC powered (with PSE)
W-IAP175AC-US/ Dell Power Connect W-IAP175AC Outdoor Access Point, 802.11n 2x2 dual radio 320m W; JP AC powered (with PSE). Restricted Regulatory Domain - US/JP
W-IAP108 Dell Power Connect W-IAP108 Wireless Access Point, 802.11a/b/g/n, 2x2:2, dual radio, antenna connectors.
W-IAP108-US/JP Dell Power Connect W-IAP108 Wireless Access Point, 802.11a/b/g/n, 2x2:2, dual radio,
antenna connectors - Restricted regulatory domain: United States or Japan
NOTE: For the latest information and documentation related to this product, see dell.com/support/manuals.
This device must be installed and used in strict accordance with the manufacturer's instructions. This product is suitable for installation in plenum spaces (air handling). Only power adapters approved by the manufacturer may be used. For replacement, contact your supplier or distributor.
Installation of this product must comply with local regulations and codes. When this product is used with an external antenna/s, please refer to the installation documentation provided for the antenna/s.
Changes or modifications to the device not approved by the manufacturer of the product could void the user’s authority to operate the equipment and will void the warranty of the product. No user serviceable parts; all repairs and service must be handled by a qualified service center.
0511002-05 January 2013
