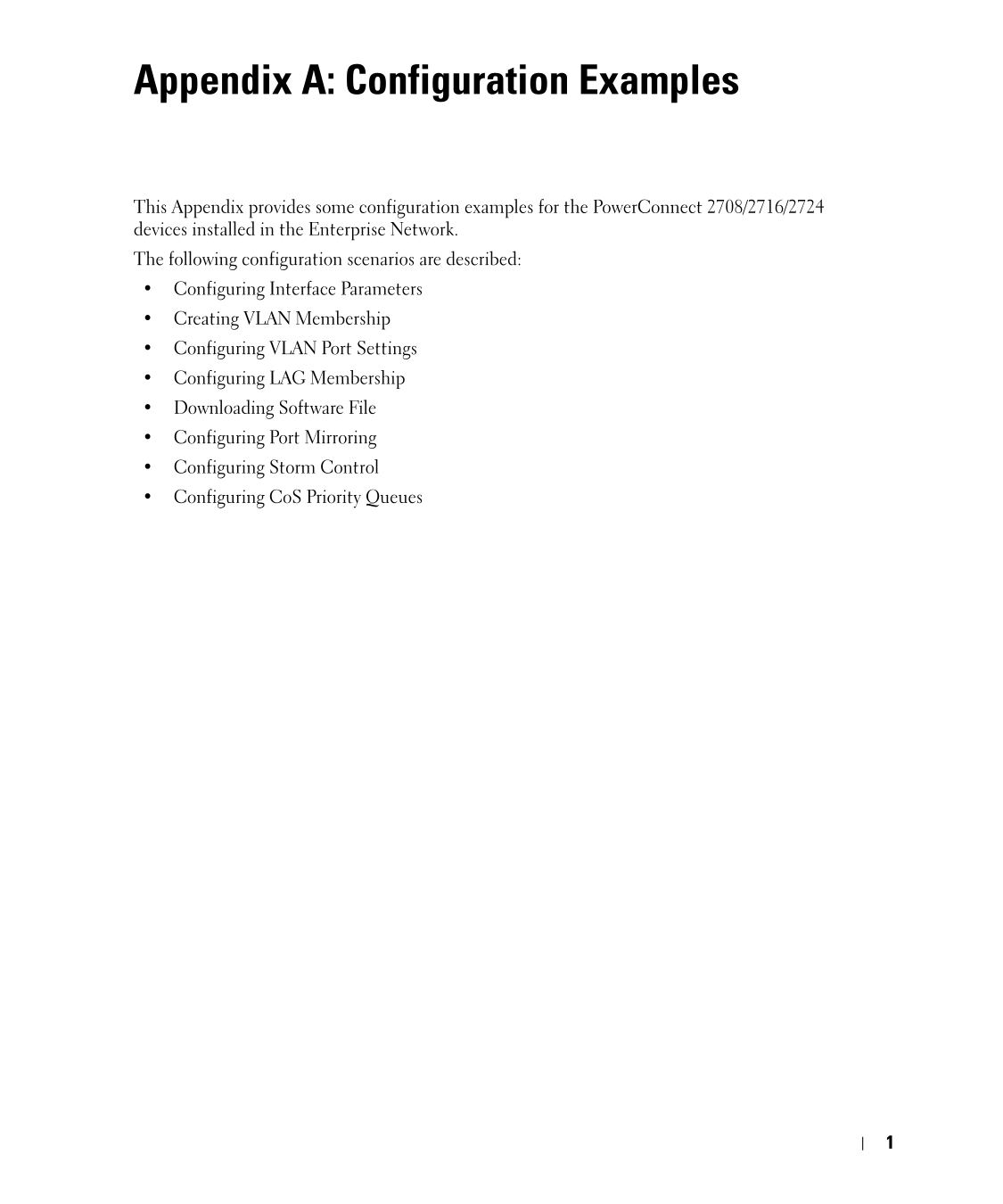

Appendix A: Configuration Examples

This Appendix provides some configuration examples for the Power Connect 2708/2716/2724 devices installed in the Enterprise Network. The following configuration scenarios are described: Configuring Interface Parameters Creating VLAN Membership Configuring VLAN Port Settings Configuring LAG Membership Downloading Software File Configuring Port Mirroring Configuring Storm Control Configuring Co S Priority Queues

Page Summary Contents For Dell PowerConnect 2708 User's Guide - Addendum

Page 1 Appendix A: Configuration Examples This Appendix provides some configuration examples for the Power Connect 2708/2716/2724 devices installed in the Enterprise Network. The following configuration scen...
Page 2 .d ll .c t. ll .c Configuring Interface Parameters The Interface Configuration screen enables the user to set the various interface parameters, interface type and additional operational attributes. In...
Page 3 Figure 9-2. Port-Based VLANs in the Enterprise Creating VLAN Membership VLANs are collections of switching ports that comprise a single broadcast domain. Packets are classified as belonging to a VLAN ...
Page 4 .d ll .c t. ll .c Figure 9-3. VLAN Membership Defining VLAN Port Settings The VLAN Port Settings screen enables the user to configure information for a specific port in a LAG. In the following example...
Page 5 Figure 9-4. VLAN Port Settings LAGs A Link Aggregated Group (LAG) is composed of ports with the same speed, set to full-duplex operation. Up to six Aggregated Links may be defined, each with up to fou...
Page 6 .d ll .c t. ll .c Figure 9-5. LAGs in the Power Connect Departmental Switch Aggregating Ports Link Aggregation optimizes port usage by linking a group of ports together to form a single LAG (aggregate...
Page 7 Configuring LAG Membership The following screen shows an example of Link Aggregation configuration, whereby LAG Group 4 consists of member ports 5, 6, and 7. Figure 9-6. LAG Membership Downloading Fil...
Page 8 .d ll .c t. ll .c Figure 9-7. File Download Port Mirroring Power Connect 2708/2716/2724 support port mirroring functionality. Port Mirroring allows traffic to be copied from one port to another port. ...
Page 9 Figure 9-8. Port Mirroring Setup with Departmental Switch In the following screen, the Destination Port is configured as port 3, and the Source Port as port 7. The type of traffic to be monitored is c...
Page 10 .d ll .c t. ll .c Storm Control Enabling Storm Control The Storm Control mechanism is useful when a faulty Network Interface Card (NIC), or Broadcast or Multicast frames cause network flooding, beyond...
Page 11 Configuring Class of Service (Co S) The underlying mechanism of Class of Service (Co S) is the concept of queues. After packets are assigned to a specific egress queue, Co S services can be assigned t...
Page 12 .d ll .c t. ll .c The common prioritization mechanisms implemented in the Power Connect device are Class of Service (Co S), according to IEEE802.1p, and DSCP (Diff Serve Code Point) for IP traffic. Co...
Page 13 When Restore Defaults box is checked, the device’s factory default settings for mapping Co S values are restored. Figure 9-13. Co S to Queue Mapping DSCP Values to Queues The following screen shows DS...
Page 14 .d ll .c t. ll .c
