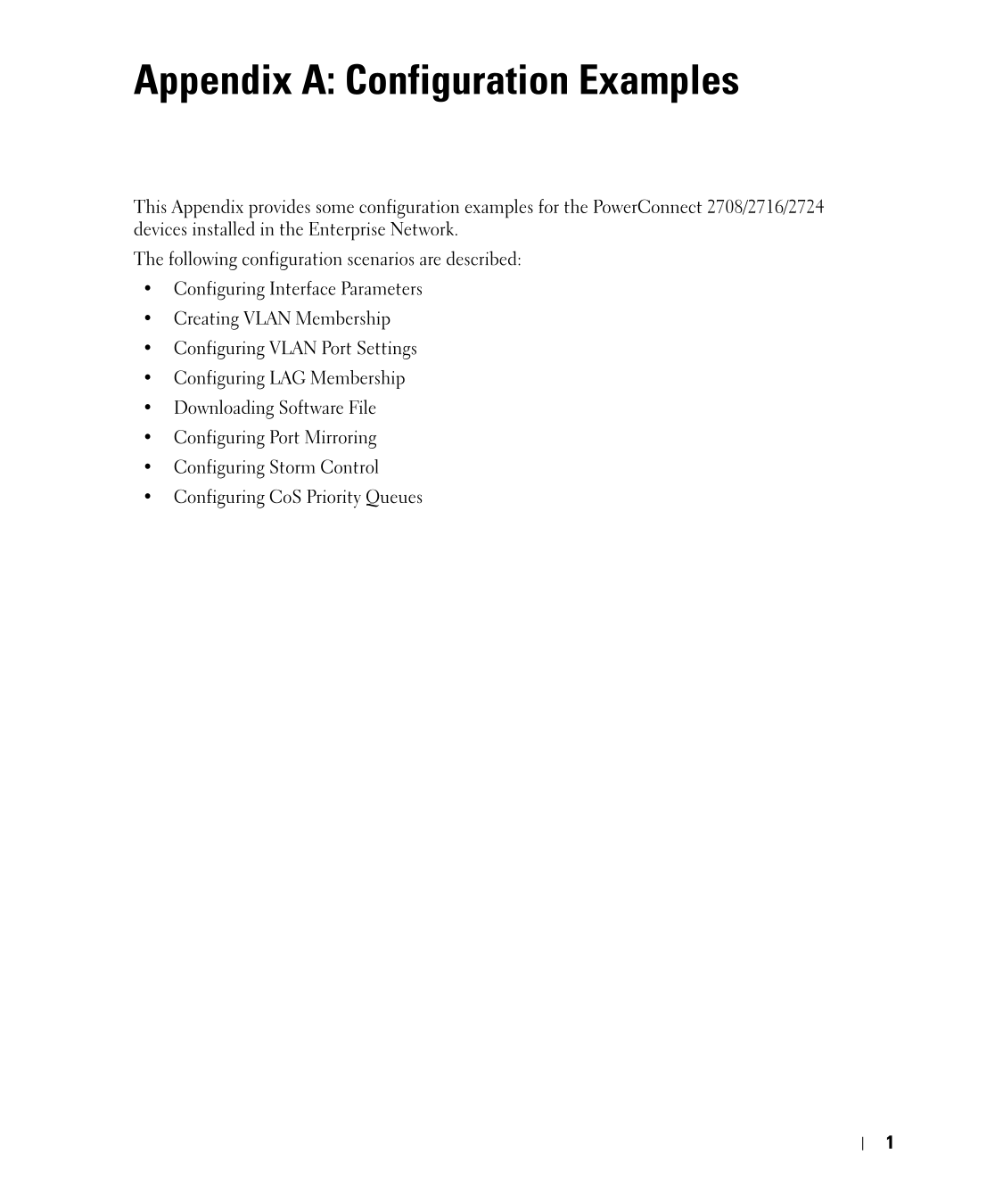

Appendix A: Configuration Examples
This Appendix provides some configuration examples for the Power Connect 2708/2716/2724 devices installed in the Enterprise Network. The following configuration scenarios are described: Configuring Interface Parameters Creating VLAN Membership Configuring VLAN Port Settings Configuring LAG Membership Downloading Software File Configuring Port Mirroring Configuring Storm Control Configuring Co S Priority Queues
