This document describes enabling Web-Managed Mode for Dell PowerConnect 2708, 2716, and 2724 switches. It covers procedures for toggling between unmanaged and web-managed modes, default IP configuration (192.168.2.1), default login credentials, and basic management setup through the web interface. It targets network administrators and small business IT managers who need to activate and configure management features on PowerConnect 27xx series switches.

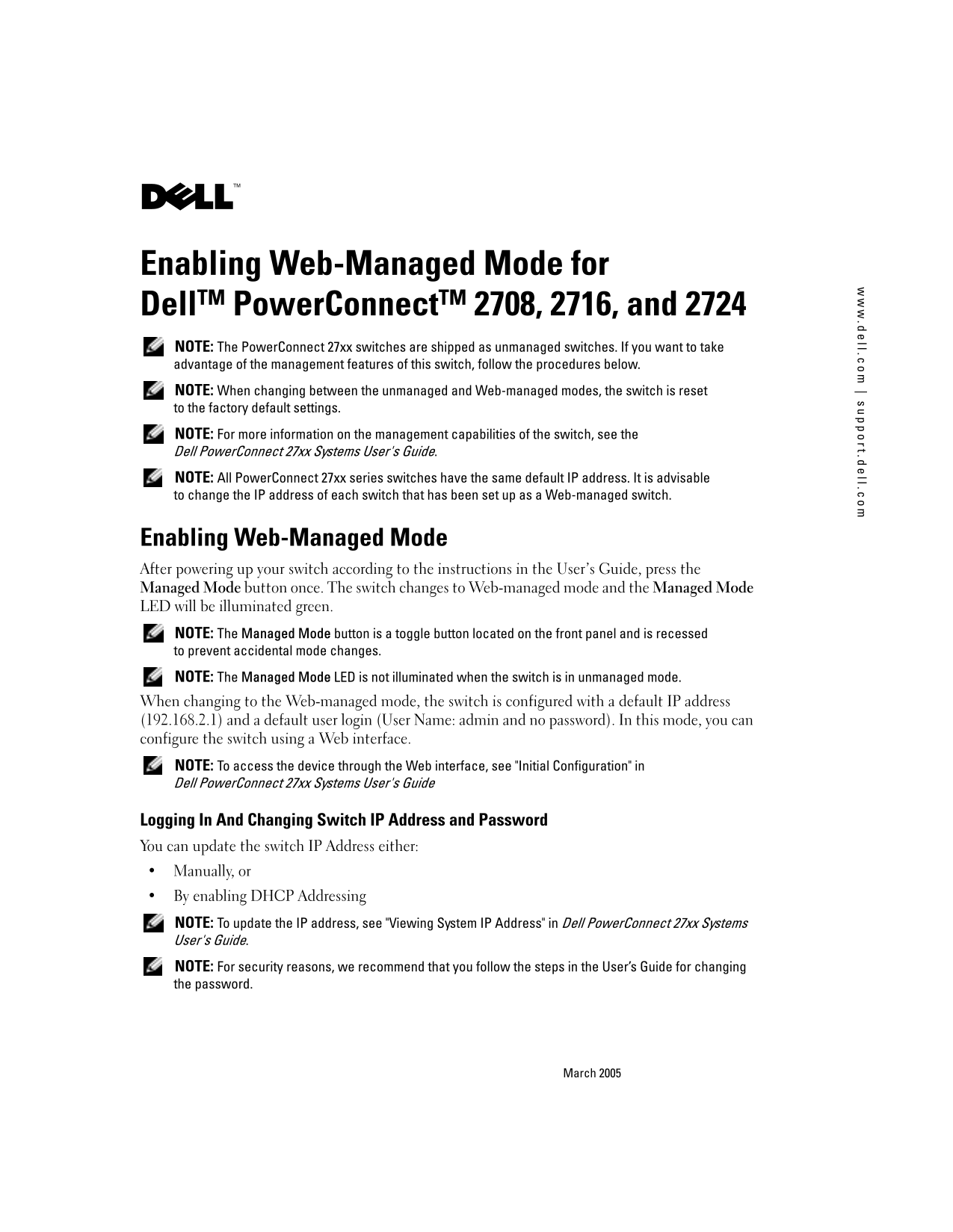

Page 1 Text Content
.d ll.c | s t.d ll.c
Enabling Web-Managed Mode for Dell TM Power Connect TM 2708, 2716, and 2724 NOTE: The Power Connect 27xx switches are shipped as unmanaged switches. If you want to take advantage of the management features of this switch, follow the procedures below. NOTE: When changing between the unmanaged and Web-managed modes, the switch is reset to the factory default settings. NOTE: For more information on the management capabilities of the switch, see the Dell Power Connect 27xx Systems User's Guide. NOTE: All Power Connect 27xx series switches have the same default IP address. It is advisable to change the IP address of each switch that has been set up as a Web-managed switch.
Enabling Web-Managed Mode After powering up your switch according to the instructions in the User’s Guide, press the Managed Mode button once. The switch changes to Web-managed mode and the Managed Mode LED will be illuminated green. NOTE: The Managed Mode button is a toggle button located on the front panel and is recessed to prevent accidental mode changes. NOTE: The Managed Mode LED is not illuminated when the switch is in unmanaged mode. When changing to the Web-managed mode, the switch is configured with a default IP address (192.168.2.1) and a default user login (User Name: admin and no password). In this mode, you can configure the switch using a Web interface. NOTE: To access the device through the Web interface, see "Initial Configuration" in Dell Power Connect 27xx Systems User's Guide
Logging In And Changing Switch IP Address and Password You can update the switch IP Address either: Manually, or By enabling DHCP Addressing NOTE: To update the IP address, see "Viewing System IP Address" in Dell Power Connect 27xx Systems User's Guide. NOTE: For security reasons, we recommend that you follow the steps in the User’s Guide for changing the password.
March 2005
Page Summary Contents For Dell PowerConnect 2708 Update
Manual Details
| Brand | Dell |
|---|---|
| Pages | 12 |
| File Size | 415.48 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I enable Web-managed mode on a Dell PowerConnect switch?
Press the recessed Managed Mode button once on the front panel after powering up. The LED will turn green, and the switch will reset to factory defaults.
What is the default IP address for the switch?
The default IP address is 192.168.2.1.
What is the default username and password for the switch?
The default username is 'admin' and the password is empty.
Does the switch reset when changing between modes?
Yes, changing between unmanaged and Web-managed modes resets the switch to factory default settings.
How can I update the switch IP address?
You can update the IP address manually or by enabling DHCP addressing.
