Dell P2722H Statement of Volatility
Summary
Statement of Volatility document for the Dell P2722H monitor, detailing the volatile and non-volatile components present on the system board. It identifies specific NV components including serial flash memory for firmware storage, EEPROM for VGA/HDMI EDID data, and scaler data storage. Target audience includes security professionals and government agencies requiring hardware volatility assessments for compliance and data sanitization purposes.
Page 1 Text Content

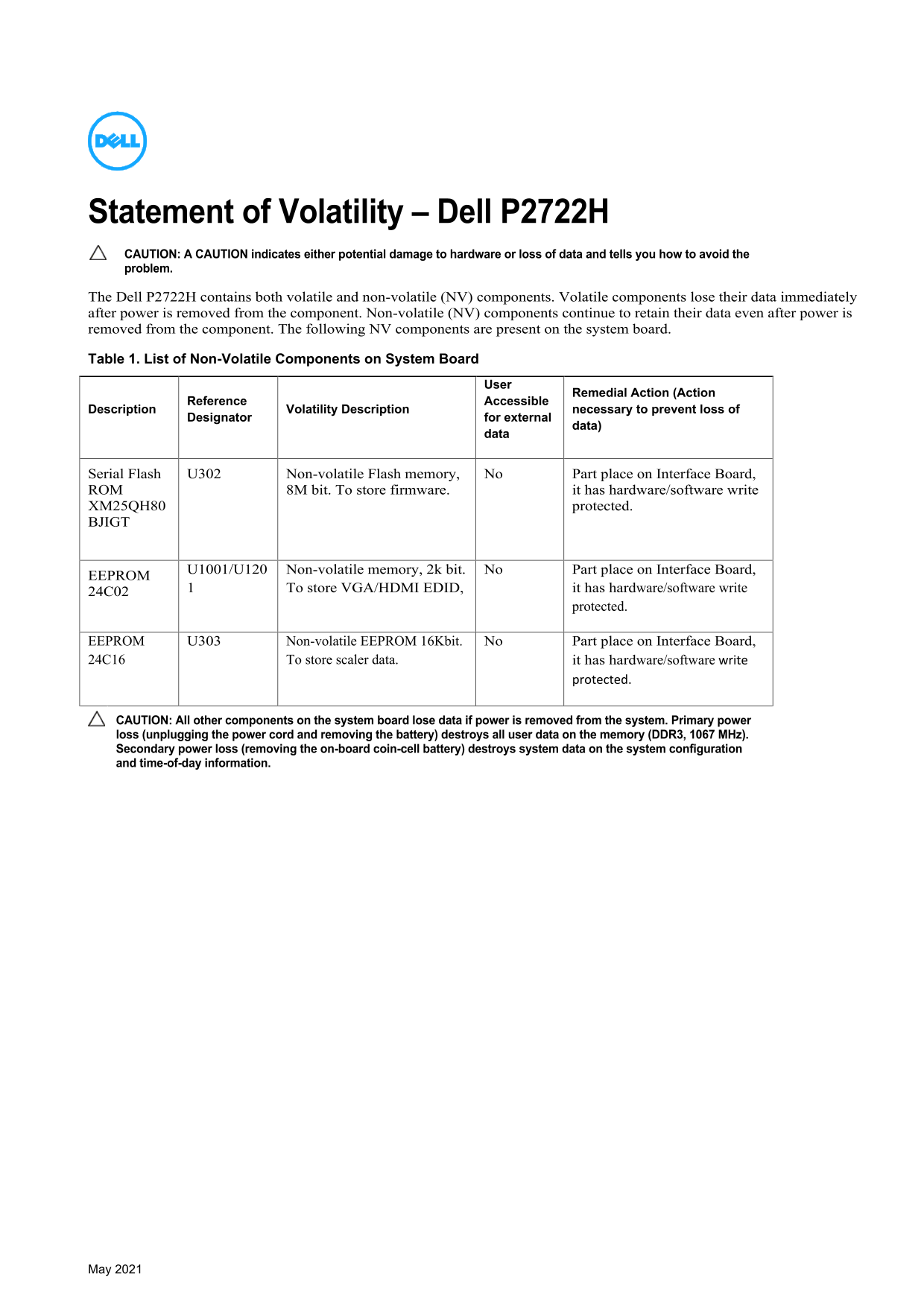

Statement of Volatility – Dell P2722H CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell P2722H contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Accessible
Description Reference necessary to prevent loss of
Designator Volatility Description for external
data)
Serial Flash U302 Non-volatile Flash memory, No Part place on Interface Board, ROM 8M bit. To store firmware. it has hardware/software write XM25QH80 protected. BJIGT
U1001/U120 Non-volatile memory, 2k bit. No Part place on Interface Board,
EEPROM
To store VGA/HDMI EDID, it has hardware/software write
protected.
EEPROM U303 Non-volatile EEPROM 16Kbit. No Part place on Interface Board, 24C16 To store scaler data. it has hardware/software write
protected.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
May 2021
Page Summary Contents For Dell P2722H Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 152.48 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of components does the Dell P2722H contain?
It contains both volatile and non-volatile (NV) components.
How is user data stored on this system?
User data on memory (DDR3, 1067 MHz) is destroyed by primary power loss.
Which specific components retain their data after power removal?
The Serial Flash (U302), EEPROM (U1001/U120), and U303 are non-volatile components.
What happens if I only remove the coin-cell battery?
Only system configuration and time-of-day information will be destroyed.
