Dell P2319H Monitor Teardown Instructions
Summary
Disassembly procedure guide for the Dell P2319H monitor, providing step-by-step teardown instructions with specified screw sizes and torque values (M4x10 at 12 kgf.cm for rear cover release, M3x6 at 4 kgf.cm for USB board, M3x2.8 at 2-3 kgf.cm for bracket, M3x4 at 3-4 kgf.cm for middle bezel). Covers carton unboxing with accessories, rear cover release technique, USB FFC disconnection, LVDS cable removal, bracket chassis separation, and middle bezel extraction for service-level repairs.
Page 1 Text Content
DELL P2319H
Go to contents page

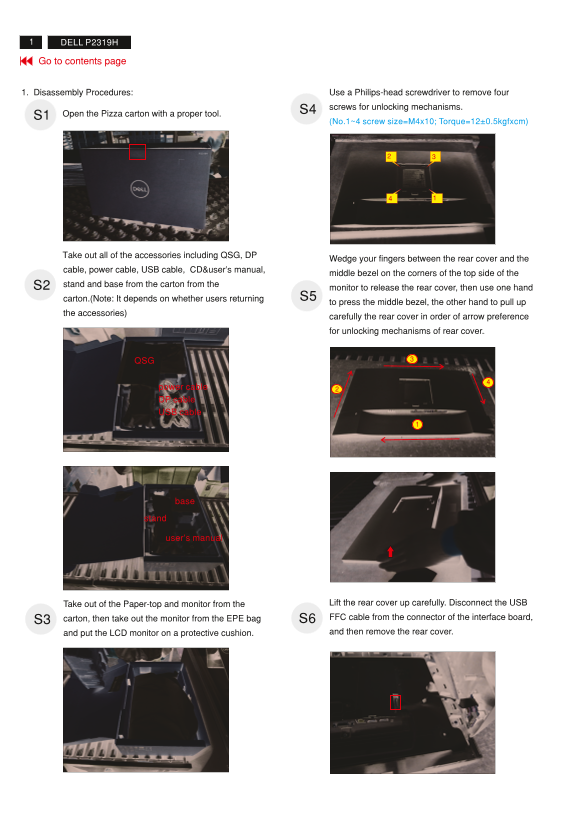

1. Disassembly Procedures: Use a Philips-head screwdriver to remove four screws for unlocking mechanisms. S4S1
Open the Pizza carton with a proper tool.
(No.1~4 screw size=M4x10; Torque=12±0.5kgfxcm)
Take out all of the QSG,accessories including DP
Wedge your fingers between the rear cover and the
cable, power cable, USB cable, CD&user’s manual,
middle bezel on the corners of the top side of the
S2 stand and base from the carton from the
monitor to release the rear cover, then use one hand carton.(Note: It depends on whether users returning S5 to press the middle bezel, the other hand to pull up
the accessories)
carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover..
power cable DP cable USB cable
stand
user’s manual
Take out of the Paper-top and monitor from the Lift the rear cover up carefully. Disconnect the USB carton, then take out the monitor from the EPE bag S6 FFC cable from the connector of the interface board,
and put the LCD monitor on a protective cushion. and then remove the rear cover.
