Dell P2211H Statement of Volatility
Summary
This is the Statement of Volatility for the Dell P2211H monitor, certifying that the monitor does not retain input video signals after power removal. The document details memory components including Flash ROM (16 Mbit for firmware), DDR SDRAM (volatile video decoder buffer), DDR2 SDRAM (volatile video processing buffer), and System EEPROM (16Kbit for OSD settings). For each component, it specifies size, type, volatility, user write access, purpose, and write protection. Target users are security professionals and government agencies requiring volatility certification.

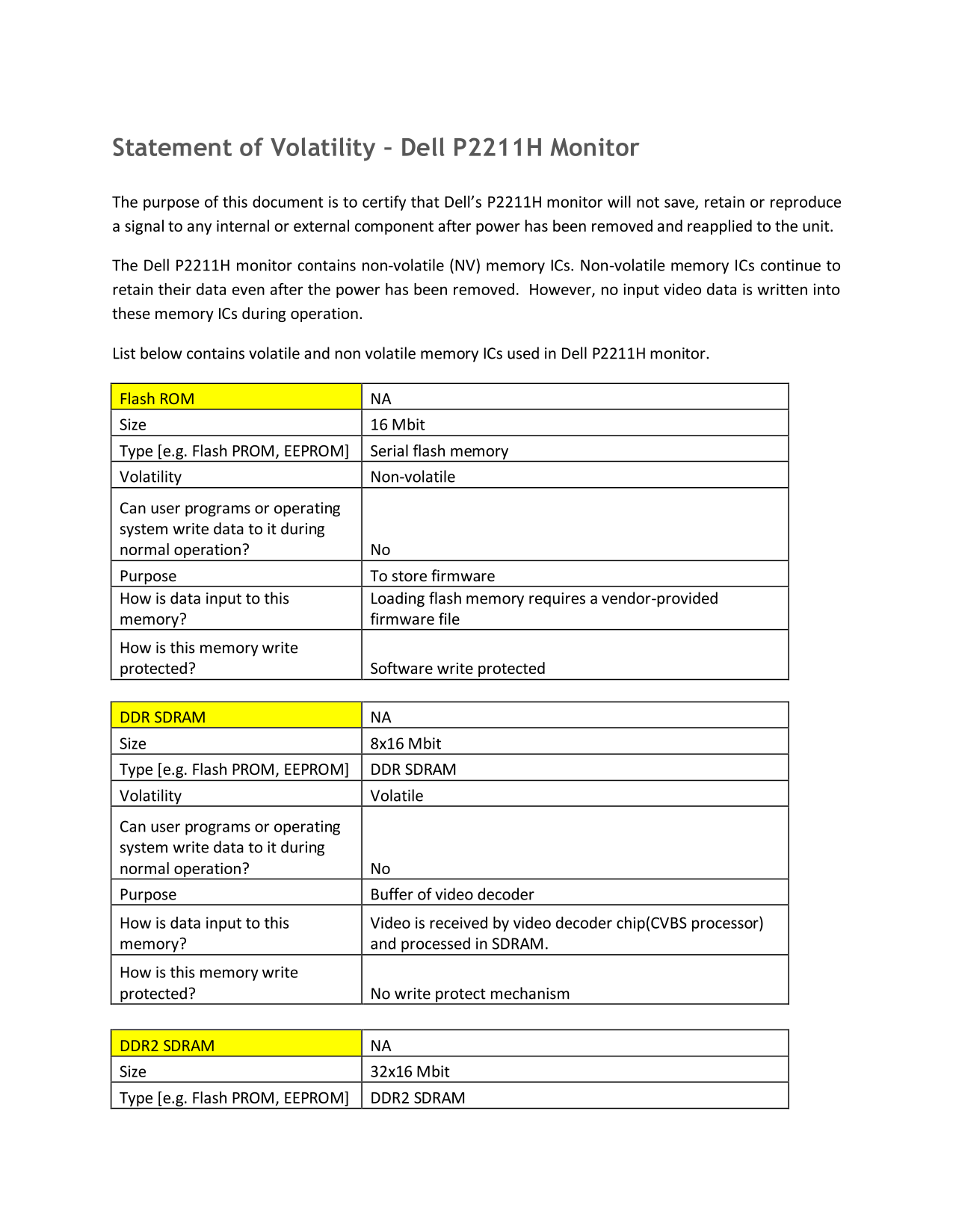

Page 1 Text Content
Statement of Volatility – Dell P2211H Monitor
The purpose of this document is to certify that Dell’s P2211H monitor will not save, retain or reproduce a signal to any internal or external component after power has been removed and reapplied to the unit.
The Dell P2211H monitor contains non-volatile (NV) memory ICs. Non-volatile memory ICs continue to retain their data even after the power has been removed. However, no input video data is written into these memory ICs during operation.
List below contains volatile and non volatile memory ICs used in Dell P2211H monitor.
Flash ROM NA Size 16 Mbit Type [e.g. Flash PROM, EEPROM] Serial flash memory Volatility Non-volatile Can user programs or operating system write data to it during normal operation? No Purpose To store firmware How is data input to this Loading flash memory requires a vendor-provided memory? firmware file How is this memory write protected? Software write protected
DDR SDRAM NA Size 8x16 Mbit Type [e.g. Flash PROM, EEPROM] DDR SDRAM Volatility Volatile Can user programs or operating system write data to it during normal operation? No Purpose Buffer of video decoder How is data input to this Video is received by video decoder chip(CVBS processor) memory? and processed in SDRAM. How is this memory write protected? No write protect mechanism
DDR2 SDRAM NA Size 32x16 Mbit Type [e.g. Flash PROM, EEPROM] DDR2 SDRAM
Page Summary Contents For Dell P2211H Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 173.71 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What kind of memory stores system settings (OSD)?
The System EEPROM (24LC16B), which is non-volatile and designed for storing OSD settings.
Can user programs modify the Monitor's firmware or OSD settings?
System setting storage is hardware write protected, but users can control the setting through the OSD menu. Firmware requires vendor tools and loading processes.
Which memory components are volatile versus non-volatile?
Non-volatile memory includes Flash ROM, System EEPROM, VGA EDID, and DVI EDID. Volatile memories include DDR SDRAM and DDR2 SDRAM.
How is the monitor's firmware updated or loaded?
Loading flash memory requires a vendor-provided firmware file.
