Dell Optiplex 9030 AIO Statement of Volatility
Summary
This security document identifies and categorizes volatile and non-volatile memory components on the OptiPlex 9030 All-in-One system board. It details component types, memory sizes, accessibility levels, and remedial actions required to prevent data loss. Target users are security professionals, IT administrators, and compliance officers handling data sanitization and hardware disposal procedures.

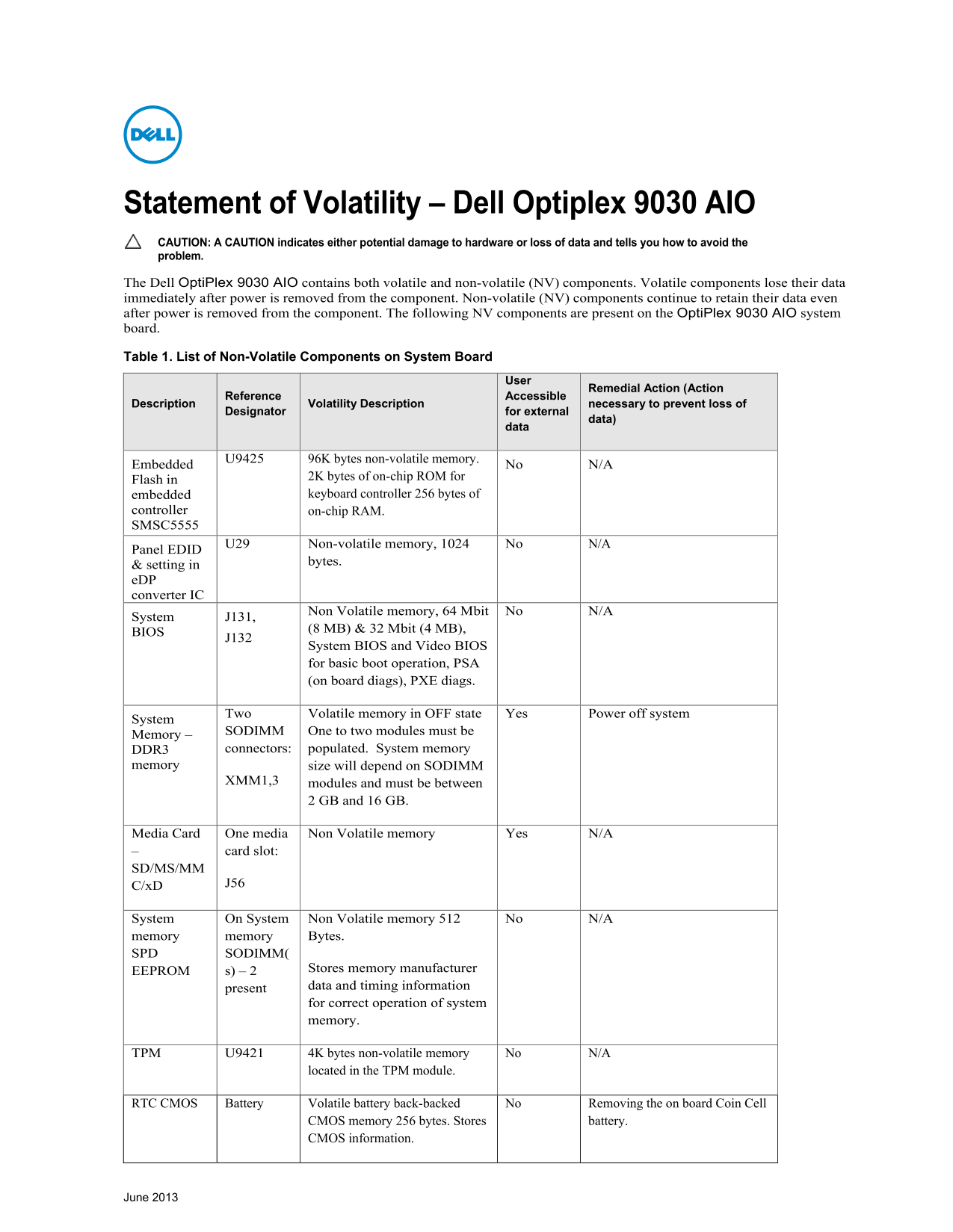

Page 1 Text Content
Statement of Volatility – Dell Optiplex 9030 AIO CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 9030 AIO contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Opti Plex 9030 AIO system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Accessible
Description Reference necessary to prevent loss of
Designator Volatility Description for external
data)
U9425 96K bytes non-volatile memory.
Embedded No N/A
2K bytes of on-chip ROM for
Flash in
embedded keyboard controller 256 bytes of
controller on-chip RAM. SMSC5555
U29 Non-volatile memory, 1024 No N/A
Panel EDID
bytes.
& setting in e DP converter IC
Non Volatile memory, 64 Mbit No N/A
System J131,
(8 MB) & 32 Mbit (4 MB),
System BIOS and Video BIOS for basic boot operation, PSA (on board diags), PXE diags.
Two Volatile memory in OFF state Yes Power off system
System
SODIMM One to two modules must be
Memory –
DDR3 connectors: populated. System memory
memory size will depend on SODIMM
XMM1,3 modules and must be between
2 GB and 16 GB.
Media Card One media Non Volatile memory Yes N/A
card slot:
SD/MS/MM
System On System Non Volatile memory 512 No N/A
memory memory Bytes. SPD SODIMM(
EEPROM s) – 2 Stores memory manufacturer present data and timing information for correct operation of system memory.
TPM U9421 4K bytes non-volatile memory No N/A
located in the TPM module.
RTC CMOS Battery Volatile battery back-backed No Removing the on board Coin Cell
CMOS memory 256 bytes. Stores battery. CMOS information.
June 2013
Page Summary Contents For Dell Optiplex 9030 AIO Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 117.42 KB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the risk of losing user data if primary power is disconnected?
All user data stored on the memory (DDR3) will be destroyed when primary power is lost.
What type and size range are supported for system memory?
The system uses DDR3 SODIMM modules, with a required capacity between 2 GB and 16 GB.
How should I format or service media card storage (HDD/CD)?
Hard drives require 'low level format' and replaceable flash drives can use the dedicated card slot.
