Dell OptiPlex 7770 All-in-One Setup Guide and Specifications Manual
Summary
Setup and specifications guide for Dell OptiPlex 7770 All-in-One desktop computer, detailing physical setup procedures, chassis views from all angles, and transform capabilities. Covers complete hardware specifications including Intel processors, memory, storage options, display properties, and connectivity ports. Provides information on system board layout, power specifications, and environmental operating conditions. Intended for enterprise IT departments deploying OptiPlex 7770 AIO systems in professional office environments.
Page 1 Text Content

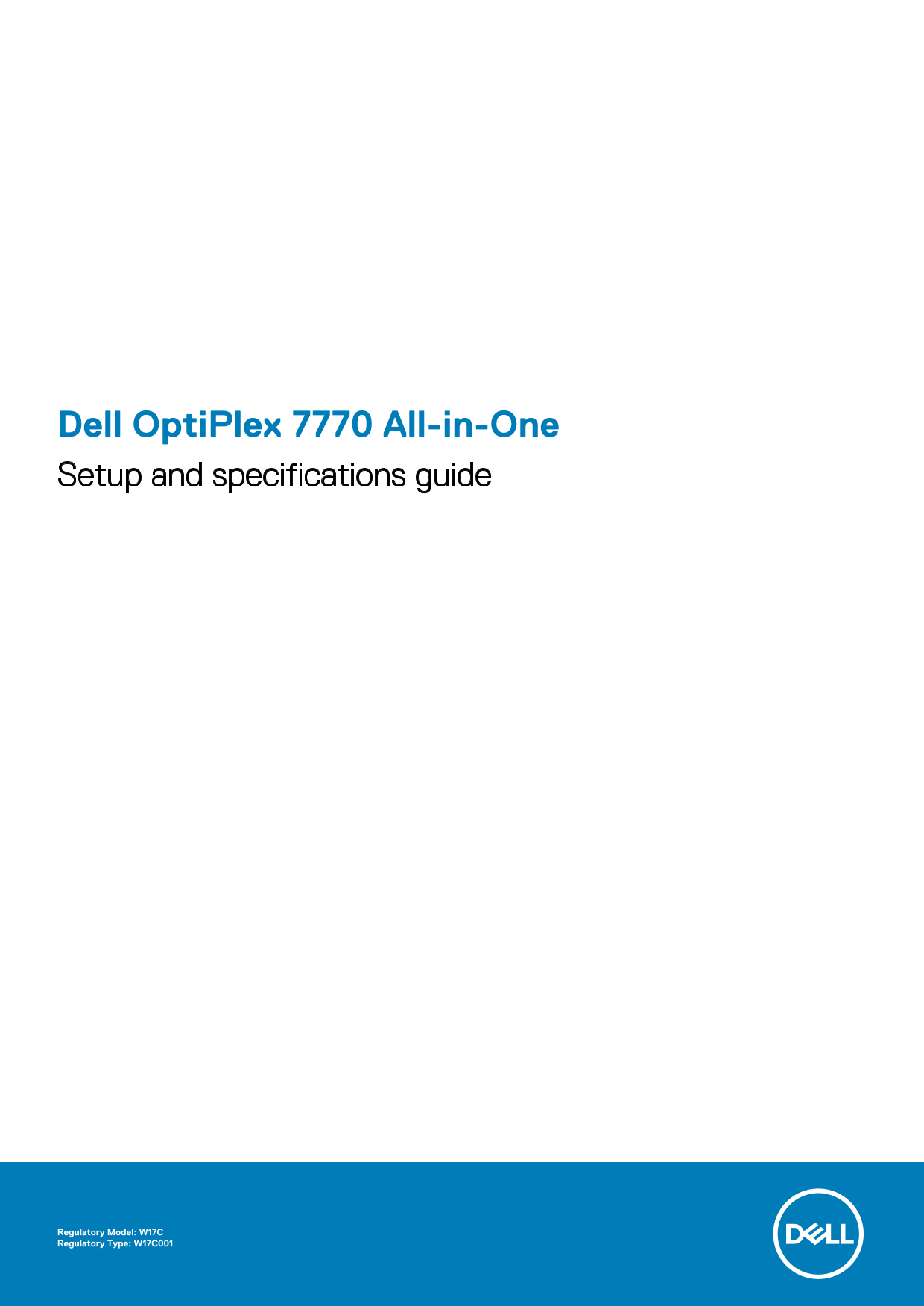

Dell Opti Plex 7770 All-in-One Setup and specifications guide
Regulatory Model: W17C Regulatory Type: W17C001
Page Summary Contents For Dell OptiPlex 7770 All-in-One Setup Guide and Specifications Manual
Page 1
Dell Opti Plex 7770 All-in-One Setup and specifications guide Regulatory Model: W17C Regulatory Type: W17C001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Set up your computer................................................................................................................... 2 Chassis...............................................
Page 4
System Log screen options................................................................................................................................................34 Advanced configuration optio...
Page 5
Set up your computer 1. Set up the stand. Height Adjustable stand Set up your computer
Page 6
Articulating stand NOTE: The stand comes assembled in the box. Set up your computer
Page 7
2. Set up the keyboard and mouse. NOTE: See the documentation that shipped with the keyboard and mouse. 3. Route the cable through the stand, then connect the power cable. Height Adjustable stand Arti...
Page 8
Set up your computer
Page 9
Chassis Topics: Front chassis view Back chassis view Left chassis view Right chassis view Bottom chassis view Transform Pop-Up Camera - optional Front chassis view 1. Full high-definition (FHD) camera...
Page 10
Back chassis view 1. Back cover 2. Security lock slot 3. Base cover 4. Stand FHD UMA version 1. HDMI-in port (with discrete graphics card) 2. HDMI-out port 3. Display Port Dual- Mode Dp++ 4. Network p...
Page 11
1. HDMI-out port (with discrete graphics card) 2. HDMI-in port 3. Display Port Dual- Mode Dp++ 4. Network port 5. USB 3.1 Gen 1 ports with Power on/ Wake-up support 6. USB 3.1 Gen 2 ports 7. Audio out...
Page 12
Left chassis view 1. SD card reader 2. USB 3.1 Gen 2 Type-C port 3. Headset/Universal audio port 4. USB 3.1 Gen 1 port with Power Share Chassis
Page 13
Right chassis view 1. Hard drive activity light Bottom chassis view 1. Service Tag label 2. Display Built-in Self Test button/Video input selection Transform Chassis
Page 14
Height Adjustable stand Articulating stand Chassis
Page 15
Pop-Up Camera - optional NOTE: Extend the camera while using any camera function so that the camera is not blocked. Chassis
Page 16
System specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your c...
Page 17
Table 2. 8th Generation Intel Core Processor specifications Intel Core i3 - 8100 (4 Cores/6MB/4T/3.6GHz/65W) Intel Core i3 - 8300 (4 Cores/8MB/4T/3.7GHz/65W) Intel Core i5 - 8400 (6 Cores/9MB/6T/up to...
Page 18
Primary/Boot drive Form Factor 1 x M.2 Drive 1 x 2.5 inch Drive 1 x 2.5 inch Drive NA 1 x 2.5 inch HDD with M.2 Optane NA NOTE: Supports RAID 0 and 1 with M.2 SATA SSD and 2.5" SSD/HDD. RAID 0 an...
Page 19
Video controller Table 7. Video Controller Type Graphics memory type Intel UHD Graphics 630 UMA Integrated NVIDIA Ge Force GTX 1050, 4GB Discrete GDDR5 Table 8. Video port resolution matrix Display Po...
Page 20
External ports and connectors Table 11. External ports and connectors USB 3.1 Type A Gen1(Side/Rear/Internal) 1/4/0 1x USB 3.1 Type A Gen 1 with Power Share (side) 2x USB 3.1 Type A Gen 1 (rear) 2x US...
Page 21
Megapixels FHD - 2M 4K UHD - 8.3M Pixels Per Inch (PPI) FHD - 82 4K UHD - 163 Pixel pitch FHD - 0.3114 mm x 0.3114 mm 4K UHD - 0.1554 mm x 0.1554 mm Color depth FHD - 16.7 M 4K UHD - 1.07 B Contrast r...
Page 22
BTUs/h (based on PSU max wattage) 819 BTU 529 BTU Power Supply Fan N/A N/A Compliance Erp Lot6 Tier 2 0.5watt requirement Yes Yes Climate Savers / 80Plus Compliant Yes Yes Energy Star 7.0/7.1 Qualifie...
Page 23
Table 16. System dimensions Non-touch chassis weight without stand (pounds / kilograms) 18.54 / 8.41 Touch chassis weight without stand (pounds / kilograms) 19.03 / 8.63 Non-touch chassis dimensions (...
Page 24
Environmental NOTE: For more details on Dell Environmental features, please to go to Environmental Attributes section. See your specific region for availability. Table 17. Environmental Recyclable pac...
Page 25
System setup System setup enables you to manage your hardware and specify BIOS level options. From the System setup, you can: Change the NVRAM settings after you add or remove hardware View the system...
Page 26
Keys Navigation Down arrow Moves to the next field. Enter Selects a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands or collapses a drop-down list, if appl...
Page 27
Option Description Boot Sequence Boot Sequence Allows you to specify the order in which the computer attempts to find an operating system. To change the boot order, select the device that you want to ...
Page 28
Option Description Enabled w/PXE: This option is enabled by default. Enabled w/Cloud Desktop NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not ...
Page 29
Option Description Disable Media Card Security screen options Option Description Admin Password Allows you to set, change, or delete the administrator (admin) password. NOTE: You must set the admin pa...
Page 30
Option Description SHA - 256 (Default) NOTE: Activation, deactivation, and clear options are not affected if you load the setup program's default values. Changes to this option take effect immediately...
Page 31
Option Description db dbx If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The options are: Save to File—Saves the key to a user-selected file Replace from File—Rep...
Page 32
Power Management screen options Option Description AC Recovery Allows you to enable or disable the computer from turning on automatically when an AC adapter is connected. Power Off (default) Power On ...
Page 33
Option Description Fastboot Allows you to speed up the boot process by bypassing some of the compatibility steps. The options are: Minimal Thorough (default) Auto Extend BIOS This option created an ad...
Page 34
Maintenance screen options Option Description Service Tag Displays the Service Tag of your computer. Asset Tag Allows you to create a system asset tag if an asset tag is not already set. This option i...
Page 35
To enter the system setup, press F2 immediately after a power-on or re-boot. 1. In the System BIOS or System Setup screen, select Security and press Enter. The Security screen is displayed. 2. Select ...
Page 36
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Operating system Downloading drivers Intel chipset drivers Display adapter ...
Page 37
Display adapter drivers Verify if the drivers for the display adapter is already installed in the system. Software
Page 38
Audio drivers Verify if the audio drivers are already installed in the system. Network drivers Verify if network drivers are already installed in the system. Camera drivers Verify if the camera driver...
Page 39
Security drivers Verify if the security drivers are already installed in the system. Bluetooth drivers Verify if the Bluetooth drivers are already installed in the system. USB drivers Verify if the US...
Page 40
Getting help Topics: Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell prod...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 40 |
| File Size | 1.86 MB |
| Published | June 26, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
What steps should I follow to install necessary drivers?
Go to Dell.com/support, select your support category, and follow the instructions by selecting, downloading, and double-clicking the relevant driver file.
Where can I find contact information if I lack an internet connection?
Contact information can be found on your purchase invoice, packing slip, bill, or Dell product catalog.
What should I check before installing key drivers like chipset or audio?
Always verify if the drivers for that component (e.g., Intel chipset or Audio) are already installed in the system to avoid conflicts.
