Dell OptiPlex 3090 Ultra All-in-One Bundle Setup and Specifications
Summary
Setup and specifications guide for the Dell OptiPlex 3090 Ultra All-in-One Bundle (regulatory model D13U, type D13U003), covering device installation, stand tilt/pivot/swivel adjustment, Dell power button sync functionality, and USB recovery drive creation for Windows. Includes front/back/bottom views with port identification and detailed system specifications. Designed for IT administrators deploying this compact enterprise AIO form factor released in June 2021.
Page 1 Text Content
Opti Plex 3090 Ultra All-in-One Bundle Setup and Specifications
Regulatory Model: D13U Regulatory Type: D13U003 June 2021 Rev. A00
Page Summary Contents For Dell OptiPlex 3090 Ultra All-in-One Bundle Setup and Specifications

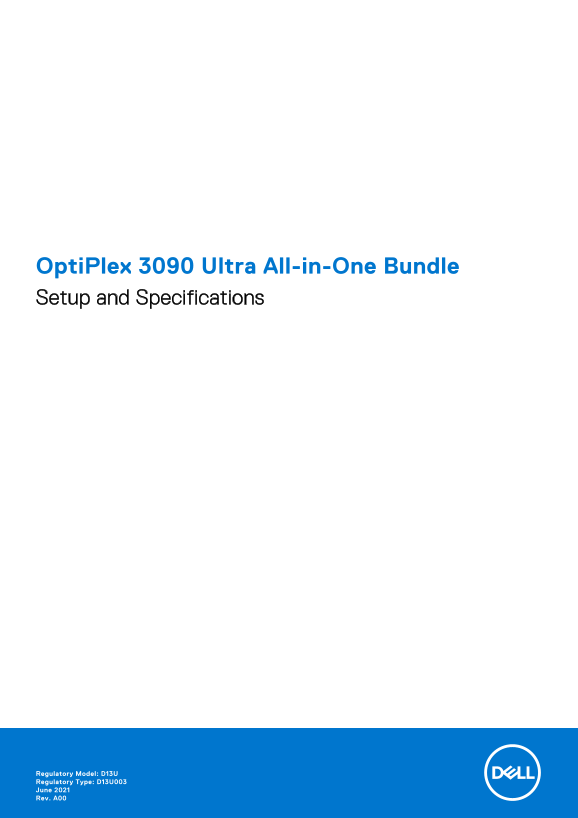

Page 1
Opti Plex 3090 Ultra All-in-One Bundle Setup and Specifications Regulatory Model: D13U Regulatory Type: D13U003 June 2021 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your Opti Plex 3090 Ultra All-in-One Bundle....................................................... Installing the device........................................................
Page 4
Set up your Opti Plex 3090 Ultra All-in-One Bundle Installing the device 1. Align and insert the slots on the stand into the tab on the stand base. 2. Lift and tilt the stand base. 3. Tighten the capt...
Page 5
5. Open the packaging from one side, to install the stand to the monitor. 6. Align and insert the hooks on the mounting bracket on the stand into the slots on the monitor, until you hear a click. 7. R...
Page 6
8. Connect the USB Type-C cable of the Opti Plex device to the USB Type-C port on the monitor. Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 7
9. Connect the keyboard cable, mouse cable, and network cable to the monitor. Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 8
10. Connect the monitor power cord to the power port. Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 9
11. Power On the computer. NOTE: To enable the Dell power button sync between the monitor and the computer, press the power button on the monitor first and then press the power button on the computer....
Page 10
NOTE: When connecting the Opti Plex device and the monitor for the next time, press the monitor power button, both the monitor and computer will turn On. Set up your Opti Plex 3090 Ultra All-in-One Bu...
Page 11
NOTE: For more information on Dell power button sync feature, see Dell power button sync. 12. Lock the device and the stand cover. Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 12
Stand tilt, pivot, and swivel images Monitor rotate: Monitor tilt: Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 13
Monitor swivel: Set up your Opti Plex 3090 Ultra All-in-One Bundle
Page 14
Powering the system This system can be powered using a 65 W adapter (4.5 mm input power source) or through the USB Type-C cable connected to a display capable of providing power delivery of 65 W or gr...
Page 15
Dell power button sync The C-series monitors are enabled with Dell power button sync feature to control computer power state from monitor power button. This feature is compatible with Dell Opti Plex 3...
Page 16
Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to c...
Page 17
Views of Opti Plex 3090 Ultra All-in-One Bundle Back view 1. Monitor 2. Height Adjustable Stand 3. Power button status light 4. Power button 5. Joystick Views of Opti Plex 3090 Ultra All-in-One Bundle
Page 18
Bottom view 1. Security lock slot 2. Power port connector 3. HDMI port 4. Display Port in 5. USB Type-C upstream/Display Port 6. Display Port out 7. USB-B upstream port 8. Two super speed USB 5 Gbps (...
Page 19
1. Microphones 2. IR LED 3. Webcam lens 4. Webcam LED indicator Front controls: 1. Teams button and LED 2. Hookswitch and LED 3. Volume down and LED 4. Volume up and LED 5. Microphone mute and LED Vie...
Page 20
Left and right view 1. Power button 2. Stand release button 3. Security screw hole to secure stand cover 4. Service tag label 5. Headset/Universal audio jack 6. USB 3.2 Gen 2 Type-A port 7. USB 3.2 Ge...
Page 21
Specifications of Opti Plex 3090 Ultra All-in- One Bundle External ports and connectors The following table lists the external ports and connectors of your Opti Plex 3090 Ultra All-in-One Bundle. Tabl...
Page 22
Dimensions and weight The following table lists the height, width, depth, and weight of your Opti Plex 3090 Ultra All-in-One Bundle. Table 3. Dimensions and weight Description Values Height Minimum: 3...
Page 23
Getting help Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provid...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 23 |
| File Size | 12.58 MB |
| Published | June 15, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I set up the stand to the monitor?
Align and insert the hooks on the mounting bracket on the stand into the slots on the monitor until you hear a click.
What is the Dell power button sync procedure?
To enable it, press the power button on the monitor first, and then press the power button on the computer.
What are the dimensional specifications of the unit?
The width is 538.40 mm and the depth is 185.00 mm; the height is adjustable between 364.00 mm and 514.00 mm.
