Dell OptiPlex 7490 All-in-One Setup Guide and Specifications
Summary
The Dell OptiPlex 7490 All-In-One is a business-class integrated desktop computer featuring a sleek design with a retractable camera and comprehensive port selection. The setup and specifications guide covers initial configuration, physical views, hardware specifications, regulatory information, and troubleshooting steps. It details processor options, memory configurations, storage capabilities, display features, and connectivity options. This manual is designed for business users, IT administrators, and office professionals who need a reliable, space-saving desktop solution for enterprise environments.
Page 1 Text Content

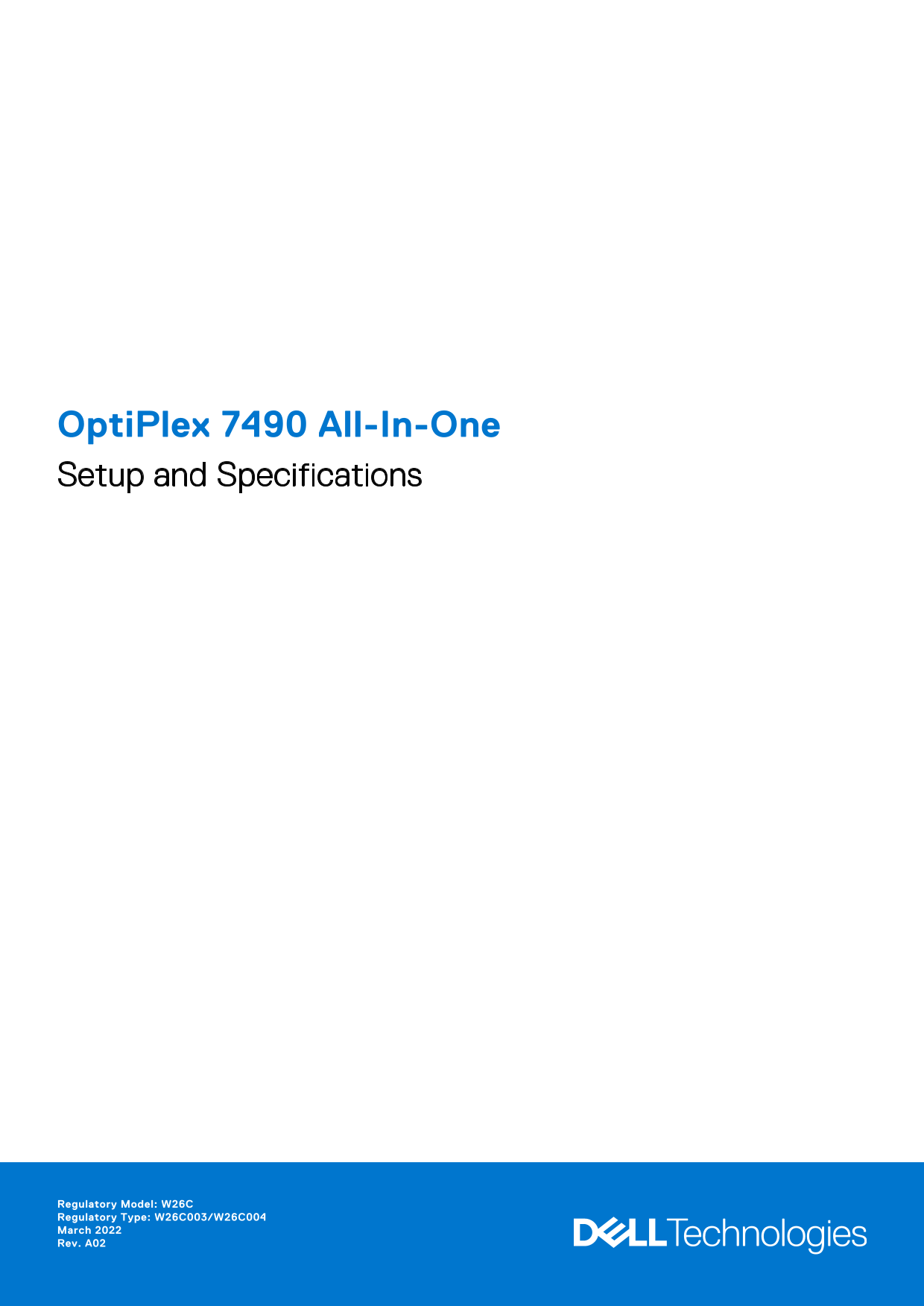

Opti Plex 7490 All-In-One Setup and Specifications
Regulatory Model: W26C Regulatory Type: W26C003/W26C004 March 2022 Rev. A02
Page Summary Contents For Dell OptiPlex 7490 All-in-One Setup Guide and Specifications
Page 1
Opti Plex 7490 All-In-One Setup and Specifications Regulatory Model: W26C Regulatory Type: W26C003/W26C004 March 2022 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your Opti Plex 7490 All-in-One........................................................................... Chapter 2: Views of Opti Plex 7490 All-in-One.........................
Page 4
Set up your Opti Plex 7490 All-in-One NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Set up the stand. Figure 1. Articulating stand Set ...
Page 5
Figure 2. Fixed stand Set up your Opti Plex 7490 All-in-One
Page 6
Figure 3. Height Adjustable Stand NOTE: Follow the same procedure to install the Height Adjustable Stand with Optical Disk Drive. 2. Set up the keyboard and mouse. NOTE: For setup instructions, see th...
Page 7
3. Route the power cable through the stand, then connect the power cable. Set up your Opti Plex 7490 All-in-One
Page 8
4. Press the power button. Set up your Opti Plex 7490 All-in-One
Page 9
5. Finish operating system setup. For Ubuntu: Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resour...
Page 10
If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account. On the Support and Protection screen, enter your contact details....
Page 11
Table 1. Locate Dell apps (continued) Resources Description Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about ...
Page 12
Views of Opti Plex 7490 All-in-One 1. Full HD webcam 2. Camera-status light 3. Display 4. Speakers 5. Power button/power-status indicator 6. Array microphones Views of Opti Plex 7490 All-in-One
Page 13
Retractable camera NOTE: Depending on the configuration ordered, your computer will have only RGB camera or both RGB camera and Infrared camera. 1. Full HD camera 2. Infrared camera 3. Infrared emitte...
Page 14
1. SD 4.0 card slot 2. USB 3.2 Gen 2x2 capable Type-C port 3. Universal audio port 4. USB 3.2 Gen 1 port with Power Share Views of Opti Plex 7490 All-in-One
Page 15
1. Hard-drive status indicator Views of Opti Plex 7490 All-in-One
Page 16
1. Back cover 2. Stand cover 3. Kensington security-cable slot 4. Bottom cover 5. Stand Views of Opti Plex 7490 All-in-One
Page 17
1. Cable cover screw hole 2. HDMI-IN—HDMI 1.4 port 3. HDMI-OUT—HDMI 2.0 port 4. DP++ 1.4a/HDCP 2.3 port 5. RJ-45 Ethernet port 6. USB 3.2 Gen 2 ports with Smart Power On 7. USB 3.2 Gen 2 ports 8. Line...
Page 18
1. Display Built-in Self Test button This button has two functions: When the computer is on, use this button to select the video input-source. Press the button to switch the display between the intern...
Page 19
1. Wireless card 2. System board 3. Camera assembly 4. Heat sink 5. M.2 2230/2280 solid-state drive/Intel Optane PCIe connector 6. Processor fan 7. Memory modules 8. Hard drive 9. M.2 2230/2280 solid-...
Page 20
System board layout 1. Power-supply unit (PSU) cable connector 2. Coin-cell battery 3. Display back-light cable connector 4. Camera cable connector 5. M.2 2230/2280 solid-state drive/Intel Optane PCIe...
Page 21
Specifications of Opti Plex 7490 All-in-One Dimensions and weight The following table lists the height, width, depth, and weight of your Opti Plex 7490 All-in-One. Table 2. Dimensions and weight Descr...
Page 22
Table 3. Processor (continued) Processor type Process Process Processor Processor Processo Integrated graphics or or core thread speed r cache wattage count count 10th Generation Intel Core 65 W 3.20 ...
Page 23
Table 4. Chipset (continued) Description Values Non-volatile memory Yes BIOS configuration Serial Peripheral Interface (SPI) 256 Mbit (32 MB) located at SPI_FLASH Trusted Platform Module (TPM) 2.0 (Di...
Page 24
Table 5. Memory specifications (continued) Description Values 16 GB, 1 x 16 GB, 2666 MHz for 10th Generation i3/i5 processors, 2933 MHz for 10th Generation i7/i9 processors, 3200 MHz for 11th Generati...
Page 25
Table 7. External ports (continued) Description Values Video port One DP++ 1.4a/HDCP 2.3 port (rear) One HDMI-IN—HDMI 1.4 port (rear) One HDMI-OUT—HDMI 2.0 port (rear) Media-card reader One SD 4.0 car...
Page 26
Table 10. Wireless module specifications (continued) Description Option one Option two Wi-Fi 5 (Wi Fi 802.11ac) Wi-Fi 5 (Wi Fi 802.11ac) Wi-Fi 6 (Wi Fi 802.11ax) Encryption 64-bit/128-bit WEP 64-bit/1...
Page 27
Table 12. Storage matrix (continued) Storage type 2.5-inch hard drive 1st M.2 socket 2nd M.2 socket One M.2 2230/2280 solid- Yes Yes No state drive and one 2.5- inch hard-disk drive Dual M.2 2230/2280...
Page 28
Table 14. Intel Optane memory (continued) Description Values Configurations supported 32GB + 512GB SSD Capacity Up to 512 GB Media-card reader The following table lists the media cards supported by yo...
Page 29
Table 17. Full HD RGB Webcam Description Values Number of cameras One Camera type FHD RGB camera Camera location Front camera Camera sensor type CMOS sensor technology Camera resolution: Still image 2...
Page 30
Table 18. Power ratings (continued) Description Option one Option two Energy Star 8.0 qualified Yes Yes FEMP Standby Power Yes Yes compliant Power supply connectors The following table provides inform...
Page 31
Table 20. Display specifications (continued) Description Values for touch display Values for non-touch display Horizontal view angle 170 degrees (minimum) 170 degrees (minimum) 178 degrees (typical) 1...
Page 32
Environmental Table 23. Environmental specifications Feature Values Recyclable packaging Yes BFR/PVC—free chassis No Vertical orientation packaging support Yes Multi-Pack packaging No Energy-Efficient...
Page 33
Table 25. Computer environment (continued) Description Operating Storage Shock (maximum) Altitude range 0 m to 3048 m (0 ft to 10000 ft) 0 m to 10668 m (0 ft to 35000 ft) CAUTION: Operating and storag...
Page 34
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 26. Self-help resources Self-help resources R...
