Dell Monitor C3422WE Teardown Instructions
Summary
This disassembly guide provides step-by-step teardown procedures for the Dell C3422WE curved monitor. It covers removing the rear cover, stand, base, USB board, joystick board, bracket, heat sink, and panel assembly using specific screw sizes and torque specifications. The document includes detailed illustrations for each disassembly step with screw location references. Intended for Dell-authorized service technicians performing hardware repair or component replacement on the C3422WE display.

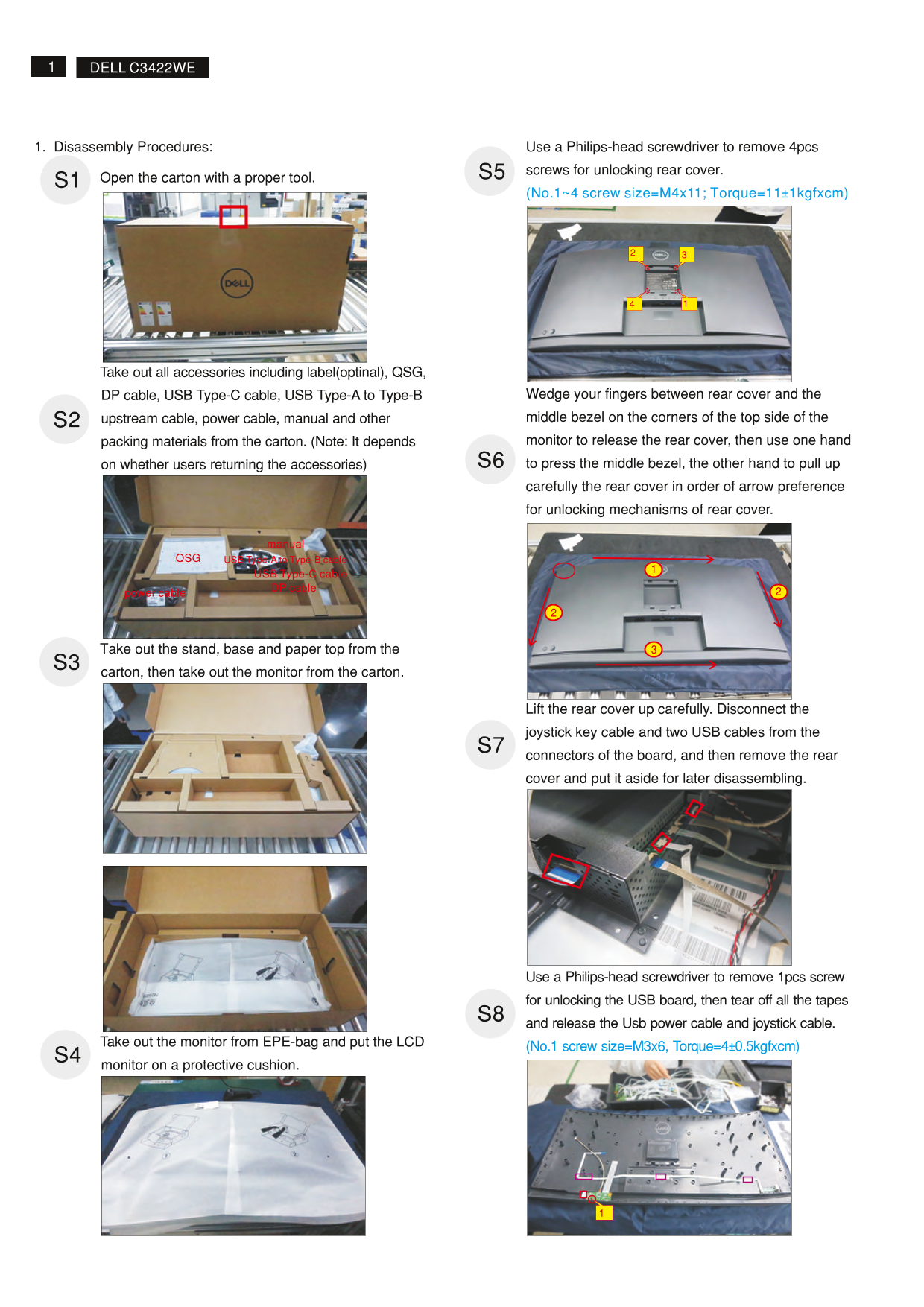

Page 1 Text Content
DELL C3422WE
1. Disassembly Procedures: Use a Philips-head screwdriver to remove 4pcs S5 screws for unlocking rear cover.
Open the carton with a proper tool. S1
(No.1~4 screw size=M4x11; Torque=11±1kgfxcm)
Take out all accessories including label(optinal), QSG,
DP cable, USB Type-C cable, USB Type-A to Type-B Wedge your fingers between rear cover and the upstream cable, power cable, manual and other middle bezel on the corners of the top side of the
packing materials from the carton. (Note: It depends monitor to release the rear cover, then use one hand on whether users returning the accessories) S6 to press the middle bezel, the other hand to pull up carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover.
manual
QSG USB Type-A to Type-B cable
USB Type-C cable DP cablepower cable
Take out the stand, base and paper top from the S3 carton, then take out the monitor from the carton.
Lift the rear cover up carefully. Disconnect the joystick key cable and two USB cables from the S7 connectors of the board, and then remove the rear cover and put it aside for later disassembling.
Use a Philips-head screwdriver to remove 1pcs screw for unlocking the USB board, then tear off all the tapes S8 and release the Usb power cable and joystick cable.
Take out the monitor from EPE-bag and put the LCD
(No.1 screw size=M3x6, Torque=4±0.5kgfxcm)
S4 monitor on a protective cushion.
Page Summary Contents For Dell Monitor C3422WE Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 6 |
| File Size | 1.54 MB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are required for disassembly?
Philips-head screwdrivers (#1, #2), a penknife, and soldering iron/absorber are needed.
How should I handle the rear cover during teardown?
Carefully use fingers to wedge between the rear cover and cables (DP, USB Type-C) at the top corners for release.
What process is required for removing capacitors from the PCB?
Cut the glue sealing the bulk cap using a knife, lifting the capacitor gently without touching the PCB or bulk cap.
Does disposal require separating certain components?
Yes. Components like PCBs/PCT, electrolyte capacitors, and LCD displays must be disposed of separately per EU directive regulations.
