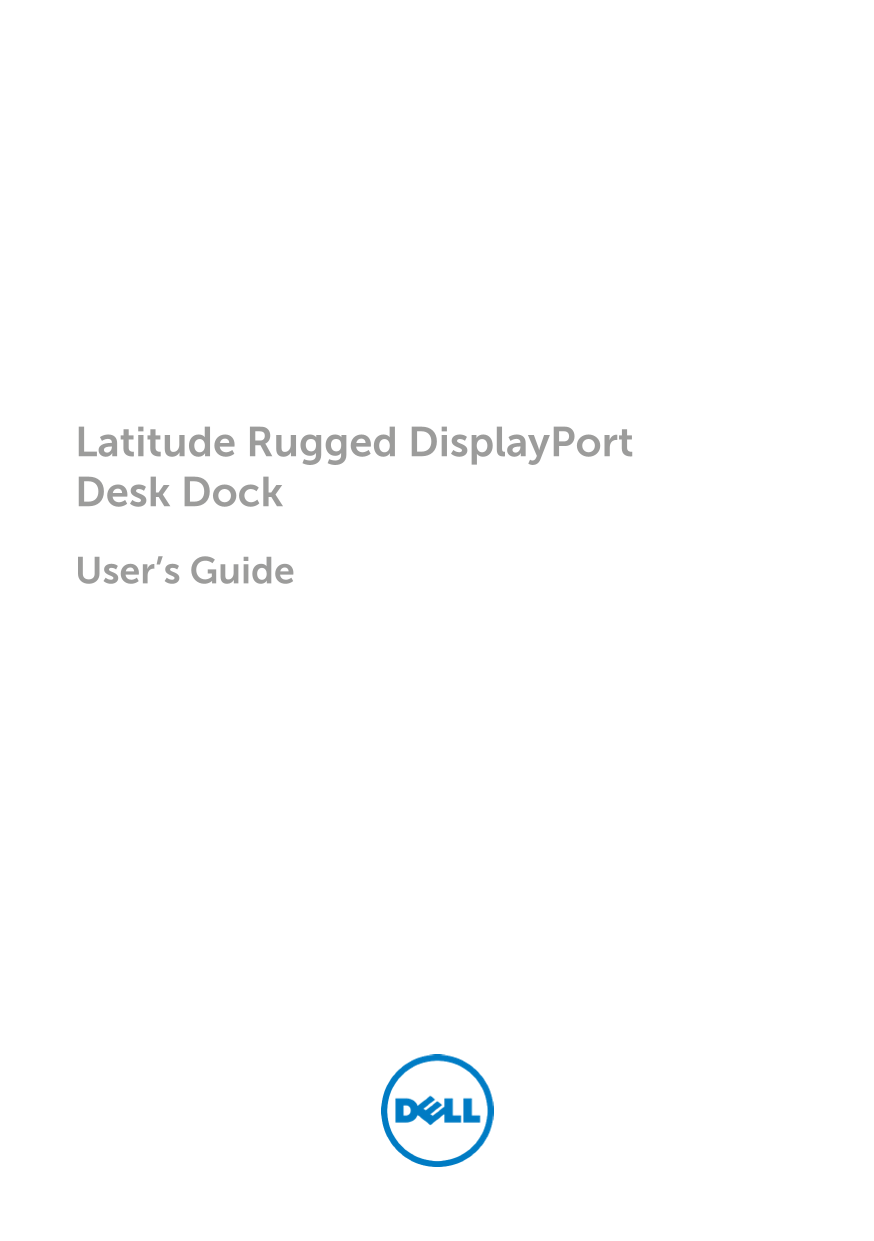

Page 1
Latitude Rugged Display Port Desk Dock User’s Guide
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1. About Your Latitude Rugged Display Port Desk Dock ...........................................................5 2. Adjusting the Latitude Rugged Display Port Desk Dock.........................
Page 5
About your Latitude Rugged Display Port Desk Dock The Latitude Rugged Display Port Desk Dock docking device supports the Dell Rugged Family of laptop computers, but is not compatible with any previous...
Page 6
1. Eject button 12. Serial connector 2. Power button 13. VGA connector 3. Audio connector 14. Display Port connectors (2) 4. Microphone connector 15. Security cable slot 5. USB 2.0 connector 16. USB 3...
Page 7
Adjusting the Latitude Rugged Display Port Desk Dock CAUTION: If the Latitude Rugged Display Port Desk Dock is not adjusted to the correct position for your specific laptop, damage to laptop or Latitu...
Page 8
2 Hold Latitude Rugged Display Port Desk Dock against desktop and slide front hook tray out by pulling from center opening until the correct letter designation is visible in both position setting indi...
Page 9
Using the Latitude Rugged Display Port Desk Dock WARNING: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer. Setting up your Latitu...
Page 10
Docking your laptop CAUTION: Always use the Dell AC adapter that came with the Latitude Rugged Display Port Desk Dock. If you use any other commercially available AC adapter, you may damage the Latitu...
Page 11
NOTE: You can dock your laptop regardless of whether it is turned on or off. 3 With the rear of the laptop elevated, load the front of the laptop into the Latitude Rugged Display Port Desk Dock by ali...
Page 12
Securing the Latitude Rugged Display Port Desk Dock Anti-theft devices usually include a segment of metal-stranded cable with an attached locking device and associated key (available at dell.com). For...
Page 13
Latitude Rugged Display Port Desk Dock laptop power and docking status The Rugged Desk Dock power button is used to turn a docked laptop on or off. The power button light indicates the power status of...
Page 14
Using the Latitude Rugged Display Port Desk Dock with three monitors 1. Display Port connector (2) 2. VGA connector You can use your Latitude Rugged Display Port Desk Dock for triple monitor display. ...
Page 15
Undocking your laptop 1. eject button Press the eject button to undock the laptop from the Latitude Rugged Display Port Desk Dock, then lift the rear of the laptop away from the Latitude Rugged Displa...
Page 16
Specifications Physical Height 67.2 mm (2.64 inches) Depth 277.5 mm (10.93 inches) Width 304.8 mm (12.00 inches) System level operational specifications Serial (DTE) one 9-pin connectors, 16550-compat...
Page 17
Finding information Documents Contents Safety, Regulatory, Warranty, and Support • Warranty information Documentation • Safety instructions This type of information may have shipped • Regulatory infor...
Page 18
Glossary AC — alternating current — The form of electricity that powers your computer when you plug the AC adapter power cable in to an electrical outlet. Display Port — An interface standard of the V...
