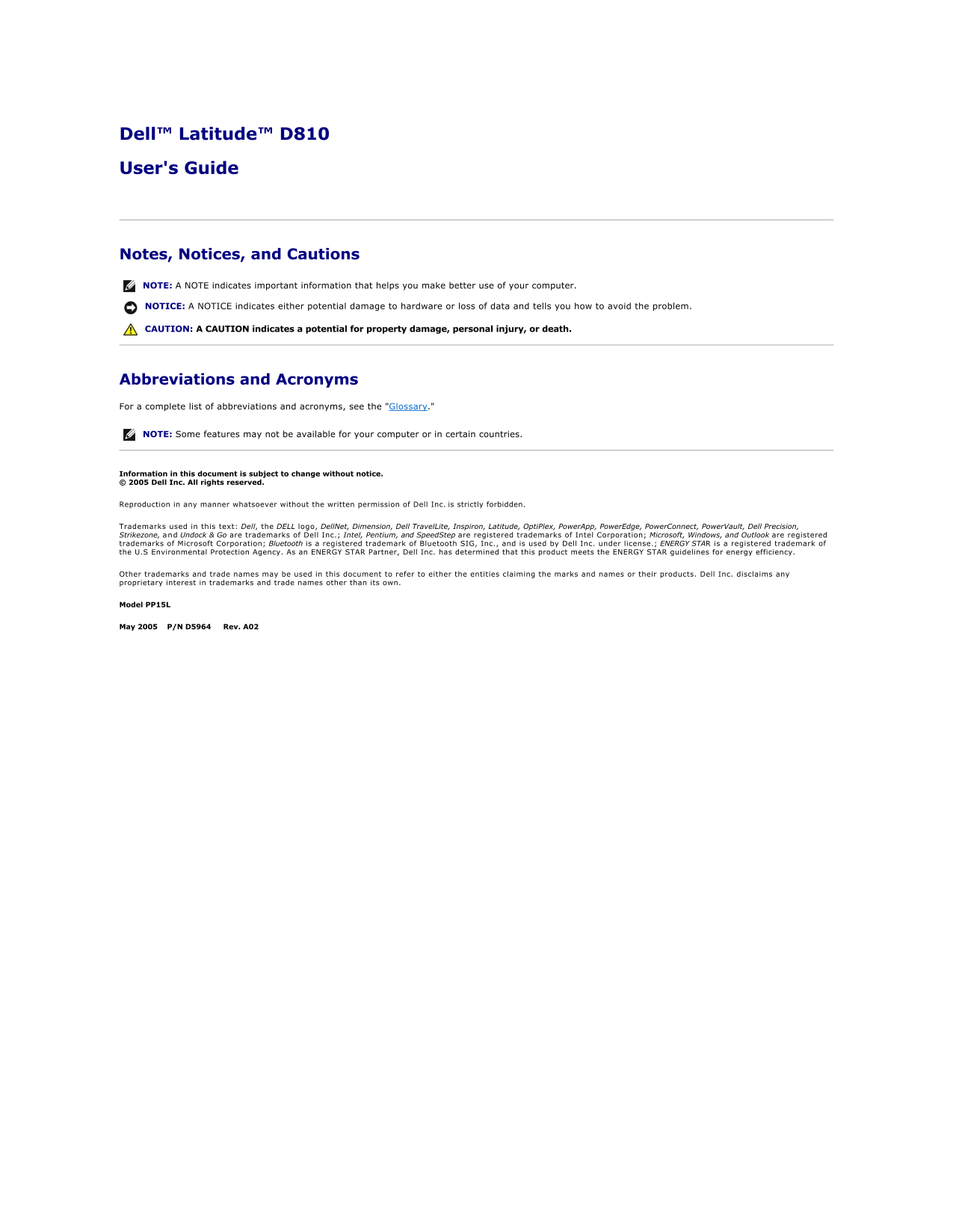

Dell™ Latitude™ D810  User's Guide

Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms For a complete list of abbreviations and acronyms, see the "Glossary." NOTE: Some features may not be available for your computer or in certain countries. Information in this document is subject to change without notice. © 2005 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, Dell Net, Dimension, Dell Travel Lite, Inspiron, Latitude, Opti Plex, Power App, Power Edge, Power Connect, Power Vault, Dell Precision, Strikezone, and Undock & Go are trademarks of Dell Inc.; Intel, Pentium, and Speed Step are registered trademarks of Intel Corporation; Microsoft, Windows, and Outlook are registered trademarks of Microsoft Corporation; Bluetooth is a registered trademark of Bluetooth SIG, Inc., and is used by Dell Inc. under license.; ENERGY STAR is a registered trademark of the U.S Environmental Protection Agency. As an ENERGY STAR Partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model PP15L May 2005    P/N D5964     Rev. A02

Page Summary Contents For Dell Latitude D810 User's Guide

Page 1 Dell™ Latitude™ D810  User's Guide Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potentia...
Page 2 About Your Computer   Determining Your Computer's Configuration   Front View   Left Side View   Right Side View   Back View   Bottom View Based on selections that you made when purchasing your compute...
Page 3 1 display latch 8 speakers 2 display 9 track stick/touch pad buttons 3 power button 10 track stick 4 device status lights 11 volume control buttons 5 keyboard 12 mute button 6 touch pad 13 keyboard st...
Page 4 Turns on when you turn on the computer. Turns on when the computer reads or writes data.  NOTICE: To avoid loss of data, never turn off the computer while the light is flashing. Turns on steadily or b...
Page 5 <Fn><F2>. Turns on when the uppercase letter function is enabled. Turns on when a card with Bluetooth® wireless technology is enabled. NOTE: The card with Bluetooth wireless technology is ...
Page 6 PC Card slot — Supports one PC Card, such as a modem or network adapter. The computer ships with a plastic blank installed in the slot. For more information, see "Using PC Cards." smart card...
Page 7 1 air vent 6 S-video TV-out connector 2 infrared sensor 7 serial connector 3 network connector (RJ-45) 8 video connector 4 modem connector (RJ-11) 9 AC adapter connector 5 USB 2.0 connectors (2) 10 pr...
Page 8 serial connector Connects serial devices, such as a mouse or handheld device. video connector Connects an external monitor. For more information, see "Using the Display." AC adapter connecto...
Page 9 1 battery 4 air vent 2 battery-bay latch release 5 docking device slot 3 memory module cover 6 processor fan air vent battery — When a battery is installed, you can use the computer without connecting...
Page 10 Appendix   Macrovision Product Notice   FCC Notices (U.S. Only) Macrovision Product Notice This product incorporates copyright protection technology that is protected by method claims of certain U.S. ...
Page 11 Model number: PP15L Company name: Dell Inc. One Dell Way Round Rock, Texas 78682 USA 512-338-4400
Page 12 Alert Standard Format (ASF) Alert Standard Format (ASF) is a Distributed Management Task Force (DMTF) management standard that specifies "pre-operating system" or "operating system abse...
Page 13 Using a Battery   Battery Performance   Checking the Battery Charge   Charging the Battery   Removing a Battery   Installing a Battery   Storing a Battery Battery Performance CAUTION: Before you begin...
Page 14 If Dell Quick Set is installed, press <Fn><F3> to display the Quick Set Battery Meter. The Battery Meter window displays status, charge level, and charge completion time for the battery in...
Page 15 Charging the Battery NOTE: With Dell™ Express Charge™, when the computer is turned off, the AC adapter charges a completely discharged battery to 80 percent in about 1 hour and to 100 percent in appro...
Page 16 Using the Module Bay   About the Module Bay   About the Device Security Screw   Removing and Installing Devices While the Computer Is Turned Off   Removing and Installing Devices While the Computer Is...
Page 17 1. If the device security screw is installed, remove it. 2. Press the device latch release. 3. Pull the device out of the module bay. 4. Push the new device into the bay until it clicks. 5. Press the ...
Page 18 5. Push the new device into the bay until it clicks. The operating system automatically recognizes the device. 6. Press the device latch release. 7. If necessary, enter your password to unlock your co...
Page 19 Using CDs, DVDs, and Other Module Bay Devices   Playing a CD or DVD   Adjusting the Volume   Adjusting the Picture   Connecting Your Computer to a TV or Audio Device Playing a CD or DVD NOTICE: Do not...
Page 20 For more information on volume control options, click Help in the Volume Control window. The Volume Meter displays the current volume level, including mute, on your computer. Either right-click the ic...
Page 21 Connecting Your Computer to a TV or Audio Device NOTE: Video and audio cables for connecting your computer to a TV or other audio device are not included with your computer. Cables may be purchased at...
Page 22 1 TV/digital audio adapter cable 2 S-video cable 3 standard audio cable 1. Turn off the computer and the TV and/or audio device that you want to connect. NOTE: You can connect an S-video cable directl...
Page 23 1 TV/digital audio adapter cable 2 S-video cable 3 S/PDIF digital audio cable 1. Turn off the computer and the TV and/or audio device that you want to connect. 2. Connect the TV/digital audio adapter ...
Page 24 1 TV/digital audio adapter cable 2 composite video cable 3 standard audio cable 1. Turn off the computer and the TV and/or audio device that you want to connect. 2. Connect the TV/digital audio adapte...
Page 25 1 TV/digital audio adapter cable 2 composite video cable 3 S/PDIF digital audio cable 1. Turn off the computer and the TV and/or audio device that you want to connect. 2. Connect the TV/digital audio ...
Page 26 Setting Up the Dolby Headphone NOTE: The Dolby headphone feature is available only if your computer has a DVD drive. 1. Double-click the Intervideo Win DVD icon on the Windows desktop. 2. Click the Pr...
Page 27 Cleaning Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide. Computer, Keyboard, and Display CAUTION...
Page 28 Using the Dell Diagnostics CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide. When to Use the Dell Diagnostics If...
Page 29 NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer boots according to the devices specified in system setup. 3. When the boot device list appears, high...
Page 30 Using the Display   Adjusting Brightness   Switching the Video Image   Setting Display Resolution   Dual Independent Display Mode   Large Desktop Display Mode   Swapping Primary and Secondary Displays...
Page 31 Before you change any of the default display settings, make a note of the default settings for future reference. NOTE: Use only the Dell-installed video drivers, which are designed to offer the best p...
Page 32 Microsoft Windows 2000 NOTE: This software may not be available in certain countries. The Windows 2000 operating system does not natively support dual independent display (extended desktop) mode on yo...
Page 33 Reinstalling Software   Drivers   Resolving Software and Hardware Incompatibilities   Using Microsoft® Windows® XP System Restore   Reinstalling Microsoft® Windows® XP   Reinstalling Windows 2000 Driv...
Page 34 1. Click the Start button, point to Settings, and then, click Control Panel. 2. Under Pick a Category, click Performance and Maintenance. 3. Click System. 4. In the System Properties window, click the...
Page 35 If you install a new device driver that causes system instability, you can use the Windows XP Device Driver Rollback to replace the new device driver with the previously installed version of the devic...
Page 36 Using Microsoft® Windows® XP System Restore The Microsoft® Windows® XP operating system provides System Restore to allow you to return your computer to an earlier operating state (without affecting da...
Page 37 Reinstalling Microsoft® Windows® XP NOTICE: You must use Windows XP Service Pack 1 (SP1) or later when you reinstall Windows XP. Before You Begin If you are considering reinstalling the Windows XP ope...
Page 38 7. Enter your name and organization (optional) in the Personalize Your Software screen, and click Next. 8. At the Computer Name and Administrator Password window, enter a name for your computer (or ac...
Page 39 7. When the Regional Settings window appears, select your region, and then click Next. 8. Enter your name and organization in the Personalize Your Software window and click Next. 9. Enter the Windows ...
Page 40 Finding Information NOTE: Some features may not be available for your computer or in certain countries. NOTE: Additional information may ship with your computer. What Are You Looking For? Find It Here...
