Dell™ Latitude™ D520
Quick Reference Guide
Model PP17L
Page Summary Contents For Dell Latitude D520 Quick Reference Guide
Page 1

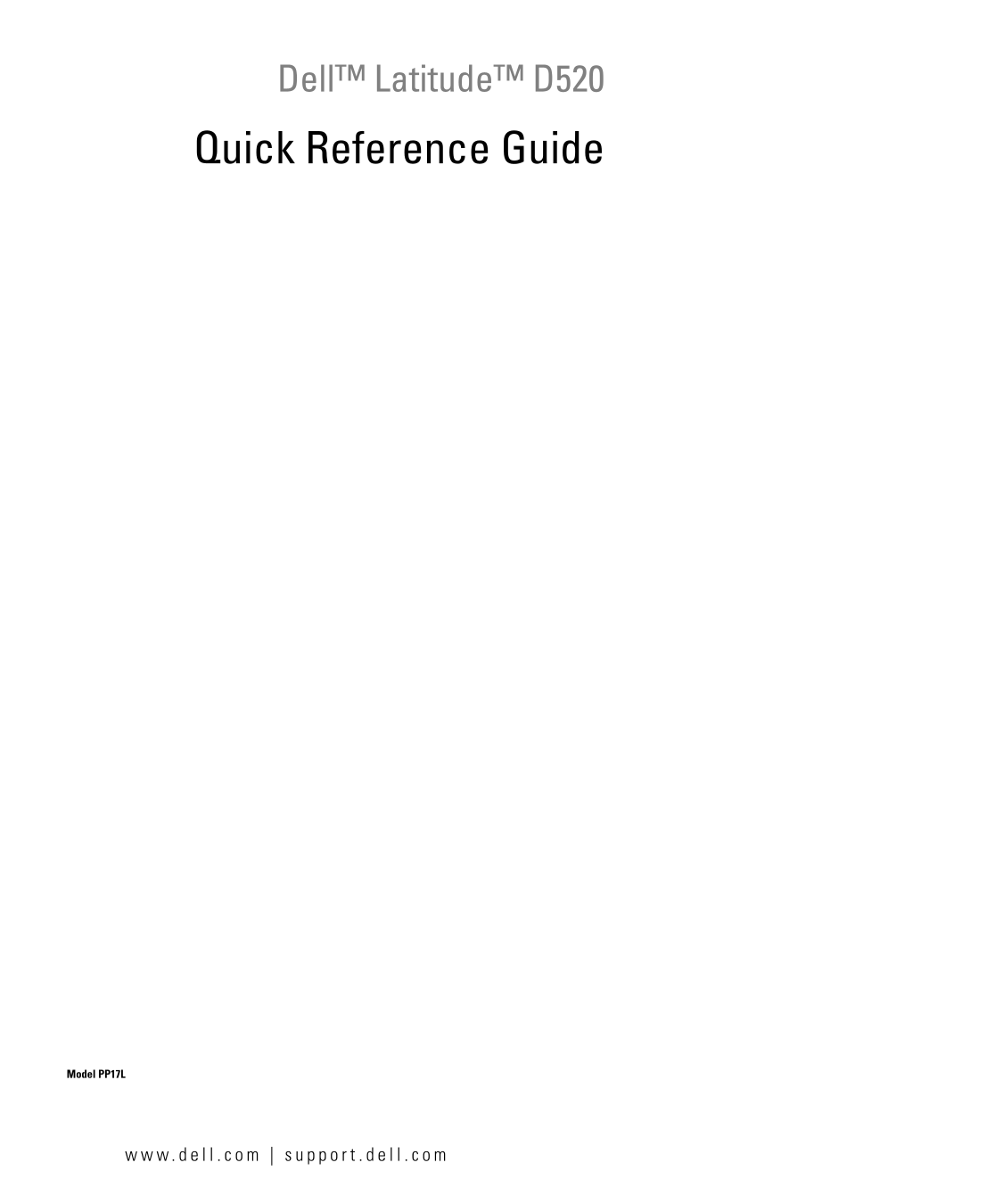

Dell™ Latitude™ D520 Quick Reference Guide Model PP17L
Page 2
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of dat...
Page 3
Contents Finding Information Setting Up Your Computer . About Your Computer. Front View Left Side View Right Side View Back View Bottom View Using a Battery Battery Performance . Checking the Battery ...
Page 4
Contents
Page 5
Finding Information NOTE: Some features or media may be optional and may not ship with your computer. Some features or media may not be available in certain countries. NOTE: Additional information may...
Page 6
What Are You Looking For? Find It Here How to remove and replace parts Dell Latitude™ User’s Guide Specifications Microsoft Windows XP Help and Support Center How to configure system settings Click St...
Page 7
What Are You Looking For? Find It Here Solutions — Troubleshooting hints and tips, articles Dell Support Website — support.dell.com from technicians, online courses, and frequently asked NOTE: Select ...
Page 8
What Are You Looking For? Find It Here Information on network activity, the Power Management Dell Quick Set Help Wizard, hotkeys, and other items controlled by Dell To view Dell Quick Set Help, right-...
Page 9
Setting Up Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. Unpack the accessories box. Set aside the con...
Page 10
About Your Computer Front View display device status lights keyboard touch pad display latch speakers touch pad buttons keyboard status lights power button Quick Reference Guide
Page 11
Left Side View security cable slot IEEE 1394 connector PC Card/Express Card slot infrared sensor audio connectors (2) hard drive Right Side View media bay device latch release USB connectors (2) Back ...
Page 12
USB connectors (2) modem connector (RJ-11) network connector (RJ-45) S-video TV-out connector serial connector video connector AC adapter connector air vents Bottom View memory module/modem/WLAN batte...
Page 13
Using a Battery Battery Performance NOTE: For information about the Dell warranty for your computer, see the Product Information Guide or separate paper warranty document that shipped with your comput...
Page 14
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to temperatures above 60°C (140°F). Keep the battery away...
Page 15
To check the battery health using the charge gauge, press and hold the status button on the battery charge gauge for at least 3 seconds. If no lights appear, the battery is in good condition, and more...
Page 16
NOTICE: You must remove all external cables from the computer to avoid possible connector damage.For information about replacing the second battery, which is located in the media bay, see "Using ...
Page 17
Troubleshooting Lockups and Software Problems CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. The computer does not st...
Page 18
Other software problems CHECK THE SOFTWARE DOCUMENTAT ION OR CONTACT THE SOFTWARE MANUFACTURER FOR TROUBLESHOOT ING INFORMATION Ensure that the program is compatible with the operating system installe...
Page 19
Starting the Dell Diagnostics From Your Hard Drive The Dell Diagnostics is located on a hidden diagnostic utility partition on your hard drive. NOTE: If your computer cannot display a screen image, co...
Page 20
When the boot device list appears, highlight CD/DVD/CD-RW Drive and press <Enter>. Select the Boot from CD-ROM option from the menu that appears and press <Enter>. Type 1 to start the menu...
Page 21
Tab Function Help Describes the test and may indicate requirements for running the test. Configuration Displays your hardware configuration for the selected device. The Dell Diagnostics obtains config...
Page 22
Quick Reference Guide
Page 23
Index Dell Diagnostics (continued) help file starting from the hard Windows Help and Support anti-virus software, drive, Center, using, Dell support site, diagnostics battery Dell, labels charge gauge...
Page 24
Index problems (continued) software, 17-18 troubleshooting spyware, Dell Diagnostics, Product Information Guide, Help and Support Center, lockups and software problems, Quick Set Help, User’s Guide, r...
Page 25
Dell™ Latitude™ D520 型号 PP17L
Page 26
缩写和缩写词 对于缩写和缩写词的完整列表，请参阅您的《用户指南》中的“词汇表”。 如果您购买了 Dell™ n 系列计算机，本说明文件中的任何有关 Microsoft Windows 操作系统的参考都将 不适用。 本说明文件中的信息如有更改，恕不另行通知。 Dell Inc. 版权所有，翻印必究。 未经 Dell Inc. 书面许可，严禁以任何方式进行复制。 本文件中使用的商标： Dell、 DE...
Page 27
故障排除 锁定和软件问题 Dell 诊断程序.
Page 29
适用于我的计算机的诊断程序 Drivers and Utilities CD（也称为 Resource CD） 适用于我的计算机的驱动程序 : Drivers and Utilities CD 可能为可选项，并且可能不会 笔记本电脑系统软件 (NSS) 您的计算机已经安装了说明文件和驱动程序。 您可以使 用 CD 来重新安装驱动程序（请参阅《用户指南》中的 “重新安装驱动程序和公用程序”） 或运行...
Page 30
服务标签和快速服务代码 服务标签和 Microsoft® Windows® 许可证 Microsoft Windows 许可证标签 这些标签位于您的计算机上。 当您使用 support.dell.com 或联系支持部门时，请使用 “服务标签”来标识您的计算机。 解决方案 — 故障排除提示和技巧、技术人员的文章、 Dell 支持 Web 站点 — support.dell.com 在线课程和常见问题...
Page 31
如何使用 Windows XP Windows 帮助和支持中心 如何使用程序和文件 1单击 Start（开始）→ Help and Support（帮助和支 有关由 Dell Quick Set 控制的网络活动、电源管理向 Dell Quick Set 帮助 导、热键和其它项目的信息。 要查看 Dell Quick Set Help（Dell Quick Set 帮助），在 Microsoft® ...
Page 32
安装计算机 警告 : 在开始执行本节中的任何步骤之前，请遵循《产品信息指南》中的安全说明。 打开附件箱。 将附件箱中的物品放在一边，您将需要使用它们来完成计算机的安装。 附件箱中还包含用户说明文件以及您所订购的任何软件或附加硬件（如 PC 卡、驱动器或电 池）。 将交流适配器分别连接到计算机上的交流适配器连接器和电源插座上。
Page 34
安全缆线插槽 IEEE 1394 连接器 PC 卡 /Express Card 插槽 红外线传感器 音频连接器（2 个） 硬盘驱动器 介质托架 设备释放闩锁 USB 连接器（2 个）
Page 35
USB 连接器（2 个） 调制解调器连接器 (RJ-11) 网络连接器 (RJ-45) S 视频电视输出连接器 串行连接器 视频连接器 交流适配器连接器 通风孔 内存模块 /调制解调器 /WLAN 电池槽释放闩锁 电池电量表 小型卡 /币形电池盖板 电池 对接设备插槽 通风孔 硬盘驱动器
Page 36
使用电池 电池性能 : 有关 Dell 对您的计算机的担保的信息，请参阅《产品信息指南》或计算机附带的单独的书面担保文 档。 为了获得最佳的计算机性能并帮助保存 BIOS 设置，请始终在装有主电池的情况下操作 Dell™ 便携 式计算机。 在电池槽中提供了作为标准设备的一块电池。 : 由于电池可能没有完全充电，因此在第一次使用计算机时请使用交流适配器将您的新计算机和电源 插座相连接。 为获得最佳结...
Page 37
Dell™ Quick Set 电池表 如果安装了 Dell Quick Set，则按 <Fn><F3> 组合键可显示 “Quick Set 电池表”。 Battery Meter （电池表）显示计算机中电池的状态、性能、充电级别和充电完成时间。 有关 Quick Set 的详情，请在任务栏中的 图标上单击鼠标右键，然后单击 Help（帮助）。 Microsoft Wind...
Page 38
为电池充电 : 使用 Dell™ Express Charge™ ，当计算机被关闭时，交流适配器将一个电量完全消耗的电池在大约 1 个小时内充到 80% 电量，在大约 2 个小时内充到 100% 电量。 在开启计算机的情况下，充电时间会较长。 将电池留在计算机中的时间可以随意而定。 电池的内部电路可防止电池过量充电。 当将计算机连接到电源插座或者在计算机已连接到电源插座的情况下安装电池时，计算机会...
Page 40
程序停止响应或反复崩溃 : 软件通常会在其说明文件或者在软盘或 CD 中包括安装说明。 结束该程序 同时按 <Ctrl><Shift><Esc> 组合键。 单击 Task Manager（任务管理器）。 单击不再响应的程序。 单击 End Task（结束任务）。 检查软件说明文件 如果有必要，请卸载该程序，然后再重新安装该程序。 程序设计用于较早的 Micros...
