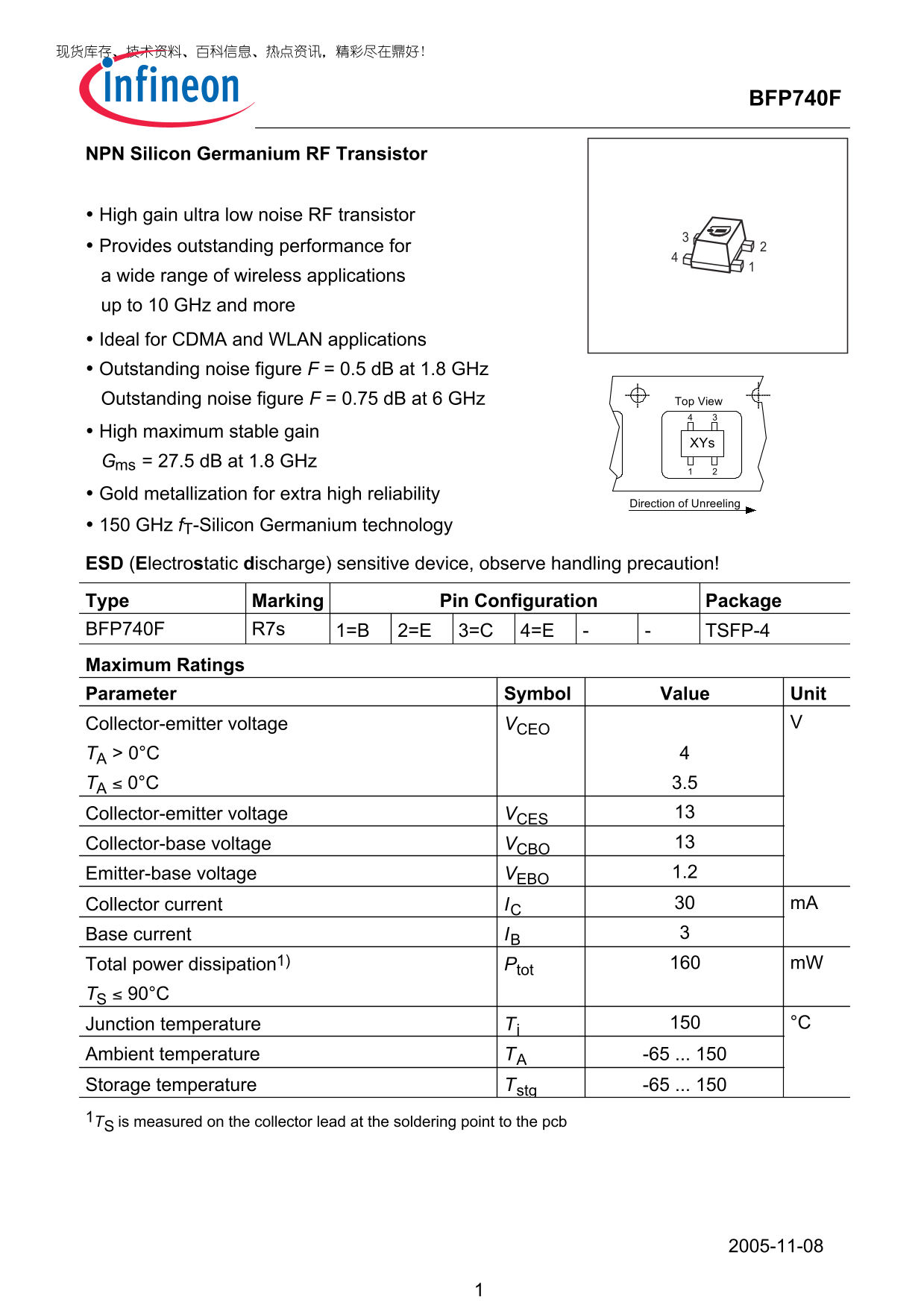

BFP740F

NPN Silicon Germanium RF Transistor

• High gain ultra low noise RF transistor • Provides outstanding performance for a wide range of wireless applications up to 10 GHz and more • Ideal for CDMA and WLAN applications • Outstanding noise figure F = 0.5 d B at 1.8 GHz Outstanding noise figure F = 0.75 d B at 6 GHz Top View • High maximum stable gain

Gms = 27.5 d B at 1.8 GHz • Gold metallization for extra high reliability

Direction of Unreeling

• 150 GHz f T-Silicon Germanium technology

ESD (Electrostatic discharge) sensitive device, observe handling precaution!

Type Marking Pin Configuration Package BFP740F R7s 1=B 2=E 3=C 4=E TSFP-4 Maximum Ratings Parameter Symbol Value Unit Collector-emitter voltage VCEO TA > 0°C

TA ≤ 0°C 3.5

Collector-emitter voltage VCES Collector-base voltage VCBO

Emitter-base voltage VEBO 1.2

Collector current IC m A

Base current IB

Total power dissipation1) Ptot m W

TS ≤ 90°C

Junction temperature °C

Ambient temperature TA -65 ... 150 Storage temperature Tstg -65 ... 150 1TS is measured on the collector lead at the soldering point to the pcb

Page Summary Contents For Dell Inspiron BFP740F Owner's Manual

Page 1 BFP740F NPN Silicon Germanium RF Transistor • High gain ultra low noise RF transistor • Provides outstanding performance for a wide range of wireless applications up to 10 GHz and more • Ideal for CDM...
Page 2 BFP740F Thermal Resistance Parameter Symbol Value Unit Junction - soldering point1) Rth JS ≤ 370 K/W Electrical Characteristics at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit mi...
Page 3 BFP740F Electrical Characteristics at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. AC Characteristics (verified by random sampling) Transition frequency f T GHz IC...
Page 4 BFP740F SPICE Parameter (Gummel-Poon Model, Berkley-SPICE 2G.6 Syntax): Transitor Chip Data: IS = 384.4 a A BF = 1.1 NF = 1.018 VAF = IKF = 512.1 m A ISE = 4.296 f A NE = 1.586 BR = NR = VAR = 1.28 IK...
Page 5 /P BFP740F ot ax to t D ot Total power dissipation Ptot = ƒ(TS) Permissible Pulse Load Rth JS = ƒ(tp) th JS [p 0,005 cb °C 10 -7 10 -6 10 -5 10 -4 10 -3 10 -2 10 0 s TS tp Permissible Pulse Load Colle...
Page 6 BFP740F [d IP Third order Intercept Point IP3 = ƒ (IC) Transition frequency f T = ƒ(IC) (Output, ZS = ZL = 50 Ω ) VCE = parameter in V, f = 2 GHz VCE = parameter, f = 900 MHz 4.00V 2V to 4V 3.00V Powe...
Page 7 [d BFP740F Power gain Gma, Gms = ƒ (VCE) Noise figure F = ƒ(IC) IC = 25 m A VCE = 3 V, f = parameter in GHz f = parameter in GHz ZS = ZSopt 0.90GHz 1.80GHz 2.40GHz f = 6GHz 3.00GHz 1.4 f = 5GHz 4.00GH...
Page 8 BFP740F Source impedance for min. noise figure vs. frequency VCE = 3 V, IC = 8 m A / 25 m A 4GHz 5GHz 3GHz 0.1 2.4GHz 1.8GHz 0.4 6GHz 10.2 0.9GHz
Page 9 Package TSFP-4 BFP740F Package Out ine Foot Pr int Marking Layout Manufacturer Pin 1 Type code BFP420F Example Standard Packing Reel ø180 mm = 3.000 Pieces/Reel Reel ø330 mm = 10.000 Pieces/Reel Pin 1...
Page 10 BFP740F Published by Infineon Technologies AG, St.-Martin-Strasse 53, 81669 München © Infineon Technologies AG 2005. All Rights Reserved. Attention please! The information herein is given to describe ...
