Infineon BFP540 NPN Silicon RF transistor datasheet based on SIEGET-45 technology for high-gain low-noise amplifier applications at 1.8GHz. Specifications include 21dB maximum stable gain, 0.9dB noise figure, 30GHz transition frequency, 4.5V collector-emitter breakdown, 80mA collector current, 250mW power dissipation, gold metallization, and SOT343 surface-mount package with ESD handling precautions.

📄 Preview PAGE OF 7

Page 1 Text Content

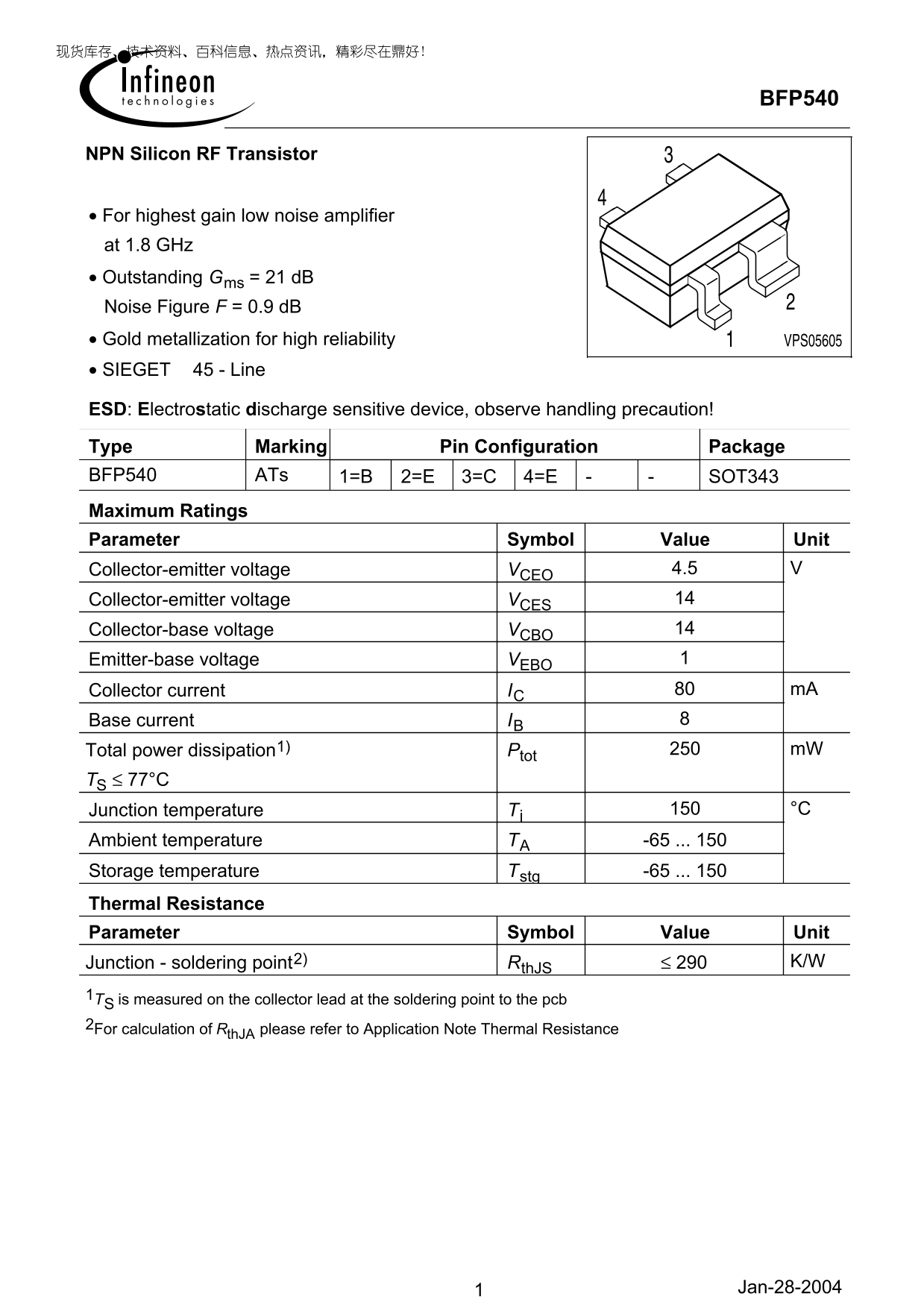

BFP540

NPN Silicon RF Transistor

• For highest gain low noise amplifier at 1.8 GHz • Outstanding Gms = 21 d B Noise Figure F = 0.9 d B • Gold metallization for high reliability VPS05605 • SIEGET 45 - Line

ESD: Electrostatic discharge sensitive device, observe handling precaution!

Type Marking Pin Configuration Package BFP540 ATs 1=B 2=E 3=C 4=E SOT343 Maximum Ratings Parameter Symbol Value Unit

Collector-emitter voltage VCEO 4.5

Collector-emitter voltage VCES Collector-base voltage VCBO Emitter-base voltage VEBO

Collector current IC m A

Base current IB

Total power dissipation1) Ptot m W

TS ≤ 77°C

Junction temperature °C

Ambient temperature TA -65 ... 150 Storage temperature Tstg -65 ... 150 Thermal Resistance Parameter Symbol Value Unit

Junction - soldering point2) Rth JS ≤ 290 K/W

1TS is measured on the collector lead at the soldering point to the pcb

2For calculation of Rth JA please refer to Application Note Thermal Resistance

Jan-28-20041

Page Summary Contents For Dell Inspiron BFP540 Owner's Manual

Page 1 BFP540 NPN Silicon RF Transistor • For highest gain low noise amplifier at 1.8 GHz • Outstanding Gms = 21 d B Noise Figure F = 0.9 d B • Gold metallization for high reliability VPS05605 • SIEGET 45 - ...
Page 2 BFP540 Electrical Characteristics at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. DC Characteristics Collector-emitter breakdown voltage V(BR)CEO 4.5 IC = 1 m A, I...
Page 3 BFP540 Electrical Characteristics at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. AC Characteristics (verified by random sampling) Transition frequency f T GHz IC ...
Page 4 BFP540 SPICE Parameter (Gummel-Poon Model, Berkley-SPICE 2G.6 Syntax): Transitor Chip Data: IS = 82.84 a A BF = 107.5 NF = VAF = 28.383 IKF = 0.48731 ISE = 11.15 f A NE = 3.19 BR = 5.5 NR = VAR = 19.7...
Page 5 / P ot ot ax to t D BFP540 Total power dissipation Ptot = ƒ(TS) Permissible Pulse Load Rth JS = ƒ(tp) th JS TS tp Permissible Pulse Load Collector-base capacitance Ccb= ƒ(VCB) Ptotmax/Ptot DC = ƒ(tp) ...
Page 6 BFP540 Transition frequency f T= ƒ(IC) Power gain Gma, Gms = ƒ(IC) f = 1GHz VCE = 2V VCE = Parameter in V f = Parameter in GHz IC IC Power Gain Gma, Gms = ƒ(f), Power gain Gma, Gms = ƒ (VCE) |S21|² = ...
Page 7 BFP540 Noise figure F = ƒ(IC) Noise figure F = ƒ(IC) VCE = 2V, ZS = ZSopt VCE = 2V, f = 1.8GHz 1.5 f = 6GHz 1.5 f = 5GHz f = 4GHz f = 3GHz ZS = 50Ohm f = 2.4GHz ZS = Zsopt f = 1.8GHz f = 0.9GHz m A m ...
