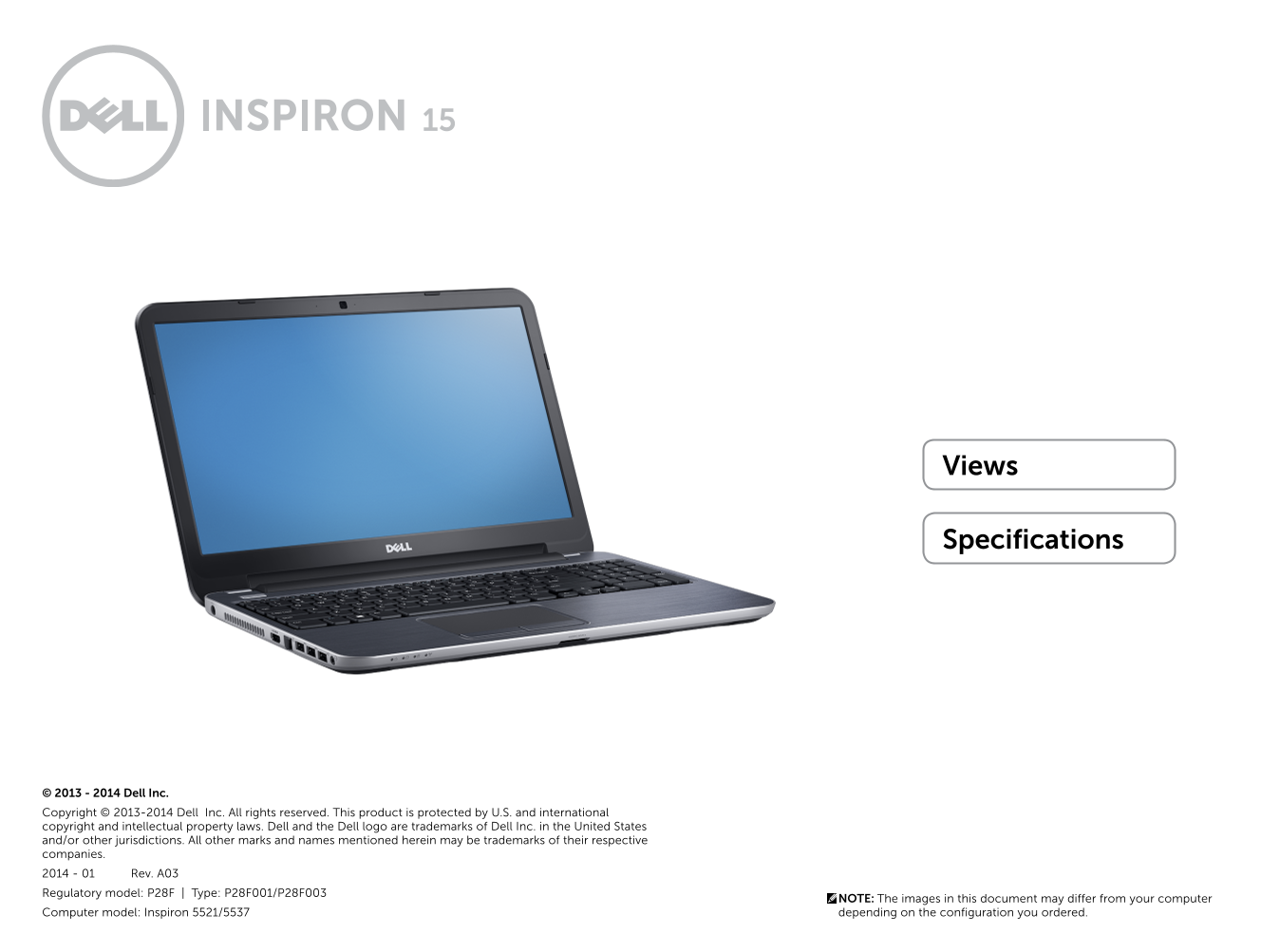

Page 1
Dell - Internal Use - Confidential Views Specifications © 2013 - 2014 Dell Inc. Copyright © 2013-2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and i...
Page 2
Views Specifications Power-status light Battery-status light Indicates the power state of the computer. Indicates the battery state of the computer. Solid yellow light — Battery charge is low or criti...
Page 3
Views Specifications Power-adapter port USB 3.0 ports (2) Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, computer and charge the battery. and s...
Page 4
Views Specifications USB 2.0 port (supports Windows debugging) Optical drive Connect peripherals such as storage devices, printers, Reads from and writes to CDs , DVDs and Blu-ray discs. and so on. Pr...
Page 5
Views Specifications Power button Touchpad Press to turn on the computer if it is turned off or in Move your finger on the touchpad to move the mouse Sleep state. pointer. Tap to left-click. Press to ...
Page 6
Views Specifications Display Digital microphone Camera Provides high-quality digital sound input for audio Allows you to video chat, capture photos, and record recording, voice calls, and so on. video...
Page 7
Specifications Views Dimensions and Weight Height (with 6-cell battery): Non-touch 1 in (25.40 mm) Touch 1.10 in (27.90 mm) Width 14.80 in (376 mm) Depth 910.20 in (259 mm) Weight with 4-cell battery ...
Page 8
Specifications Views System Information Computer model Inspiron 5521/5537 Processor Inspiron 5521 Inspiron 5537 Intel Celeron Dual Core Intel Celeron Dual Core (4th generation) (2nd and 3rd generation...
Page 9
Specifications Views Memory Connectors: Inspiron 5521 Two internally-accessible DDR3 SODIMM connectors Inspiron 5537 Two internally-accessible DDR3L SODIMM connectors Capacity Up to 16 GB Type: Inspir...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB Two USB 3.0 ports One USB 2.0 port One USB 2.0 port with Windows debugging HDMI One HDMI port Audio One headphone and micr...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi-Fi 802.11 b/g/n Bluetooth 4.0 Wireless Display (optional) Dimensions and System Port...
Page 12
Specifications Views Video Controller: Integrated Intel HD Graphics 5100/4200/4400 series Discrete AMD Radeon HD 8670M AMD Radeon HD 8850M Memory: Integrated Shared system memory Discrete Up to 2 GB D...
Page 13
Specifications Views Audio Controller ALC3223 Speakers Two Speaker output: Average 2 watt Peak 2 watt Microphone Single digital microphone in the camera assembly Volume controls Program menus and keyb...
Page 14
Specifications Views Storage Interface SATA 1.5 Gbps SATA 3 Gbps SATA 6 Gbps Hard drive One 2.5-inch drive (supports Intel Smart Response Technology) Optical drives One 9.5 mm SATA drive Drives suppor...
Page 15
Specifications Views Media-card reader Type One 8-in-1 slot Cards supported Secure Digital (SD) memory card SD High-Capacity (SDHC) card Secure-Digital Extended Capacity (SDXC) card with Ultra High Sp...
Page 16
Specifications Views Display Type 15.6-inch HD 15.6-inch HD with touch 15.6-inch full HD Resolution (maximum) HD — 1366 x 768 Full HD — 1920 x 1080 Dimensions: Height 8.83 in (224.30 mm) Width 14.17 i...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 19
Specifications Views Touchpad Resolution: Horizontal 1261 dpi Vertical 1810 dpi Dimensions: Width 2.13 in (54 mm) Height 3.86 in (98 mm) Dimensions and System Ports and Memory Communications Video Aud...
Page 20
Specifications Views Battery Type 4-cell “smart” lithium ion (40 WHr) — non-touch only 6-cell “smart” lithium ion (65 WHr) Dimensions: 4-cell 6-cell Height (touch) N/A 1.08 in (27.4 mm) Height (non to...
Page 21
Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.50A/1.60A/1.70A/2.50A Output current 3.34 A/ 4.62 A Rated output voltage 19.50 VD...
Page 22
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA-S71.04-1985 Operating Storage Temperature range 0 °C to 40 °C (32 °F to 104 °F) –40 °C to 70 °C (–40 °F to 158...
