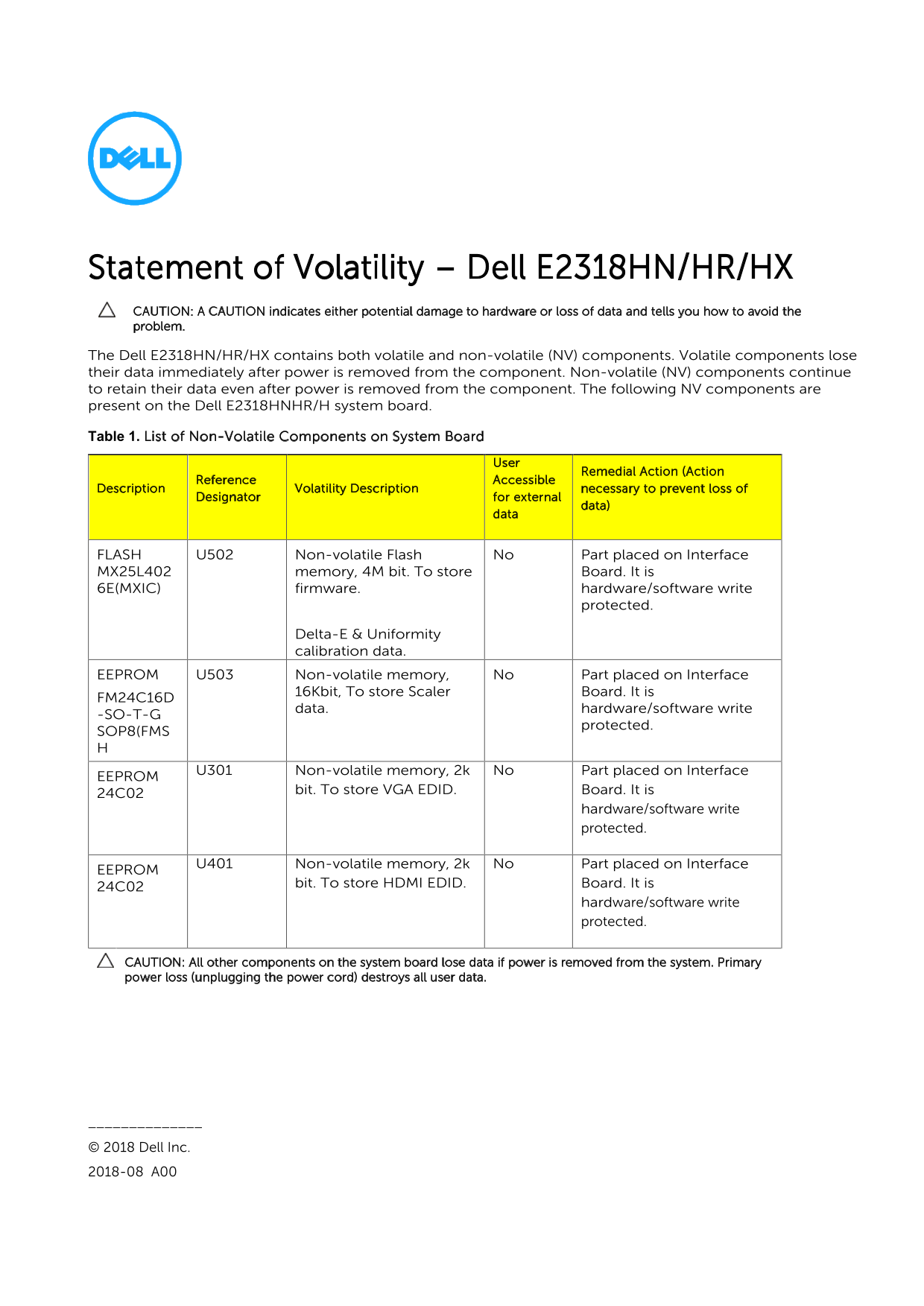

Statement of Volatility – Dell E2318HN/HR/HX CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell E2318HN/HR/HX contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell E2318HNHR/H system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
FLASH U502 Non-volatile Flash No Part placed on Interface MX25L402 memory, 4M bit. To store Board. It is 6E(MXIC) firmware. hardware/software write
protected.
Delta-E & Uniformity calibration data.
EEPROM U503 Non-volatile memory, No Part placed on Interface
16Kbit, To store Scaler Board. It is
FM24C16D
data. hardware/software write
-SO-T-G
protected.
SOP8(FMS
U301 Non-volatile memory, 2k No Part placed on Interface
EEPROM
bit. To store VGA EDID. Board. It is
hardware/software write protected.
U401 Non-volatile memory, 2k No Part placed on Interface
EEPROM
bit. To store HDMI EDID. Board. It is
hardware/software write protected.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord) destroys all user data.
© 2018 Dell Inc. 2018-08 A00
