Dell E2223HV Monitor Teardown Instructions
Summary
This document is the teardown instruction manual for the Dell E2223HV/HVf LCD monitor. It provides step-by-step disassembly procedures including removing rear cover screws and stand, detaching the rear cover, removing VGA screws, chassis screws, aluminium foil and LVDS cables, PCBA boards, keypad, and front cover components. Each step includes specific torque requirements for screws and detailed instructions for cable disconnection. Targeted at Dell manufacturing technicians and authorized service personnel who perform monitor disassembly for repair or recycling purposes.
Page 1 Text Content
Teardown Instruction

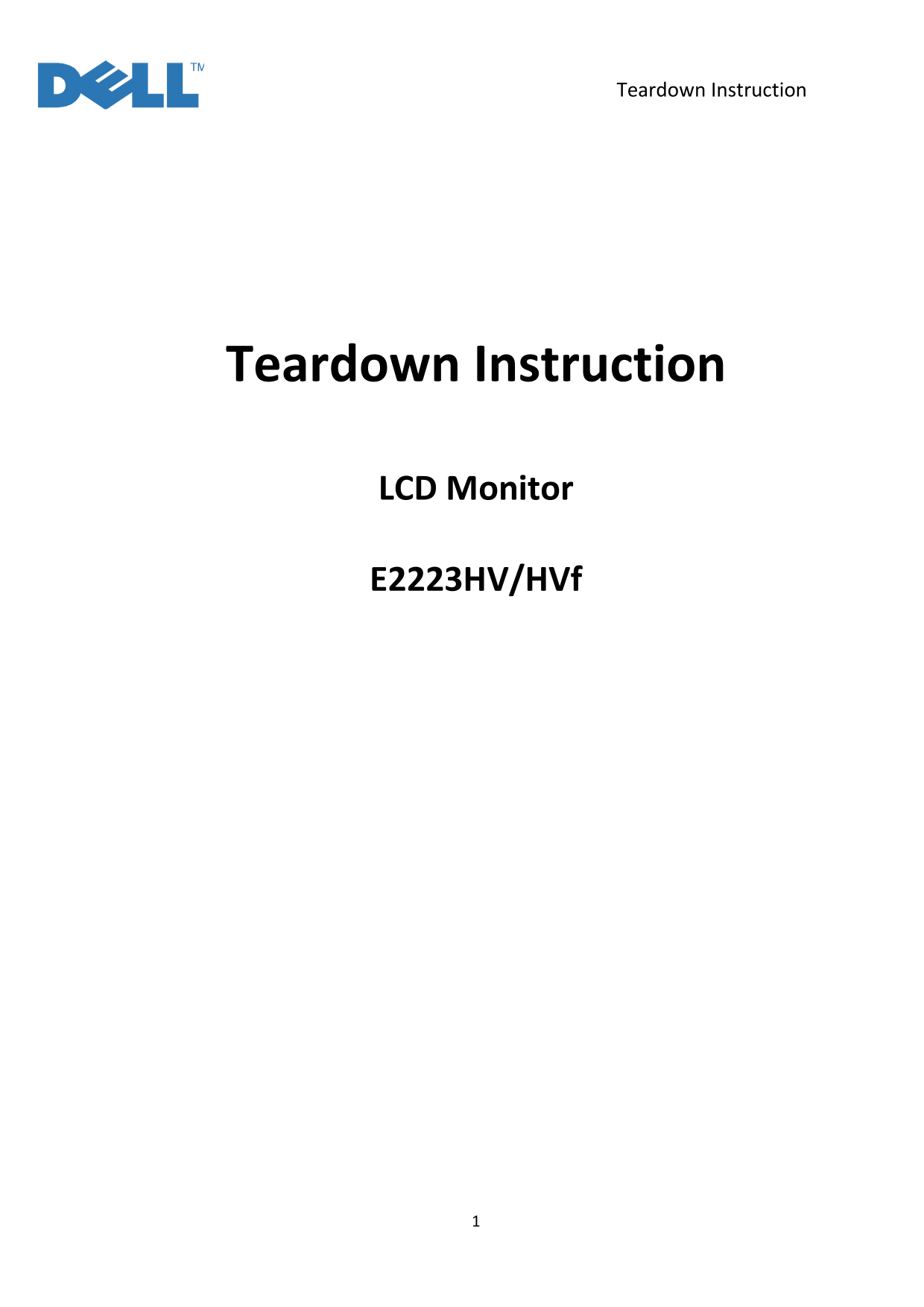

Teardown Instruction LCD Monitor E2223HV/HVf
Page Summary Contents For Dell E2223HV Monitor Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 5 |
| File Size | 887.75 KB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are needed to disassemble the monitor?
You need a Φ5 mm and Φ3 mm Phillips screwdriver, a hexagonal screwdriver for VGA connectivity, a soldering iron, and a knife.
How do I remove the rear cover?
Remove the rear cover screws and stand with a hex screwdriver, then pry off the back cover using a dismantling fixture starting from the bottom.
What parts contain hazardous materials?
Product has electrolyte capacitors (height >25mm), printed circuit boards (surface >10 square cm), and the LCD display (>100cm2).
What is the torque specification for stand screws?
Use a torque of 12.0 +/- 0.5Kgf/cm for rear cover and stand screws.
How do I separate the PI board from the IF board?
Cut the glue between the bulk cap and PCBA with a knife, ensuring the path stays within the glue line.
