Dell E2221HN Monitor Teardown Instructions
Summary
This monitor teardown instruction manual provides detailed disassembly procedures for LCD monitor servicing. It includes step-by-step instructions for removing rear covers, stands, front panels, aluminum foil, acetate cloth tape, light bars, keypad cables, FFC connectors, PCBA boards, and electrolyte capacitors. The manual specifies torque values for screws and safety precautions. It is designed for certified repair technicians and service centers performing monitor repairs and component replacements.
Page 1 Text Content

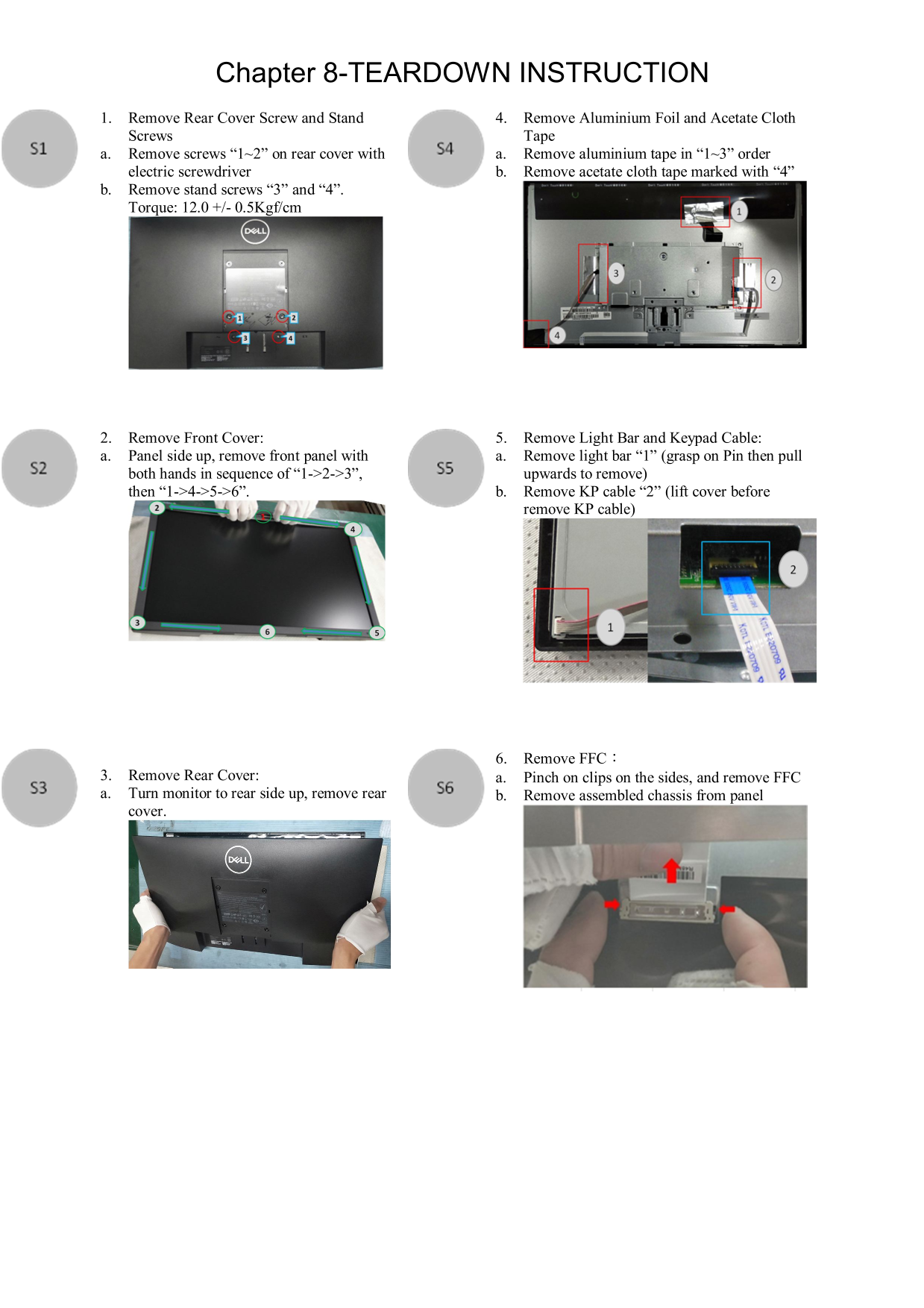

Chapter 8-TEARDOWN INSTRUCTION
1. Remove Rear Cover Screw and Stand 4. Remove Aluminium Foil and Acetate Cloth Screws Tape a. Remove screws “1~2” on rear cover with a. Remove aluminium tape in “1~3” order electric screwdriver b. Remove acetate cloth tape marked with “4” b. Remove stand screws “3” and “4”. Torque: 12.0 +/- 0.5Kgf/cm
2. Remove Front Cover: 5. Remove Light Bar and Keypad Cable: a. Panel side up, remove front panel with a. Remove light bar “1” (grasp on Pin then pull both hands in sequence of “1->2->3”, upwards to remove) then “1->4->5->6”. b. Remove KP cable “2” (lift cover before
remove KP cable)
6. Remove FFC：
3. Remove Rear Cover: a. Pinch on clips on the sides, and remove FFC a. Turn monitor to rear side up, remove rear b. Remove assembled chassis from panel cover.
Page Summary Contents For Dell E2221HN Monitor Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 782.47 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are required to disassemble the product?
Use a Phillips screwdriver (Φ5 mm & Φ3 mm), a hexagonal screwdriver for VGA connectivity, a soldering iron, and a knife.
How do I remove the electrolyte capacitors during teardown?
Cut the glue between the bulk cap and PCBA using a knife, ensuring the path is within the glue and does not touch the components.
Which components are marked for separate disposal?
Printed circuit boards with a surface greater than 10 square cm, LCD displays greater than 100 cm2, and electrolyte capacitors taller than 25mm.
What is the torque specification for removing stand screws?
The stand screws should be removed with a torque of 12.0 +/- 0.5Kgf/cm.
How do I remove the Keypad from the panel?
Remove the screws with an electric screwdriver, then tear off the Keypad cable and lift the front cover.
