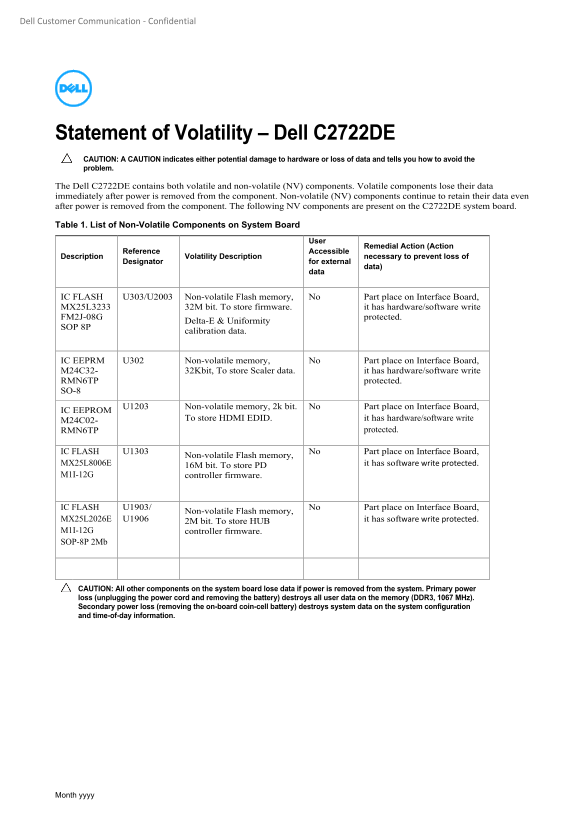

Statement of Volatility – Dell C2722DE CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell C2722DE contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the C2722DE system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Accessible
Description Reference necessary to prevent loss of
Designator Volatility Description for external
data)
IC FLASH U303/U2003 Non-volatile Flash memory, No Part place on Interface Board, MX25L3233 32M bit. To store firmware. it has hardware/software write FM2J-08G protected.
Delta-E & Uniformity
SOP 8P
calibration data.
IC EEPRM U302 Non-volatile memory, No Part place on Interface Board, M24C32- 32Kbit, To store Scaler data. it has hardware/software write RMN6TP protected. SO-8
U1203 Non-volatile memory, 2k bit. No Part place on Interface Board,
IC EEPROM
To store HDMI EDID. it has hardware/software write
RMN6TP protected.
IC FLASH U1303 Non-volatile Flash memory, No Part place on Interface Board, MX25L8006E it has software write protected.
16M bit. To store PD
M1I-12G controller firmware.
IC FLASH U1903/ No Part place on Interface Board,
Non-volatile Flash memory,
MX25L2026E U1906 it has software write protected.
2M bit. To store HUB
M1I-12G controller firmware. SOP-8P 2Mb
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
