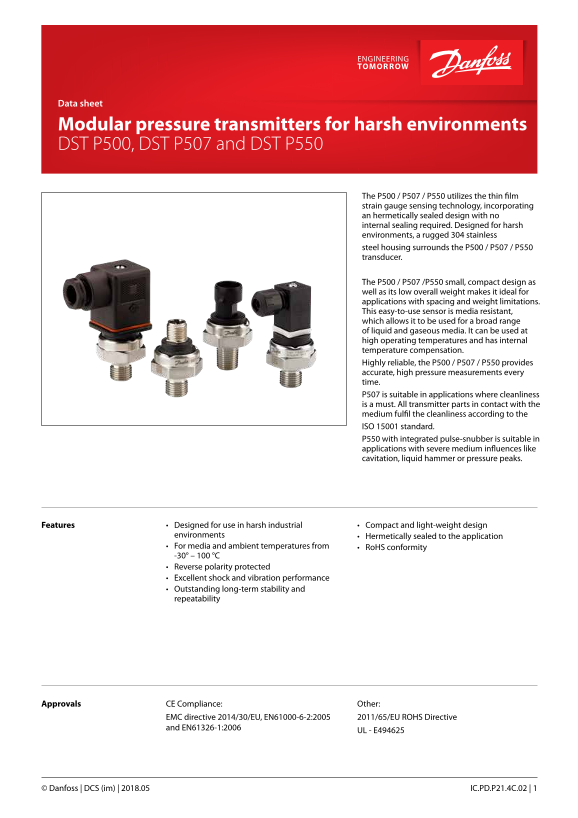

Data sheet
Modular pressure transmitters for harsh environments DST P500, DST P507 and DST P550
The P500 / P507 / P550 utilizes the thin film strain gauge sensing technology, incorporating an hermetically sealed design with no internal sealing required. Designed for harsh environments, a rugged 304 stainless steel housing surrounds the P500 / P507 / P550 transducer.
The P500 / P507 /P550 small, compact design as well as its low overall weight makes it ideal for applications with spacing and weight limitations. This easy-to-use sensor is media resistant, which allows it to be used for a broad range of liquid and gaseous media. It can be used at high operating temperatures and has internal temperature compensation. Highly reliable, the P500 / P507 / P550 provides accurate, high pressure measurements every time. P507 is suitable in applications where cleanliness is a must. All transmitter parts in contact with the medium fulfil the cleanliness according to the ISO 15001 standard. P550 with integrated pulse-snubber is suitable in applications with severe medium influences like cavitation, liquid hammer or pressure peaks.
Features • Designed for use in harsh industrial • Compact and light-weight design
environments • Hermetically sealed to the application • For media and ambient temperatures from • Ro HS conformity -30° – 100 °C • Reverse polarity protected • Excellent shock and vibration performance • Outstanding long-term stability and repeatability
Approvals CE Compliance: Other:
EMC directive 2014/30/EU, EN61000-6-2:2005 2011/65/EU ROHS Directive and EN61326-1:2006
UL - E494625
© Danfoss | DCS (im) | 2018.05 IC.PD.P21.4C.02 | 1
Page Summary Contents For Danfoss DST P500 and P550 Pressure Transmitters Datasheet
Manual Details
| Brand | Danfoss |
|---|---|
| Pages | 6 |
| File Size | 368.95 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which model is best for extreme pressure fluctuations like cavitation or liquid hammer?
The P550 includes an integrated pulse-snubber, making it suitable for severe medium influences such as cavitation, liquid hammer, or pressure peaks.
What unique standard does the P507 offer regarding cleanliness?
The P507 is ideal where clean operation is required; all parts in contact with the medium fulfil the ISO 15001 standards.
What are the acceptable temperature ranges for these transmitters?
The ambient temperature range is from -30° to 100°C, and the media temperature range is -30° to 120°C.
What electrical output signals can I choose from?
Available nominal output signal options include 0.5-4.5 V DC, 4–20 mA, or 0-5 V/0-10 V DC (short-circuit protected).
