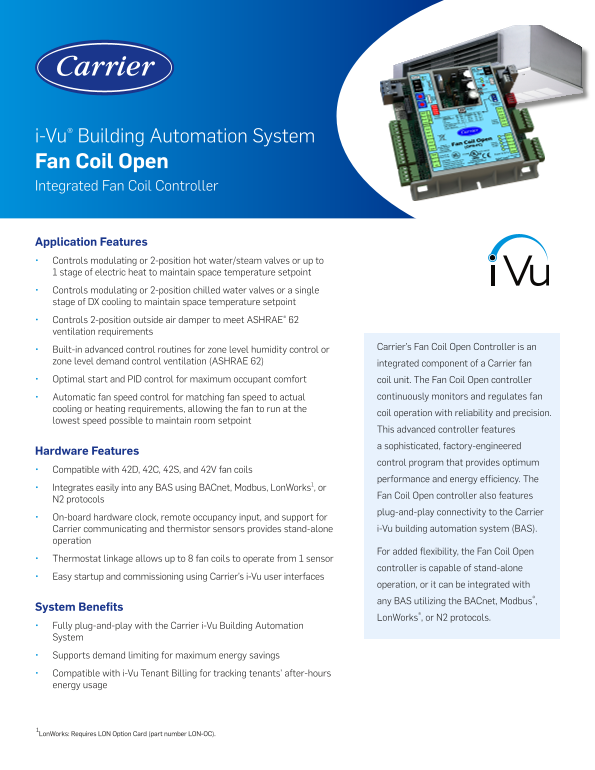

Page 1 Text Content
i-Vu® Building Automation System Fan Coil Open Integrated Fan Coil Controller
Application Features • Controls modulating or 2-position hot water/steam valves or up to 1 stage of electric heat to maintain space temperature setpoint • Controls modulating or 2-position chilled water valves or a single stage of DX cooling to maintain space temperature setpoint • Controls 2-position outside air damper to meet ASHRAE® 62 ventilation requirements
Carrier’s Fan Coil Open Controller is an
• Built-in advanced control routines for zone level humidity control or zone level demand control ventilation (ASHRAE 62) integrated component of a Carrier fan • Optimal start and PID control for maximum occupant comfort coil unit. The Fan Coil Open controller
• Automatic fan speed control for matching fan speed to actual continuously monitors and regulates fan
cooling or heating requirements, allowing the fan to run at the
coil operation with reliability and precision.
lowest speed possible to maintain room setpoint
This advanced controller features a sophisticated, factory-engineered
Hardware Features
control program that provides optimum
• Compatible with 42D, 42C, 42S, and 42V fan coils
performance and energy efficiency. The
• Integrates easily into any BAS using BACnet, Modbus, Lon Works1, or
Fan Coil Open controller also features
N2 protocols
plug-and-play connectivity to the Carrier
• On-board hardware clock, remote occupancy input, and support for
Carrier communicating and thermistor sensors provides stand-alone i-Vu building automation system (BAS).
operation
For added flexibility, the Fan Coil Open
• Thermostat linkage allows up to 8 fan coils to operate from 1 sensor
controller is capable of stand-alone
• Easy startup and commissioning using Carrier’s i-Vu user interfaces
operation, or it can be integrated with any BAS utilizing the BACnet, Modbus®,
System Benefits
Lon Works®, or N2 protocols.
• Fully plug-and-play with the Carrier i-Vu Building Automation System • Supports demand limiting for maximum energy savings • Compatible with i-Vu Tenant Billing for tracking tenants’ after-hours energy usage
1Lon Works: Requires LON Option Card (part number LON-OC).
Page Summary Contents For Carrier Airstream™ Belt Drive Fan Coils 42B i-Vu Open Fan Coil Open Product Data Sheet
Manual Details
| Brand | Carrier |
|---|---|
| Pages | 2 |
| File Size | 432.28 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of protocols can this controller integrate with?
It integrates using BACnet, Modbus, LonWorks, N2, or standard Carrier communicating and thermistor sensors.
How is the unit protected from electrical issues?
Incoming power and network connections are protected by self-resetting internal solidstate polyswitches, and the ports are protected against voltage transient and surge events.
What are the operating temperature limits?
The operational range is 0 to 140°F (-18 to 54°C) at a relative humidity of 10–90%, non-condensing.
How many fan coils can one sensor controller manage?
A single sensor controller allows up to eight (8) fan coils to operate from just one sensor.
