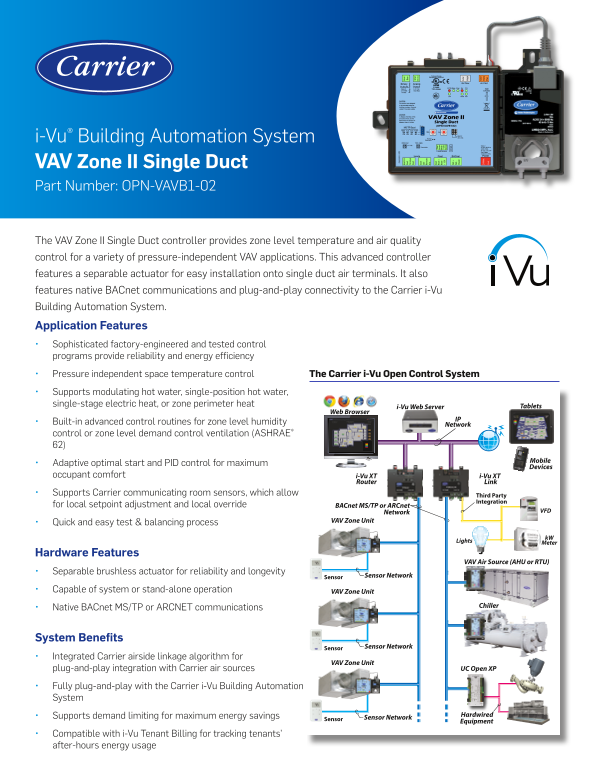

i-Vu® Building Automation System VAV Zone II Single Duct Part Number: OPN-VAVB1-02
The VAV Zone II Single Duct controller provides zone level temperature and air quality control for a variety of pressure-independent VAV applications. This advanced controller features a separable actuator for easy installation onto single duct air terminals. It also features native BACnet communications and plug-and-play connectivity to the Carrier i-Vu Building Automation System. Application Features • Sophisticated factory-engineered and tested control programs provide reliability and energy efficiency • Pressure independent space temperature control The Carrier i-Vu Open Control System • Supports modulating hot water, single-position hot water, single-stage electric heat, or zone perimeter heat Tablets
i-Vu Web Server
Web Browser
• Built-in advanced control routines for zone level humidity
Network
control or zone level demand control ventilation (ASHRAE®
WARMER ALARM WARM
62) COOLER IDEAL COOL ALARM
Mobile
• Adaptive optimal start and PID control for maximum
Devices
occupant comfort i-Vu XT i-Vu XT
Router Link
• Supports Carrier communicating room sensors, which allow Third Party
Integration
for local setpoint adjustment and local override BACnet MS/TP or ARCnet
Network VFD
VAV Zone Unit
• Quick and easy test & balancing process
k W Meter Lights
Hardware Features
VAV Air Source (AHU or RTU)
• Separable brushless actuator for reliability and longevity
Sensor Sensor Network
• Capable of system or stand-alone operation VAV Zone Unit
Chiller
• Native BACnet MS/TP or ARCNET communications
System Benefits
Sensor Sensor Network
• Integrated Carrier airside linkage algorithm for
VAV Zone Unit
plug-and-play integration with Carrier air sources UC Open XP
• Fully plug-and-play with the Carrier i-Vu Building Automation System
• Supports demand limiting for maximum energy savings Hardwired
Sensor Network Sensor
Equipment
• Compatible with i-Vu Tenant Billing for tracking tenants’ after-hours energy usage
