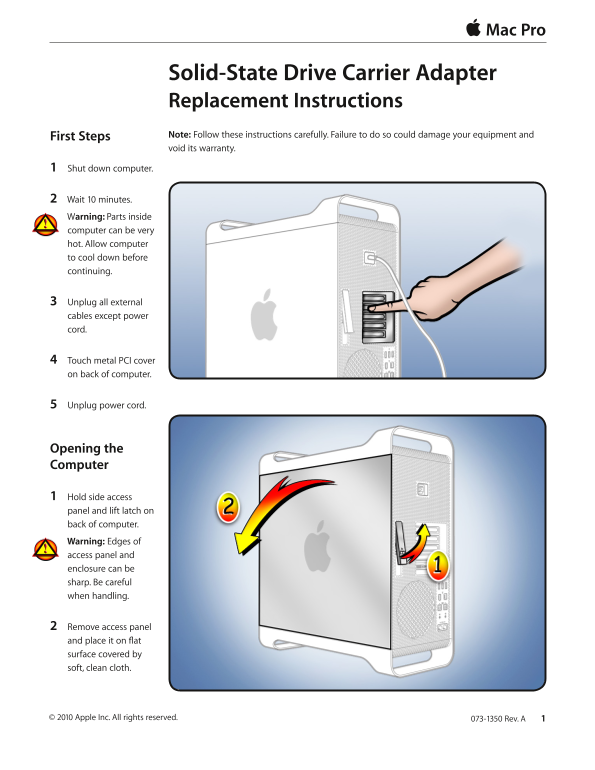

apple Mac Pro (Mid 2010) - Solid State Drive Carrier Adapter - Replacement Instructions - Page 1

›

Page 1 Text Content

 Mac Pro

Solid-State Drive Carrier Adapter Replacement Instructions First Steps Note: Follow these instructions carefully. Failure to do so could damage your equipment and void its warranty.

1 Shut down computer.

2 Wait 10 minutes. Warning: Parts inside computer can be very hot. Allow computer to cool down before continuing.

3 Unplug all external cables except power cord.

4 Touch metal PCI cover on back of computer.

5 Unplug power cord.

Opening the Computer

1 Hold side access panel and lift latch on back of computer. Warning: Edges of access panel and enclosure can be sharp. Be careful when handling.

2 Remove access panel and place it on flat surface covered by soft, clean cloth.

Page Summary Contents For apple Mac Pro (Mid 2010) - Solid State Drive Carrier Adapter - Replacement Instructions

Page 1  Mac Pro Solid-State Drive Carrier Adapter Replacement Instructions First Steps Note: Follow these instructions carefully. Failure to do so could damage your equipment and void its warranty. 1 Shut d...

Page 2 Required Tool Phillips #1 screwdriver Removing the Installed Adapter 1 Make sure latch on back panel is up, so that drives and carriers are unlocked. 2 Pull drive carrier (with drive) out of drive bay...

Page 4 6 Remove 2 screws mounting adapter to carrier. 7 Detach carrier from 2 adapter hooks and remove adapter from carrier. Installing the Replacement Adapter 1 Position drive carrier over replacement adapt...

Page 5 4 Slide drive into adapter as shown, label side down and connector facing out. 5 Replace mounting screws. 6 Slide carrier over guides and into drive bay until drive snaps into place. Closing the Compu...

Page 6  Apple Inc. © 2010 Apple Inc. All rights reserved. This document is protected under U.S. Copyright Law and International Treaties, and no part of this document may be reproduced in any form without w...
