ANALOG DEVICES Energy Metering IC with Pulse Output ADE7755 Product Data Sheet Manual User Guide

Summary

The ADE7755 is a high-accuracy energy measurement Integrated Circuit designed for sophisticated electrical metering applications. This detailed technical guide provides comprehensive specifications and functional coverage, detailing real power monitoring, various synchronous low/high-frequency outputs, and advanced signal processing capabilities. It is essential documentation for electrical engineers and product designers who need to integrate precise, reliable energy consumption tracking into meters or complex control systems using microcontrollers.

📄 Preview PAGE OF 16

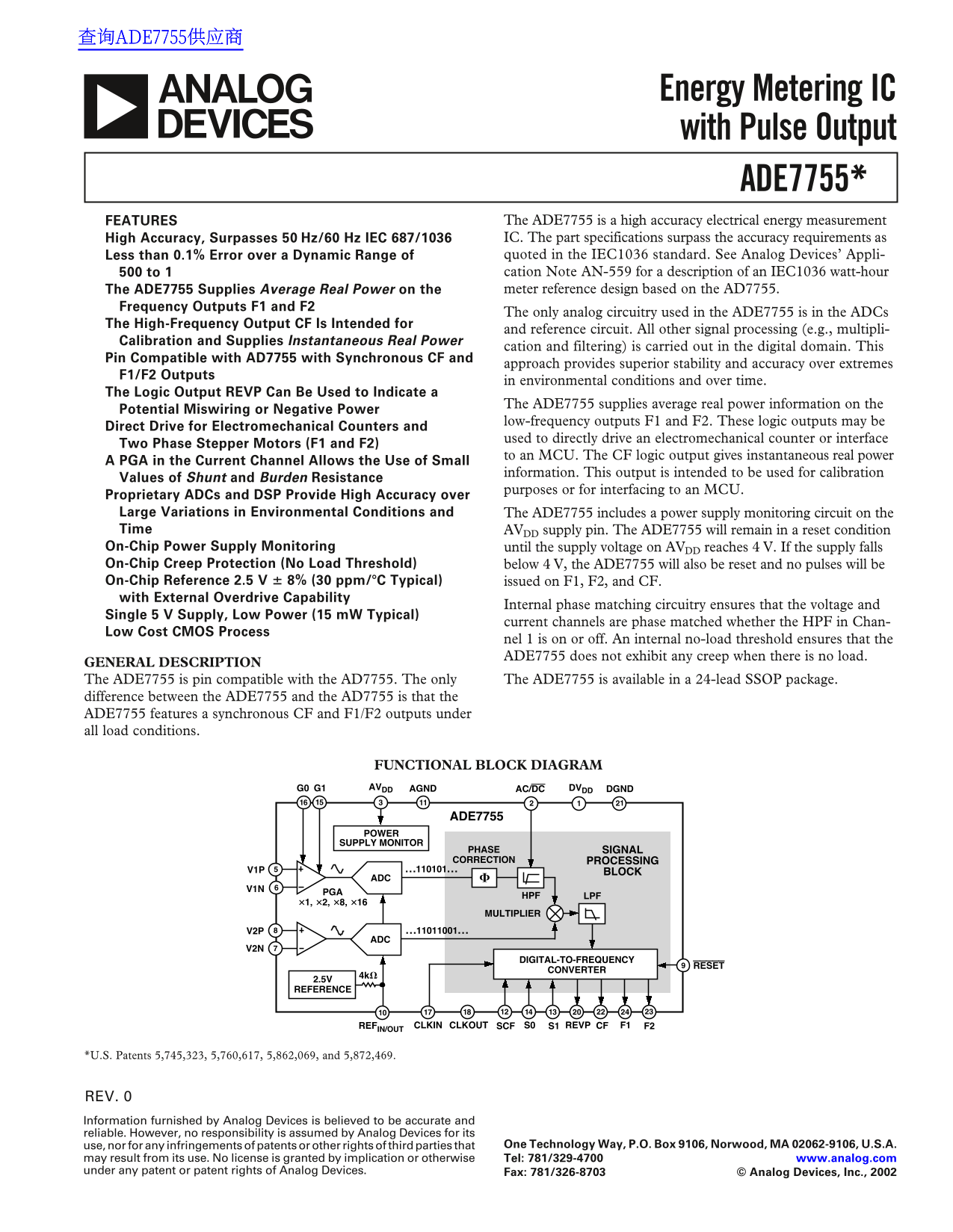

Page 1 Text Content

查询ADE7755供应商

Energy Metering IC with Pulse Output ADE7755*

FEATURES The ADE7755 is a high accuracy electrical energy measurement High Accuracy, Surpasses 50 Hz/60 Hz IEC 687/1036 IC. The part specifications surpass the accuracy requirements as Less than 0.1% Error over a Dynamic Range of quoted in the IEC1036 standard. See Analog Devices’ Appli- 500 to 1 cation Note AN-559 for a description of an IEC1036 watt-hour The ADE7755 Supplies Average Real Power on the meter reference design based on the AD7755.

Frequency Outputs F1 and F2

The only analog circuitry used in the ADE7755 is in the ADCs

The High-Frequency Output CF Is Intended for

and reference circuit. All other signal processing (e.g., multipli-

Calibration and Supplies Instantaneous Real Power

cation and filtering) is carried out in the digital domain. This

Pin Compatible with AD7755 with Synchronous CF and

approach provides superior stability and accuracy over extremes

F1/F2 Outputs

in environmental conditions and over time.

The Logic Output REVP Can Be Used to Indicate a

The ADE7755 supplies average real power information on the

Potential Miswiring or Negative Power

low-frequency outputs F1 and F2. These logic outputs may be

Direct Drive for Electromechanical Counters and

used to directly drive an electromechanical counter or interface

Two Phase Stepper Motors (F1 and F2)

to an MCU. The CF logic output gives instantaneous real power

A PGA in the Current Channel Allows the Use of Small

information. This output is intended to be used for calibration

Values of Shunt and Burden Resistance

purposes or for interfacing to an MCU.

Proprietary ADCs and DSP Provide High Accuracy over Large Variations in Environmental Conditions and The ADE7755 includes a power supply monitoring circuit on the Time AVDD supply pin. The ADE7755 will remain in a reset condition On-Chip Power Supply Monitoring until the supply voltage on AVDD reaches 4 V. If the supply falls On-Chip Creep Protection (No Load Threshold) below 4 V, the ADE7755 will also be reset and no pulses will be On-Chip Reference 2.5 V  8% (30 ppm/C Typical) issued on F1, F2, and CF. with External Overdrive Capability

Internal phase matching circuitry ensures that the voltage and

Single 5 V Supply, Low Power (15 m W Typical)

current channels are phase matched whether the HPF in Chan-

Low Cost CMOS Process

nel 1 is on or off. An internal no-load threshold ensures that the ADE7755 does not exhibit any creep when there is no load.

GENERAL DESCRIPTION

The ADE7755 is pin compatible with the AD7755. The only The ADE7755 is available in a 24-lead SSOP package.

difference between the ADE7755 and the AD7755 is that the ADE7755 features a synchronous CF and F1/F2 outputs under all load conditions.

FUNCTIONAL BLOCK DIAGRAM G0 G1 AVDD AGND AC/DC DVDD DGND

ADE7755

POWER SUPPLY MONITOR

PHASE SIGNAL CORRECTION PROCESSING

V1P ...110101... BLOCK

HPF LPF

MULTIPLIER

DIGITAL-TO-FREQUENCY

RESET

CONVERTER

2.5V REFERENCE

CLKINREFIN/OUT CLKOUT S0 S1 F1 F2CFREVPSCF

*U.S. Patents 5,745,323, 5,760,617, 5,862,069, and 5,872,469.

REV. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties that One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

may result from its use. No license is granted by implication or otherwise Tel: 781/329-4700 www.analog.com under any patent or patent rights of Analog Devices. Fax: 781/326-8703 © Analog Devices, Inc., 2002

Page Summary Contents For ANALOG DEVICES Energy Metering IC with Pulse Output ADE7755 Product Data Sheet Manual User Guide

Page 1 查询ADE7755供应商 Energy Metering IC with Pulse Output ADE7755* FEATURES The ADE7755 is a high accuracy electrical energy measurement High Accuracy, Surpasses 50 Hz/60 Hz IEC 687/1036 IC. The part specific...
Page 2 (AVDD = DVDD = 5 V  5%, AGND = DGND = 0 V, On-Chip Reference, ADE7755–SPECIFICATIONS CLKIN = 3.58 MHz, TMIN to TMAX = –40C to +85C.) Parameter Specifications Unit Test Conditions/Comments ACCURACY1...
Page 3 ADE7755 Parameter Specifications Unit Test Conditions/Comments POWER SUPPLY For Specified Performance AVDD 4.75 V min 5 V – 5% 5.25 V max 5 V + 5% DVDD 4.75 V min 5 V – 5% 5.25 V max 5 V + 5% AIDD m A...
Page 4 ADE7755 Figure 1. Timing Diagram for Frequency Outputs PIN CONFIGURATION DVDD F1 AC/DC F2 AVDD CF NC DGND V1P REVP ADE7755 V1N NC TOP VIEW (Not to Scale) V2N CLKOUT V2P CLKIN RESET G0 REFIN/OUT G1 AGN...
Page 5 ADE7755 PIN FUNCTION DESCRIPTIONS Pin No. Mnemonic Description DVDD Digital Power Supply. This pin provides the supply voltage for the digital circuitry in the ADE7755. The supply voltage should be ma...
Page 6 ADE7755 Pin No. Mnemonic Description DGND This provides the ground reference for the digital circuitry in the ADE7755, i.e., multiplier, filters, and digital-to-frequency converter. This pin should be...
Page 7 Typical Performance Characteristics– ADE7755 PF = 1 GAIN = 16 0.1 0.1 ON-CHIP REFERENCE –0.3 –0.3 PF = 1 –0.4 GAIN = 1 –0.4 ON-CHIP REFERENCE –0.5 –0.5 0.01 0.1 0.01 0.1 Amps Amps TPC 1. Error as a % ...
Page 8 ADE7755 PF = 0.5 PF = 1 GAIN = 8 0.6 GAIN = 16 ON-CHIP REFERENCE 0.3 –40C PF = 0.5 EXTERNAL REFERENCE +25C PF = 1 +25C –0.2 +25C PF = 0.5 +85C PF = 0.5 Amps Amps TPC 7. Error as a % of Reading (G...
Page 9 ADE7755 DISTRIBUTION CHARACTERISTICS DISTRIBUTION CHARACTERISTICS eg re es eg re es NUMBER POINTS: 101 NUMBER POINTS: 101 MINIMUM: –9.78871 MINIMUM: –2.48959 MAXIMUM: 7.2939 GAIN = 1 MAXIMUM: 5.81126 ...
Page 10 ADE7755 THEORY OF OPERATION the voltage by 60∞. If we assume the voltage and current wave- The two ADCs digitize the voltage signals from the current and forms are sinusoidal, the real power component...
Page 11 ADE7755 Using Equations 1 and 2, the real power P can be expressed in Table I. Gain Selection for Channel 1 terms of its fundamental real power (P1) and harmonic real Maximum power (PH). G1 G0 Gain Di...
Page 12 ADE7755 Figure 7 shows two typical connections for Channel V2. The first HPF and Offset Effects option uses a PT (potential transformer) to provide complete Figure 9 shows the effect of offsets on the...
Page 13 ADE7755 0.30 Figure 12 shows the instantaneous real power signal at the eg re es eg re es output of the CPF, which still contains a significant amount of instantaneous power information, i.e., cos (2 ...
Page 14 ADE7755 Interfacing the ADE7755 to a Microcontroller for Energy Power Measurement Considerations Measurement Calculating and displaying power information will always have The easiest way to interface ...
Page 15 ADE7755 Example 1 pulse rate, the frequency at this logic output is proportional to Thus if full-scale differential dc voltages of +470 m V and –660 m V the instantaneous real power. As is the case wi...
Page 16 ADE7755 Table VI. F1 and F2 Frequency with Half-Scale AC Inputs The high-frequency CF output is intended to be used for com- munications and calibration purposes. CF produces a 90 ms-wide Frequency on...

Manual Details

Brand Analog Devices
Pages 16
File Size 332.07 KB
Published July 22, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What key difference exists between the ADE7755 and AD7755?

The ADE7755 features synchronous CF and F1/F2 outputs under all load conditions, unlike the AD7755.

How accurate is the measurement error on the ADE7755?

When measured over a dynamic range of 500 to 1, the reading error is typically less than 0.1%.

What does the product do when the supply voltage drops below 4V?

The device remains in reset and no pulses will be outputted on F1, F2, or CF due to monitoring from the internal power monitoring circuit.
