The ADXL326 is a small, ultra-low power, complete 3-axis accelerometer designed for demanding motion and tilt sensing applications. It measures acceleration across angles, static gravity, shock, and vibration using a compact LFCSP package. This manual provides comprehensive technical details, including detailed specifications, bandwidth adjustment procedures, design trade-offs, and robust guidelines to ensure optimal integration with your project. Ideal for developers building cost-sensitive, low-power devices ranging from mobile phones and gaming systems to image stabilizers and sports health equipment.

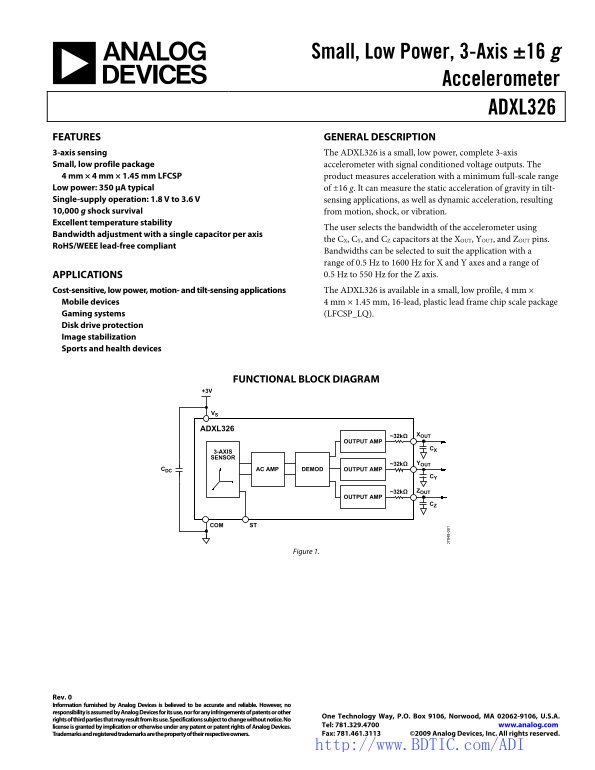

Page 1 Text Content
Small, Low Power, 3-Axis ±16 g
Accelerometer
ADXL326 FEATURES GENERAL DESCRIPTION 3-axis sensing The ADXL326 is a small, low power, complete 3-axis Small, low profile package accelerometer with signal conditioned voltage outputs. The 4 mm × 4 mm × 1.45 mm LFCSP product measures acceleration with a minimum full-scale range Low power: 350 μA typical of ±16 g. It can measure the static acceleration of gravity in tilt- Single-supply operation: 1.8 V to 3.6 V sensing applications, as well as dynamic acceleration, resulting 10,000 g shock survival from motion, shock, or vibration. Excellent temperature stability
The user selects the bandwidth of the accelerometer using
Bandwidth adjustment with a single capacitor per axis
the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins.
Ro HS/WEEE lead-free compliant
Bandwidths can be selected to suit the application with a range of 0.5 Hz to 1600 Hz for X and Y axes and a range of APPLICATIONS 0.5 Hz to 550 Hz for the Z axis. Cost-sensitive, low power, motion- and tilt-sensing applications The ADXL326 is available in a small, low profile, 4 mm ×
Mobile devices 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package Gaming systems (LFCSP_LQ). Disk drive protection Image stabilization Sports and health devices
FUNCTIONAL BLOCK DIAGRAM +3V
ADXL326
~32kΩ XOUT
OUTPUT AMP
8- CX
3-AXIS SENSOR
~32kΩ YOUT
CDC AC AMP DEMOD OUTPUT AMP
~32kΩ ZOUT
OUTPUT AMP
COM ST
Figure 1.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2009 Analog Devices, Inc. All rights reserved.
http://www.BDTIC.com/ADI
Page Summary Contents For ADXL326 Analog Devices Data Sheet manual specifications guide
Manual Details
| Brand | Analog Devices |
|---|---|
| Pages | 14 |
| File Size | 321.27 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required operating voltage range?
The ADXL326 supports single-supply operation from 1.8 V to 3.6 V.
How can I adjust the signal bandwidth?
Bandwidth is selected using three capacitors (CX, CY, CZ) connected at the X, Y, and Z pins respectively.
What are the axes' available bandwidth ranges?
X/Y axes range from 0.5 Hz to 1600 Hz, while the Z axis ranges from 0.5 Hz to 550 Hz.
Does this sensor survive extreme shocks?
Yes, it features 10,000 g shock survival from motion, shock, or vibration.
