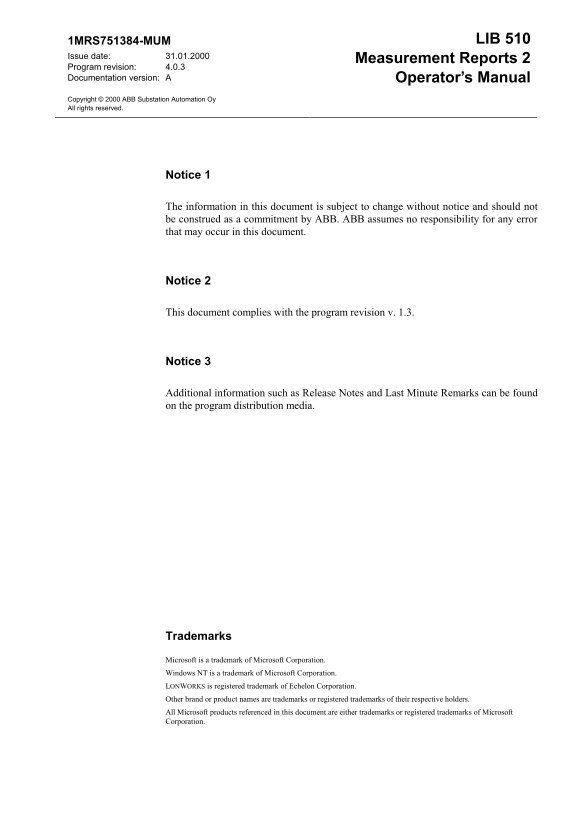

Page 1
1MRS751384-MUM LIB 510 Issue date: 31.01.2000 Measurement Reports 2 Program revision: 4.0.3 Documentation version: Operator’s Manual Copyright © 2000 ABB Substation Automation Oy All rights reserved. ...
Page 3
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual Contents Measurement Reports 2 ....................................................................5 1.1 Overview and Description 1.2 Fea...
Page 4
LIB 510 Measurement Reports 2 1MRS751384-MUM Operator’s Manual 4.2.1General ..........................................................................................26 4.2.2Tools Menu ..................
Page 5
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 1 Measurement Reports 2 1 Measurement Reports 2 1.1 Overview and Description The Measurement Reports 2 is used within LIB 500 Application...
Page 6
LIB 510 Measurement Reports 2 1MRS751384-MUM 1 Measurement Reports 2 Operator’s Manual The Measurement Reports 2 supports the following time related reports: • Hourly report (time resolution: 3 minute...
Page 7
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 1 Measurement Reports 2 • User specific definitions enabled • Base period interval configurable: 15, 30 or 60 minutes • History length fo...
Page 9
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 2 General Description of Reports 2 General Description of Reports 2.1 Overview and Description Figure 1. Example of Daily Report picture ...
Page 10
LIB 510 Measurement Reports 2 1MRS751384-MUM 2 General Description of Reports Operator’s Manual • Report scale * • Time column • Report columns * • Summary columns * • Tabular presentation • Graphical...
Page 11
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports 3 Functional Description of Reports All the reports can be presented in a tabular or in a graphical f...
Page 12
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports 3.1.2 Tools Menu The tabular form picture has a set of tools, which can be selected either in the too...
Page 13
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports Option Explanation Select Day... Opens the Select Day dialog from which the desired day in the report...
Page 14
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports 3.2.2 Graphical Form Coordinates The horizontal (X) axis of the graphical form coordinates represents...
Page 15
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports Figure 5. The Daily report Tools menu for graphical form ABB Automation
Page 16
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports Option Explanation Select Day... Opens the Select Day dialog from which the desired day in the report...
Page 17
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports 3.3 Functionality Detailed with Dialogs and Options 3.3.1 Scrolling Backward and Forward in the Histo...
Page 18
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports Figure 6. The Select Day dialog 3.3.2 Note Dialog Note marks can be freely added and placed into the ...
Page 19
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports 3.3.3 Editing of Period Values Data included in the daily reports can be corrected or edited with the...
Page 20
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports Figure 8. The editing of period values in the Daily report If the tracing of edited values is enabled...
Page 21
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports The log file can consist of up to 1000 edited events. When the number of the edited events is exceede...
Page 22
LIB 510 Measurement Reports 2 1MRS751384-MUM 3 Functional Description of Operator’s Manual Reports Figure 10. The Save Report Page to File dialog 3.3.5 Summer Time - Normal Time If Daylight saving fro...
Page 23
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 3 Functional Description of Reports The Y-axis minimum and maximum can be set either by entering new values into the fields or by setting...
Page 25
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 4 Functional Description of Quick Report 4 Functional Description of Quick Report 4.1 Overview In addition to standard time related repor...
Page 26
LIB 510 Measurement Reports 2 1MRS751384-MUM 4 Functional Description of Quick Operator’s Manual Report This chapter describes the functionality of the Quick report picture. Generally, the Quick repor...
Page 27
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 4 Functional Description of Quick Report 4.2.2 Tools Menu Figure 14. The Quick report tabular form Toolbar Figure 15. The Quick report To...
Page 28
LIB 510 Measurement Reports 2 1MRS751384-MUM 4 Functional Description of Quick Operator’s Manual Report Option Explanation Select Day... Opens the Select Day dialog from which desired day in the repor...
Page 29
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 4 Functional Description of Quick Report Figure 17. The Quick report Tools menu for graphical form ABB Automation
Page 30
LIB 510 Measurement Reports 2 1MRS751384-MUM 4 Functional Description of Quick Operator’s Manual Report Option Explanation Select Day... Opens the Select Day dialog from which desired day in the repor...
Page 31
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual 4 Functional Description of Quick Report 4.4.1 Report Basket Figure 18. The Report basket The report basket is the link between the repor...
Page 32
LIB 510 Measurement Reports 2 1MRS751384-MUM 4 Functional Description of Quick Operator’s Manual Report 4.4.2 Preconfigurations All the selected report objects that are currently shown in the Quick re...
Page 33
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual Index ASCII file............................................................................................................................
Page 34
LIB 510 Measurement Reports 2 1MRS751384-MUM Operator’s Manual log file manually entered values 11, 13, 26 Measured objects (MS, MM, MN, MX and MP) * measurements MMI Monthly report......................
Page 35
1MRS751384-MUM Measurement Reports 2 LIB 510 Operator’s Manual X-axis times X-monitor Y-axis maximum.......................................................................................................
