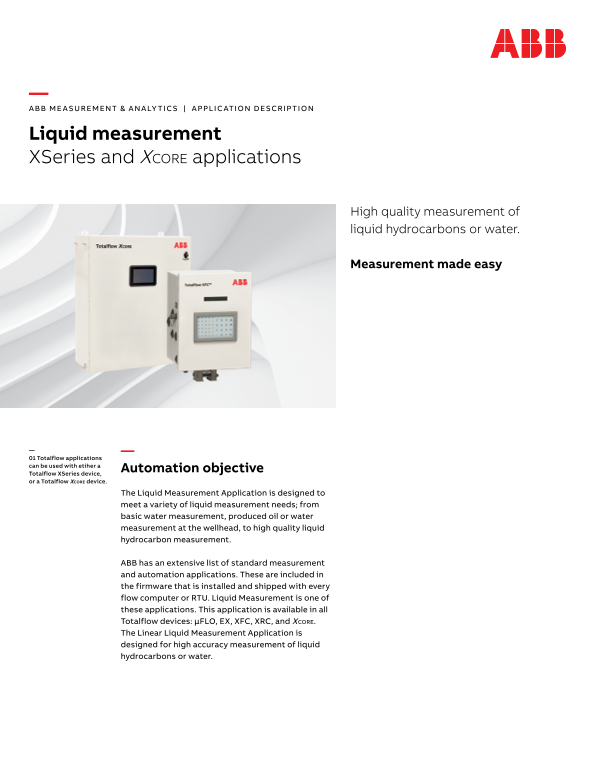

Liquid measurement XSeries and Xcore applications
High quality measurement of liquid hydrocarbons or water.
Measurement made easy
01 Totalflow applications can be used with etiher a
Automation objective
Totalflow XSeries device, or a Totalflow Xcore device.
The Liquid Measurement Application is designed to meet a variety of liquid measurement needs; from basic water measurement, produced oil or water measurement at the wellhead, to high quality liquid hydrocarbon measurement.
ABB has an extensive list of standard measurement and automation applications. These are included in the firmware that is installed and shipped with every flow computer or RTU. Liquid Measurement is one of these applications. This application is available in all Totalflow devices: µFLO, EX, XFC, XRC, and Xcore. The Linear Liquid Measurement Application is designed for high accuracy measurement of liquid hydrocarbons or water.
