ABB ACS-CHK- x3 Installation Guide

Summary

Optimize your motor control system with ACS-CHK input/output chokes designed for ACS 100/140 frequency converters. This guide provides critical technical information on selecting and safely installing these components, ensuring maximum protection against voltage spikes and line current harmonics. Using chokes minimizes leakage currents and safeguards both the frequency converter's internal circuitry and your motor. Essential reading for qualified electricians and automation engineers needing a comprehensive understanding of installation procedures, safety protocols, and product selection parameters (e.g., supply voltage, cable length).

📄 Preview ‹ PAGE OF 12 ›

‹

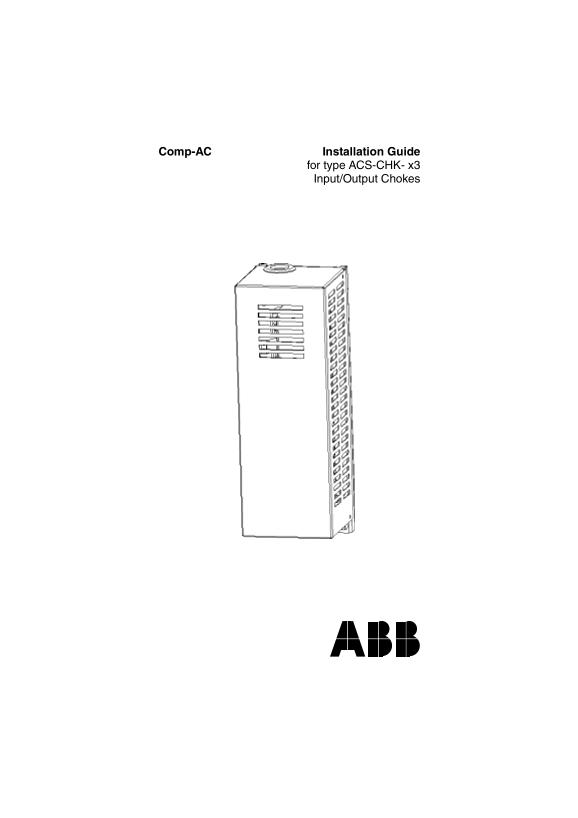

ABB ACS-CHK- x3 Installation Guide - Page 1

›

Page 1 Text Content

Comp-AC Installation Guide

for type ACS-CHK- x3 Input/Output Chokes

Page Summary Contents For ABB ACS-CHK- x3 Installation Guide

Page 1 Comp-AC Installation Guide for type ACS-CHK- x3 Input/Output Chokes

Page 3 Safety Warning! All electrical installation and maintenance work on the choke units should be carried out by a qualified electrician. Warning! Do not attempt any work on a powered ACS 100/140. Before ...

Page 4 A Product Overview This guide contains information necessary for the selection and use of input/ output chokes for the ACS 100/140 frequency converters. Input chokes reduce line current harmonics and ...

Page 5 B Specifications Type Series and Technical Data Inductance Current Voltage Weight Chokes (m H) (A) (V) (kg) ACS-CHK-A3 4.0 4.0 3.2 ACS-CHK-B3 1.5 8.0 4.0 ACS-CHK-C3 0.8 14.0 4.0 Enclosure rating IP20 ...

Page 6 C Removing and replacing the cover Opening the cover: 1. Open the screw. 2. Lift the cover off. Closing the cover: 1. Hook the cover edge to the slot on the top of the frame. (See detailed view below....

Page 7 D Installing the ACS-CHK-x3 Install the ACS-CHK-x3 vertically on a solid non-inflammable surface. Chokes have been designed to cool by natural convection. Because of this leave 50 mm free space around...

Page 8 Figure B

Page 9 Installing the ACS-CHK-x3 as an output choke The following circuit diagram illustrates how chokes are used as output chokes. (See A Product Overview) Note! Do not use the upper cable clamp when a chok...

Page 10 E Product Conformity The ACS-CHK -x3 complies with the requirements of the European Low Voltage Directive 73/23/EEC with amendments. A list of main standards are available on request. Standard IEC 610...

Page 12 ffe ct iv e: 7. 4. In du st ry ub je ct to ha ng ith ou t p ri or ot ic e. ABB Industry Oy P.O.BOX 184 00381 Helsinki FINLAND Telephone +358-10-22 2000 Telefax +358-10-22 22681

Manual Details

Brand	ACS
Pages	12
File Size	131.63 KB
Published	May 12, 2026

143 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the maximum acceptable temperature for the wall attachment?

The maximum temperature of the wall attachment may reach +90 °C (ambient temperature +40 °C).

What is the function of input and output chokes in an ACS 100/140 system?

Input chokes reduce line current harmonics, while output chokes protect the motor by reducing voltage spikes and decreasing current leakages.
