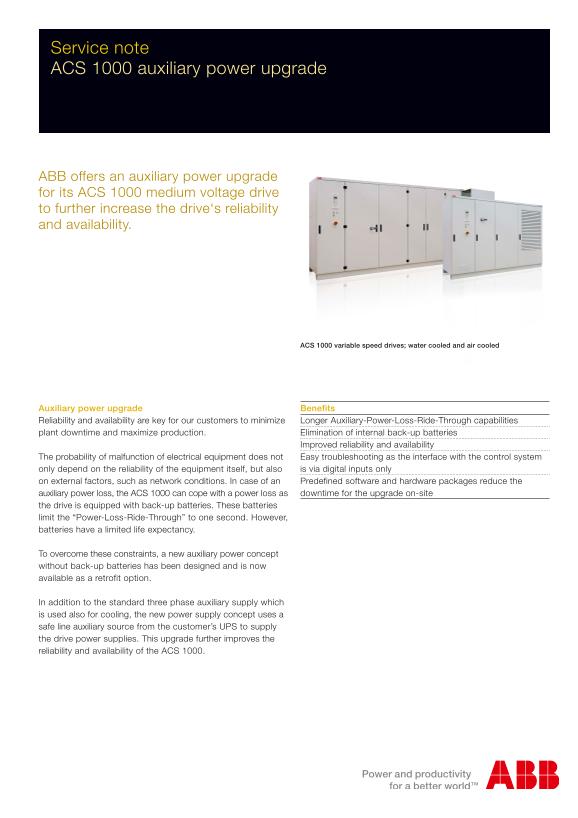

Service note ACS 1000 auxiliary power upgrade
ABB offers an auxiliary power upgrade for its ACS 1000 medium voltage drive to further increase the drive‘s reliability and availability.
ACS 1000 variable speed drives; water cooled and air cooled
Auxiliary power upgrade Benefits Reliability and availability are key for our customers to minimize Longer Auxiliary-Power-Loss-Ride-Through capabilities plant downtime and maximize production. Elimination of internal back-up batteries
Improved reliability and availability
The probability of malfunction of electrical equipment does not Easy troubleshooting as the interface with the control system only depend on the reliability of the equipment itself, but also is via digital inputs only on external factors, such as network conditions. In case of an Predefined software and hardware packages reduce the auxiliary power loss, the ACS 1000 can cope with a power loss as downtime for the upgrade on-site the drive is equipped with back-up batteries. These batteries limit the “Power-Loss-Ride-Through” to one second. However, batteries have a limited life expectancy.
To overcome these constraints, a new auxiliary power concept without back-up batteries has been designed and is now available as a retrofit option.
In addition to the standard three phase auxiliary supply which is used also for cooling, the new power supply concept uses a safe line auxiliary source from the customer’s UPS to supply the drive power supplies. This upgrade further improves the reliability and availability of the ACS 1000.
