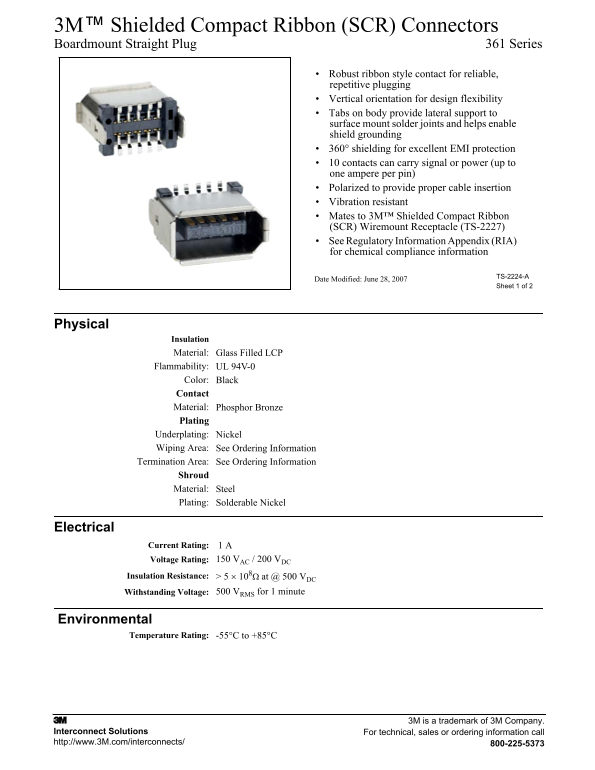

Page 1 Text Content
3M™ Shielded Compact Ribbon (SCR) Connectors Boardmount Straight Plug 361 Series
Robust ribbon style contact for reliable, repetitive plugging Vertical orientation for design flexibility Tabs on body provide lateral support to surface mount solder joints and helps enable shield grounding 360° shielding for excellent EMI protection 10 contacts can carry signal or power (up to one ampere per pin) Polarized to provide proper cable insertion Vibration resistant Mates to 3M™ Shielded Compact Ribbon (SCR) Wiremount Receptacle (TS-2227) See Regulatory Information Appendix (RIA) for chemical compliance information
TS-2224-A
Date Modified: June 28, 2007
Sheet 1 of 2
Physical
Insulation Material: Glass Filled LCP Flammability: UL 94V-0 Color: Black Contact Material: Phosphor Bronze Plating Underplating: Nickel Wiping Area: See Ordering Information Termination Area: See Ordering Information Shroud Material: Steel Plating: Solderable Nickel
Electrical
Current Rating: 1 A
Voltage Rating: 150 VAC / 200 VDC
Insulation Resistance: > 5 × 108Ω at @ 500 VDC
Withstanding Voltage: 500 VRMS for 1 minute
Environmental
Temperature Rating: -55°C to +85°C
3M 3M is a trademark of 3M Company. Interconnect Solutions For technical, sales or ordering information call http://www.3M.com/interconnects/ 800-225-5373
