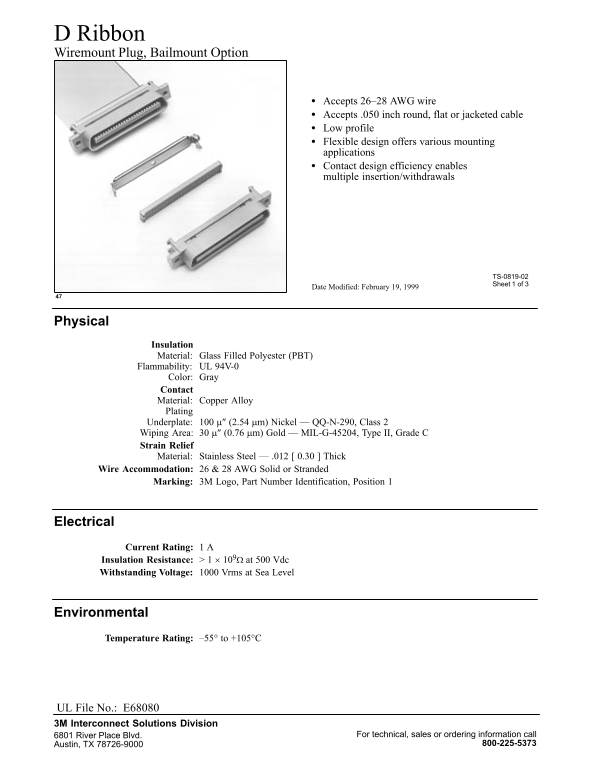

D Ribbon Wiremount Plug, Bailmount Option
Accepts 26–28 AWG wire Accepts .050 inch round, flat or jacketed cable Low profile Flexible design offers various mounting applications Contact design efficiency enables multiple insertion/withdrawals
TS-0819-02 Sheet 1 of 3Date Modified: February 19, 1999
Physical
Insulation Material: Glass Filled Polyester (PBT) Flammability: UL 94V-0 Color: Gray Contact Material: Copper Alloy Plating Underplate: 100 µ″ (2.54 µm) Nickel — QQ-N-290, Class 2 Wiping Area: 30 µ″ (0.76 µm) Gold — MIL-G-45204, Type II, Grade C Strain Relief Material: Stainless Steel — .012 [ 0.30 ] Thick
Wire Accommodation: 26 & 28 AWG Solid or Stranded
Marking: 3M Logo, Part Number Identification, Position 1
Electrical
Current Rating: 1 A Insulation Resistance: > 1 × 109Ω at 500 Vdc Withstanding Voltage: 1000 Vrms at Sea Level
Environmental Temperature Rating: –55° to +105°C
UL File No.: E68080 3M Interconnect Solutions Division
6801 River Place Blvd. For technical, sales or ordering information call
Austin, TX 78726-9000 800-225-5373
