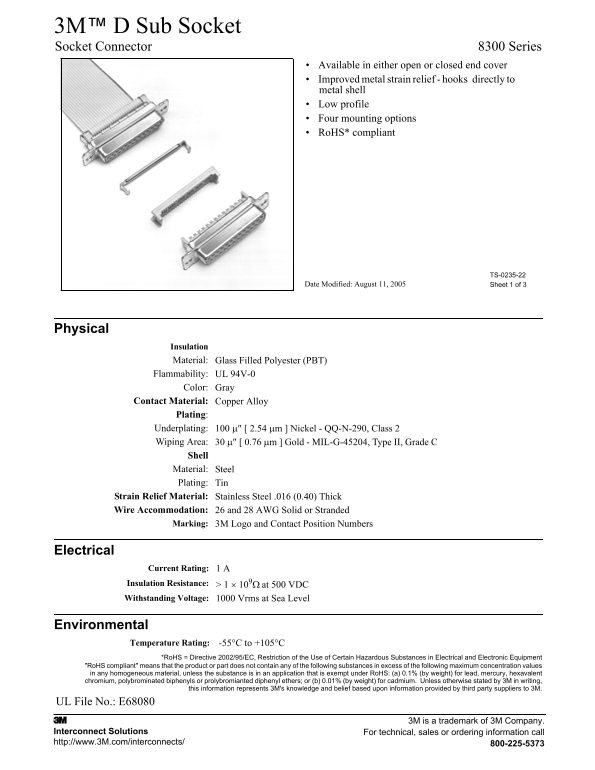

3M™ D Sub Socket Socket Connector 8300 Series
Available in either open or closed end cover Improved metal strain relief - hooks directly to metal shell Low profile Four mounting options Ro HS* compliant
TS-0235-22
Date Modified: August 11, 2005 Sheet 1 of 3
Physical
Insulation Material: Glass Filled Polyester (PBT) Flammability: UL 94V-0 Color: Gray
Contact Material: Copper Alloy
Plating: Underplating: 100 µ″ [ 2.54 µm ] Nickel - QQ-N-290, Class 2 Wiping Area: 30 µ″ [ 0.76 µm ] Gold - MIL-G-45204, Type II, Grade C Shell Material: Steel Plating: Tin
Strain Relief Material: Stainless Steel .016 (0.40) Thick Wire Accommodation: 26 and 28 AWG Solid or Stranded
Marking: 3M Logo and Contact Position Numbers
Electrical
Current Rating: 1 A Insulation Resistance: > 1 × 109Ω at 500 VDC Withstanding Voltage: 1000 Vrms at Sea Level
Environmental
Temperature Rating: -55°C to +105°C *Ro HS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"Ro HS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values in any homogeneous material, unless the substance is in an application that is exempt under Ro HS: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or prolybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080 3M 3M is a trademark of 3M Company. Interconnect Solutions For technical, sales or ordering information call http://www.3M.com/interconnects/ 800-225-5373
