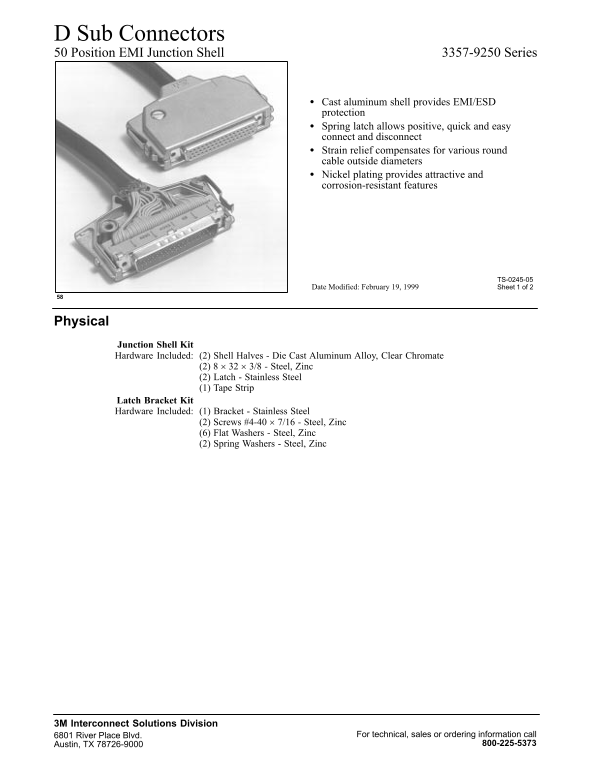

D Sub Connectors 50 Position EMI Junction Shell 3357-9250 Series
Cast aluminum shell provides EMI/ESD protection Spring latch allows positive, quick and easy connect and disconnect Strain relief compensates for various round cable outside diameters Nickel plating provides attractive and corrosion-resistant features
TS-0245-05 Sheet 1 of 2Date Modified: February 19, 1999
Physical
Junction Shell Kit Hardware Included: (2) Shell Halves - Die Cast Aluminum Alloy, Clear Chromate
(2) 8 × 32 × 3/8 - Steel, Zinc (2) Latch - Stainless Steel (1) Tape Strip
Latch Bracket Kit Hardware Included: (1) Bracket - Stainless Steel
(2) Screws #4-40 × 7/16 - Steel, Zinc (6) Flat Washers - Steel, Zinc (2) Spring Washers - Steel, Zinc
3M Interconnect Solutions Division
6801 River Place Blvd. For technical, sales or ordering information call
Austin, TX 78726-9000 800-225-5373
