WHIRLPOOL AKR3200 IX Decorative Hood Installation Manual & User Guide

Summary

Essential guide for safe installation, efficient operation, and comprehensive maintenance of the Whirlpool Decorative Cooker Hood. This manual provides clear instructions designed for domestic users to ensure peak performance while eliminating kitchen fumes using ducted mode. Discover detailed steps covering proper setup, regular filter cleaning, essential safety warnings, and troubleshooting tips, guaranteeing the longevity and optimal function of your range hood in your home kitchen.

📄 Preview ‹ PAGE OF 14 ›

‹

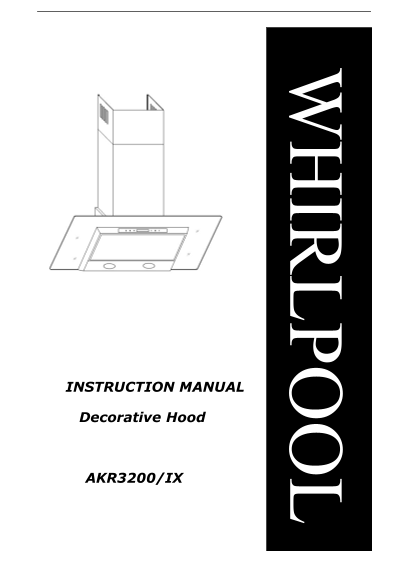

WHIRLPOOL AKR3200 IX Decorative Hood Installation Manual & User Guide - Page 1

›

Page 1 Text Content

INSTRUCTION MANUAL

Decorative Hood

AKR3200/IX

Page Summary Contents For WHIRLPOOL AKR3200 IX Decorative Hood Installation Manual & User Guide

Page 1 INSTRUCTION MANUAL Decorative Hood AKR3200/IX

Page 2 Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. CONTENTS ...

Page 3 * Only a qualified and trained service technician can undertake the work of installation and servicing. * Check that the mains voltage corresponds to the one indicated on the rating plate fixed inside...

Page 4 on its correct usage. MAINTENANCE * Proper maintenance of the Range Hood will assure proper performance of the unit. * Disconnect the hood from the main supply before carrying out any maintenance work...

Page 5 person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. * There shall be adequate ventilation of the room when the range hood is used at ...

Page 7 COMPONENTS Ref Qty Components 1 1pcs Grease filter 2 1pcs Hood body 3 2pcs steel bolt 4 3pcs Cross self-drill bolt 5 1pcs Exhaust 6 1pcs Exterior chimney 7 1pcs Inner chimney 8 2pcs Cross discal threa...

Page 8 1. Drill the holes according to the distances indicated (Fig.2). 2. Fix the appliance to the wall and align it in horizontal position to the wall units. 3. When the appliance has been adjusted, fix th...

Page 9 Fig.4 Fig.5 DUCT FIXING Caution: To reduce the risk of fire, recommend use aluminium ductwork. 1. Attach an adequate length of φ150mm round duct into the recessed area of the air outlet adapter. 2. Th...

Page 10 Caution: To reduce the risk of fire, use metal ductwork only. 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most ...

Page 11 OPERATION OF CONTROLS A= Filtering system / Set clock B= Delay Timer C= Speed S1/ “-” adjust / off D= Digital display E= Speed S1/ “+” adjust / off F= Alarm G= Light When the Key A is flashing, at the...

Page 12 4. Press ‘C’ / ‘E’ to change the speed of operation when timer stops blinking。 5. Press “F” to set the working time. Press it for 3 seconds, the clock “ ”on the digital display will flash and then pre...

Page 13 2. Bulbs may be hot. Take care while replacing. Replace lamp 1. Take off the cap by a screw driver. 2. Remove the metal ring 3. Replace the bulb with a 20 watt halogen light. We recommend only using l...

Page 14 to remain in contact with aluminum finish for extended periods. Many of these compounds contain chemicals that may be harmful. Rinse with water after exposure and wipe dry with a clean cloth. * Painte...
