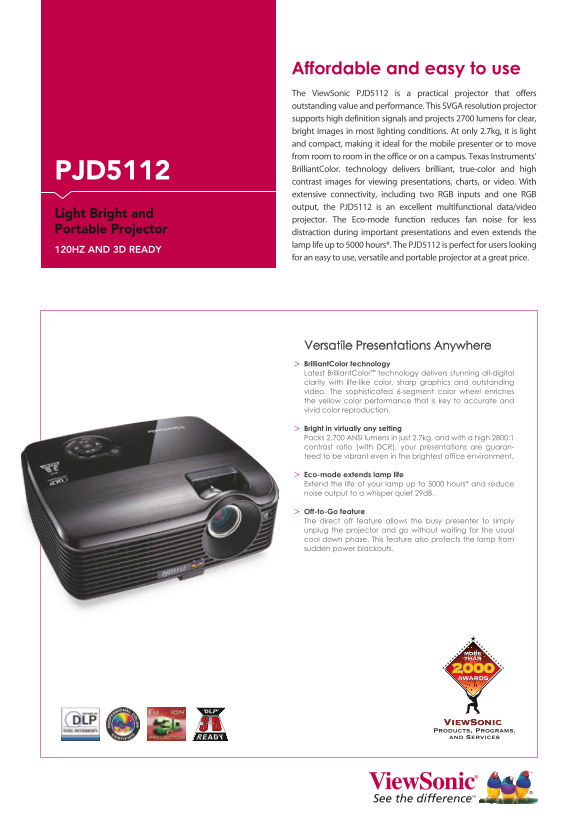

ViewSonic PJD5112 User Guide (2) - Specifications

PJD5112

Affordable and easy to use The View Sonic PJD5112 is a practical projector that offers LIGHT, BRIGHT AND PORTABLE PROJECTOR outstanding value and performance. This SVGA resolution projector supports high definition signals and projects 2700 lumens for clear,

Model No. VS12618

bright images in most lighting conditions. At only 2.7kg, it is light

DISPLAY Type 1.4cm/ 0.55" Digital Micromirror Device(DLP™)

and compact, making it ideal for the mobile presenter or to move

Resolution SVGA 800×600(Native) / UXGA 1600×1200(compressed) from room to room in the office or on a campus. Texas Instruments’ Lens 1.2× Manual optical zoom / Manual optical focus Keystone Vertical digital keystone correction:+/- 40 degrees

Brilliant Color. technology delivers brilliant, true-color and high

PJD5112 Display Size(diagonal) 68.5cm/ 27" - 762cm/ 300"

contrast images for viewing presentations, charts, or video. With

Throw Distance 1.2m-10m extensive connectivity, including two RGB inputs and one RGB Throw Ratio 1.6-1.9 Lamp 180watt (RLC-050)

output, the PJD5112 is an excellent multifunctional data/video

Light Bright and Lamp Life(Normal/ Eco Mode) 3500 / 5000 (hours)

projector. The Eco-mode function reduces fan noise for less

Brigtness 2700 Lumens

Portable Projector distraction during important presentations and even extends the Contrast Ratio 2800:1

Aspect Ratio 4:3 (native) & 16:9

lamp life up to 5000 hours*. The PJD5112 is perfect for users looking

120HZ AND 3D READY AUDIO Speaker 2W ×1

for an easy to use, versatile and portable projector at a great price.

INPUT SIGNAL Computer and video NTSC M(3.58MHz), 4.43MHz, PAL(B, D, G, H, I, M, N, 60), SD 480i

and 576i(24fps, 25fps and 30fps), ED 480p and 576p(24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps)

Frequency Fh:31-100KHz, Fv:50-120Hz COMPATIBILITY PC VGA to UXGA Mac Up to 1152 × 864 (may require Mac Adapter) CONNECTOR RGB Input 2 × 15-pin mini D-sub RGB Output 1 × 15-pin mini D-sub Composite Input 1 × RCA jack Versatile Presentations Anywhere S-Video Input 1 × 4-pin mini-DIN Audio Input 1 × 3.5mm mini jack

Brilliant Color technology Audio Output 1 × 3.5mm mini jack Latest Brilliant Color™ technology delivers stunning all-digital Control 1 × RS-232 (8 Pin Mini-Din) clarity with life-like color, sharp graphics and outstanding >Replacement lamp ..........................RLC-050 USB 1× TYPE B (Firmware upgrade)

video. The sophisticated 6-segment color wheel enriches >Wireless presentation gateway .....WPG-350 Power Output 12V DC Connector the yellow color performance that is key to accurate and >Ceiling mount ..................................WMK-018

POWER Voltage 90~240VAC (Auto Switching), 50 / 60Hz (universal)

>Soft case .....................................PJ-CASE-001

vivid color reproduction. Power Consumption 235W (Typical) / <1W (Stand-by mode)

LANGUAGE English/ Dutch/French/ Spanish/Italian/ Korean/

Bright in virtually any setting Thai/ Portuguese/ T. Chines/ S. Chinese/ Japanese/ Russian / Packs 2,700 ANSI lumens in just 2.7kg, and with a high 2800:1 German/ Swedish/ Turkish/ Finnish/ Polish

contrast ratio (with DCR), your presentations are guaran- 4 : 3 Screen

Projection Screen Size CONTROLS Basic POWER, Keystone/ Arrow keys, Left/ BLANK, MENU/ EXIT, Right/

teed to be vibrant even in the brightest office environment.

Wide Tele Panel key lock, AUTO, MODE/ ENTER, SOURCE

M feet m inch m inch OSD Picture: Brightness, contrast, color setting, keystone, aspect Eco-mode extends lamp life 1.5 4.92 1.17 46.14 0.99 39

ratio, image, white intensity, gamma, 3D sync, 3D sync invert.

Extend the life of your lamp up to 5000 hours* and reduce

2 6.56 1.56 61.52 1.32 52 Computer Image: Frequency, tracking, H position, V position.

noise output to a whisper quiet 29d B. 3 9.84 2.34 92.27 1.97 78

Video Image: Saturation, sharpnes, tint.

1.5 4.92 1.17 46.14 0.99 39 Setting: Manu position, projection, signal type, lamp hour,

Off-to-Go feature

lamp hour reset, filter mode, filter hours, filter hours reset, power

The direct off feature allows the busy presenter to simply

saving, auto source, ECO mode, high altitude, OSD timeout.

unplug the projector and go without waiting for the usual

Advance: Blank screen, password word, screen capture, start

cool down phase. This feature also protects the lamp from

up screen, text shot, digital zoom, DCR, close captions, brilliant

sudden power blackouts.

color.

OPERATING Temperature 0ºC-40ºC (32ºF-104ºF) CONDITIONS Humidity 10%-80% (non-condensing)

Altitude 0~1800m (6000ft), operational up to 3048m(10,000ft) at

reduced reliability and performance

NOISE LEVEL Normal / Eco Mode 31d B / 29d B DIMENSIONS Physical 280 × 114 × 218 (mm) / 11 × 4.5 × 8.58 (inch) (W x H x D)

WEIGHT Net 2.66kg(5.86 lb)

REGULATIONS CB, ROHS, WEEE, UL / c UL, FCC-B, ICES-003, NOM, PSB, C-tick,

CE, TUV / GOST-R, Hygienic, UKr SEPRO, CCC

View Sonic Corporation`s QMS & EMS PACKAGE CONTENTS View Sonic projector, power cable, VGA cable, remote control have been registered to

with batteries, lens cap, Quick Start Guide, View Sonic Wizard

ISO 9001 & ISO 14001, respectively,

by the British Standards Institution. CD(with User Guide)
