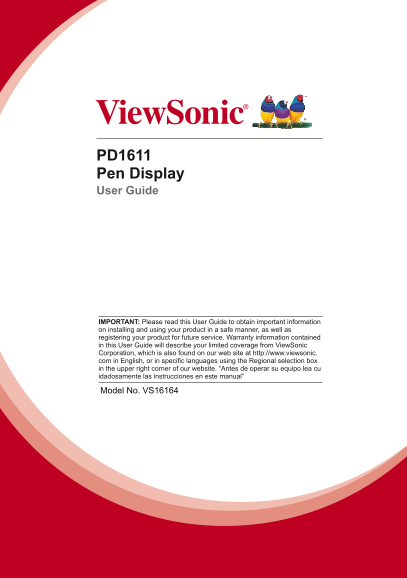

Page 1
PD1611 Pen Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for futu...
Page 2
Thank you for choosing View Sonic With over 25 years as a world leading provider of visual solutions, View Sonic is dedicated to exceeding the world’s expectations for technological evolution, innovat...
Page 3
Compliance Information For U.S.A. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) th...
Page 4
CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. Following information is only for EU-member states: The mark shown to ...
Page 5
Important Safety Instructions 1. DO NOT place objects on top of the device, as objects may scratch the screen. 2. DO NOT expose the device to dirty or dusty environments. 3. DO NOT place the device on...
Page 6
Declaration of Ro HS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain...
Page 7
Copyright Information Copyright © View Sonic® Corporation, 2016. All rights reserved. View Sonic and the three birds logo are registered trademarks of View Sonic Corporation. Disclaimer: View Sonic Co...
Page 8
Contents Compliance Information.............................................................i Important Safety Instructions ................................................... iii Declaration of Ro HS...
Page 9
1. Introduction 1.1 Packing list After unpacking, please confirm whether the following contents are included: Electromagnetic pen display Electromagnetic pen display support Power adapter USB ...
Page 10
1.2.2 Rear view ⑦ Pen slot ⑧ Pen rope hole (×2) ⑨ Lock hole (×2) ⑩ USB output interface 11 Power interface Note: please don't open the enclosure, which exists electric shock hazard. Please contact wit...
Page 11
2. Installation and Setting 2.1 Install driver Connect the device and PC/NB with attached USB cable and plug in the power adapter, as shown below. 2.1.1 Install Display Link display adapter driver and...
Page 12
2.1.2 Install handwriting driver 1) Open the driver disk, click and install [viewsonic-xx.exe] at Windows, Pen Display Manager will appear on the start page immediately. 2) Then, complete all steps as...
Page 13
3) You must reboot the computer after the installation is completed. 2.2 Set the display area Windows 7 and Windows 8 setting environments Press [Start] icon, open [Control panel], enter into [Display...
Page 14
2.3 Handwriting area correspondence 1) Select the image on the bottom right hand corner to enter the setting. 2) Under “Pen” tab, adjust the tip feel from soft to firm. 3) Under the “Mapping” tab, set...
Page 15
2.4 More touch settings Windows 7/8 system is equipped with other touch functions. All settings in this chapter are based on this system. 2.4.1 Pen and touch Click [Start] icon → [Control panel] → [Pe...
Page 16
2.4.2 Tablet PC setting Click [Start] icon → [Control panel] → [Tablet PC setting] → click [Other] tab → click [Go to input panel setting]. These settings can be used to customize the following input ...
Page 17
3. Troubleshooting 3.1 Screen problems Problems Recommended actions No picture * Check whether USB cables at computer end and screen end are connected properly. * Try to use another USB interface of t...
Page 18
3.2 Problems of interactive electromagnetic pen Problems Recommended actions Electromagnetic * Try to confirm by mouse. If the mouse does not work, pen does not please reboot the computer or the appli...
Page 19
4. Product Specification 4.1 Screen Display Model 15.6 inch TFT LCD, LED backlight Resolution 1366 x 768 Brightness 220 cd/m2 (Typ.) / 200 cd/m2 (Min) Angle of visibility Horizontal 90°, vertical 130°...
Page 20
4.2 Interactive electromagnetic pen Model Technique Electromagnetic touch Action area Full screen Technical specifications Resolution 5080 LPI (lines per inch) Tracking velocity 250 PPS (dots per seco...
Page 21
5. Appendix 5.1 Replace the pen tip If the pen tip is too short or exists the sharp edge, it can be replaced to the back-up tip. Please replace according to the following steps: 1) Pull out the pen ti...
Page 22
Customer Support For technical support or product service, see the table below or contact your reseller. Note : You will need the product serial number. T = Telephone Country/Region Website Email C = ...
Page 23
Limited Warranty VIEWSONIC® PEN DISPLAY What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If...
Page 24
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
