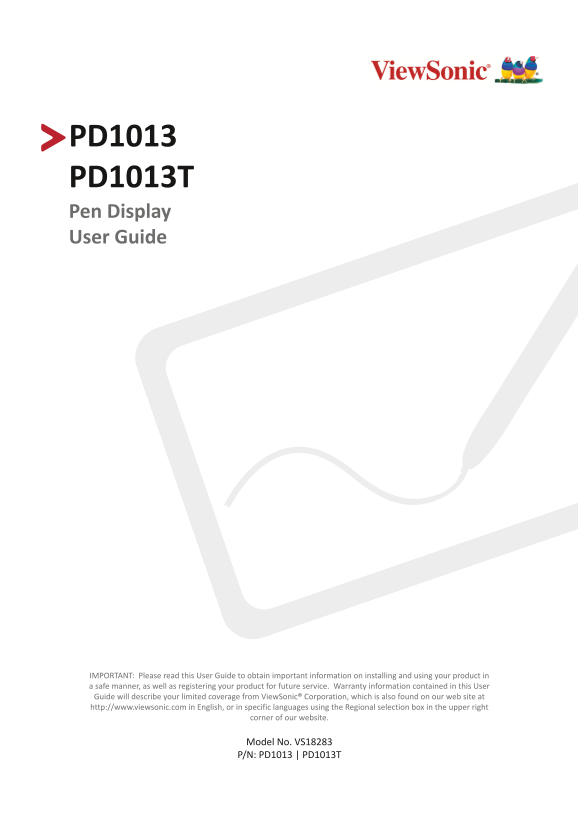

PD1013 PD1013T Pen Display User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from View Sonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website.

Model No. VS18283 P/N: PD1013 | PD1013T

Page Summary Contents For ViewSonic PD1013 Series Electromagnetic Pen Monitor User Guide (English)

Page 1 PD1013 PD1013T Pen Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product ...
Page 2 Thank you for choosing View Sonic® As a world-leading provider of visual solutions, View Sonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplici...
Page 3 Safety Precautions Please read the following Safety Precautions before you start using the device. • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instru...
Page 4 Contents Safety Precautions ....................................................... Introduction ................................................................ Package Contents ........................
Page 5 Regulatory and Service Information .......................... Compliance Information .......................................................................................23 FCC Compliance Statement ...
Page 6 Introduction Package Contents USB 2.0, 2 in 1 Replacement Pen Pen Display Y-cable (Micro USB Pen nib x 3 to Type A x 2) AC/DC Power Pen tether Nib removal tool Screwdriver Adapter 5V/2A PD1013 Pen Dis...
Page 7 Product Overview 1. Micro USB Port 2. Pen Tether 3. Pen Holder 4. Wall Mounting 5. Display Screen/ Anchor Point Points Touch Screen¹ 6. Security Lock 7. Adjustable 8. Pen 9. Pen Holder 10. Repositiona...
Page 8 Making Connections Installing Drivers and Software System Requirements: Operating system: Windows XP/7/8/10 (32/64 bit) PC I/O: USB 2.0/above Before connecting and using the pen display, it is necessa...
Page 9 Pen Display Driver Pen Display Manager can be used to map the active area and adjust the feel of the pen. 1. Open the View Sign Console installation file and install the driver. 2. After the installat...
Page 10 Connecting the Pen Display 1. Turn the device over so the bottom side is facing up. 2. Plug the Micro USB end of the USB cable into the Micro USB Port on the device. 3. Connect the Main USB A cable to...
Page 11 Using the Display Using the Pen Tether The Pen Tether can be attached to the Pen and to the available anchor point.
Page 12 Using the Touch Function (PD1013T only) The PD1013T can detect up to 10 fingers simultaneously depending on the application. When using the touch function, please note: • The touch function may need a...
Page 13 Adjustable Stand Legs There are three (3) adjustable stand legs on the pen display. This allows for a viewing angle of 0°, 15°, or 20° in portrait orientation; and 0°, 9°, 13° in landscape orientation...
Page 14 Changing to Portrait Orientation In order to use the adjustable stand in portrait orientation, one adjustable stand leg must be unscrewed, rotated, and screwed back into place. Additionally, it is rec...
Page 15 Setting the Display Area After the pen display is connected to the computer, the Display settings will need to be adjusted. To access your computer’s Display settings: • Go to: Start > Settings &gt...
Page 16 Pen Input Area Mapping To set the proper pen input area, 1. Open Pen Display Manager either by going to: Start > View Sonic > Pen Display Manager or selecting the Pen Display Manager icon from t...
Page 17 4. Select the Pen tab to adjust Tip Feel and check the Current Pressure. NOTE:  Tip Feel alters how much actual pressure it takes to achieve maximum pressure. • Soft - requires less actual pressure to...
Page 18 Appendix Specifications Display Item Category Specifications 1280 x 800 LCD, LCD 0.1695 mm x 0.1695 mm pixel pitch Surface Treatment Anti-Glare, Hard-Coating (8H) Resolution Supported 1280 x 800 @ 60H...
Page 19 Product Dimensions 287 mm 14.3 mm 185.6 mm 9.2 mm 129.95 mm
Page 20 Troubleshooting This section describes some common problems that you may experience when using the monitor. Problem or Issue Possible Solutions • Ensure the USB cable is connected properly at both end...
Page 21 Maintenance General Precautions • Make sure the display is turned off and unplugged. • Never spray or pour any liquid directly onto the screen or case. • Handle the display with care. Cleaning the Scr...
Page 22 Replacing a Pen Nib When the pen nib gets too short or develops a sharp edge, it can be replaced with spare nibs. To replace a pen nib: 1. Use the nib removal tool to pull the old nib straight out of ...
Page 23 Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to na...
Page 24 The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates ...
Page 25 • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). • Electrical and electronic components containing lead in a glass or ceramic other than ...
Page 26 Copyright Information Copyright© View Sonic® Corporation, 2021. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are ...
Page 27 Customer Service For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Websit...
Page 28 Limited Warranty View Sonic® Display What the warranty covers: View Sonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to ...
Page 29 • Causes external to the product, such as electric power fluctuations or failure. • Use of supplies or parts not meeting View Sonic’s specifications. • Failure of owner to perform periodic product mai...
Page 30 Exclusion of damages: View Sonic’s liability is limited to the cost of repair or replacement of the product. View Sonic® shall not be liable for: • Damage to other property caused by any defects in th...
Page 31 Mexico Limited Warranty View Sonic® Display What the warranty covers: View Sonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty perio...
Page 32 How to get service: For information about receiving service under warranty, contact View Sonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your p...
Page 33 Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
